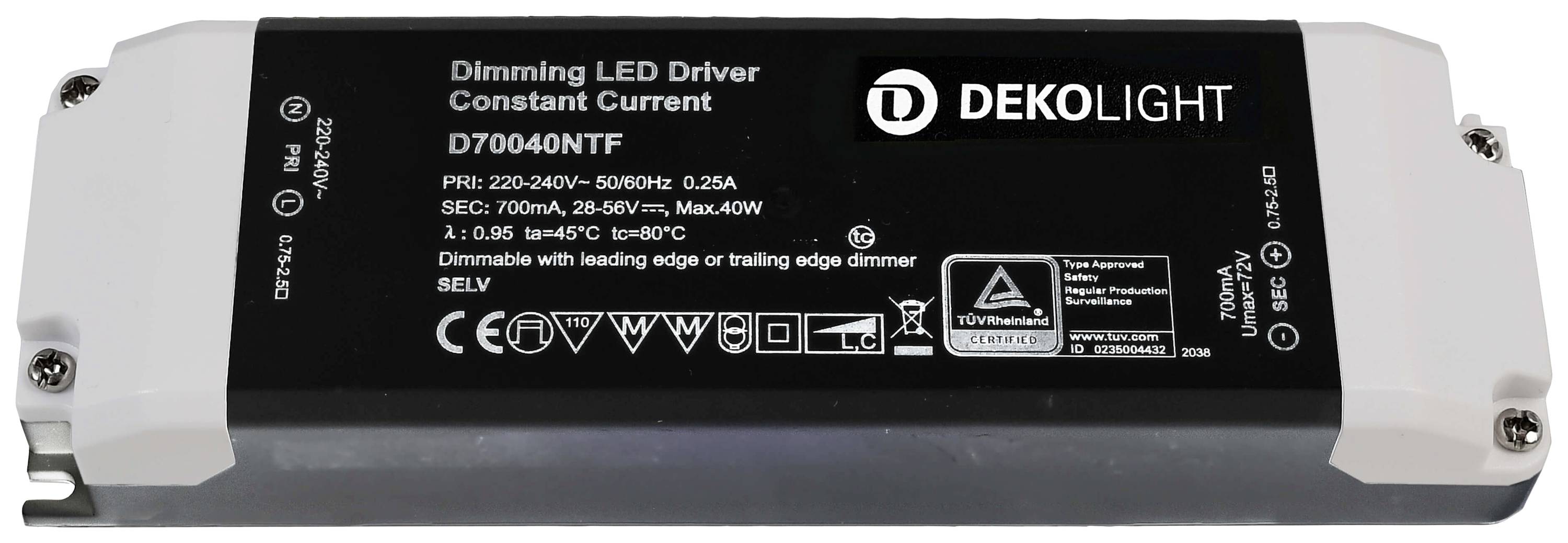

Deko Light BASIC, DIM, CC LED driver Constant current 40 W 700 mA - 0.70 A 28 - 56 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
BASIC, DIM, CC
- Constant current
- 28 - 56 V DC
- 700 mA - 0.70 A
Technical specifications
- Output current: 700 mA
- Activation: Phase forward / phase section
- Material 1: Plastic Durability: 30000 h
- max. Inrush current (A/µs): 5A/300µs
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 166 x 52 x 24 mm
- Factory colour
Black
- Output voltage (max.)
56 V DC
- Output voltage (min.)
28 V DC
- Max. output current
0.70 A
- Output current (max.) - rounded
700 mA
- Protection class
II
- LED driver features
dimmable
IP20
- Connection
Clamp
- Max. power
40 W
- Output current (min.)
700 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
19.60 W
- Power range
19.60 up to 40 W
- Width
52 mm
- Height
24 mm
- Length
166 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795436 Deko Light BASIC, DIM, CC LED driver Constant current 40 W 700 mA - 0.70 A 28 - 56 V DC dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
