Deko Light BASIC, DIM, CC LED driver Constant current 45 W 1050 mA - 1.05 A 22 - 43 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

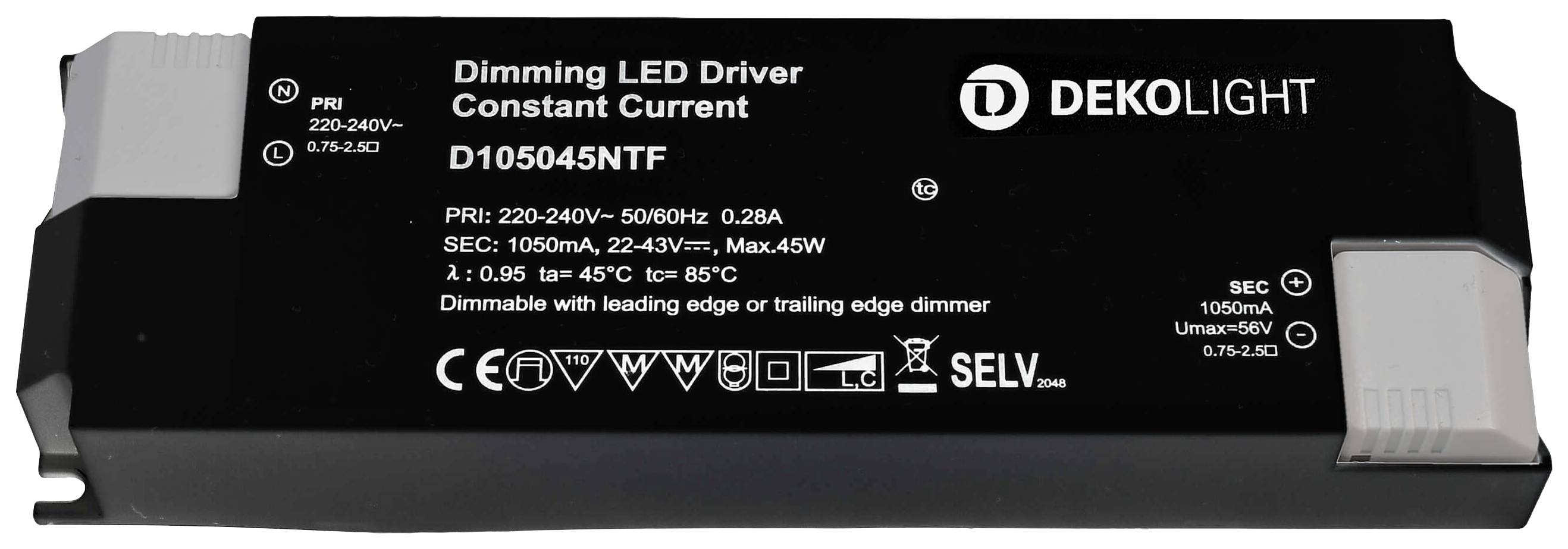

Deco-light LED-power supply, BASIC, DIM, CC, D105045NTF/45W, dimmable
- Constant current
- 22 - 43 V DC
- 1050 mA - 1.05 A
Technical specifications
- Output current: 1050 mA
- Activation: Phase forward / phase section
- Material 1: Plastic Life: 50,000 h
- max. Inrush current (A/µs): 5A/100µs
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 166 x 52 x 25 mm
- Factory colour
Black
- Output voltage (max.)
43 V DC
- Output voltage (min.)
22 V DC
- Max. output current
1.05 A
- Output current (max.) - rounded
1.05 A
- Protection class
II
- LED driver features
dimmable
IP20
- Connection
Clamp
- Max. power
45 W
- Output current (min.)
1050 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
23.50 W
- Power range
23.50 up to 45 W
- Width
52 mm
- Height
25 mm
- Length
166 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795437 Deko Light BASIC, DIM, CC LED driver Constant current 45 W 1050 mA - 1.05 A 22 - 43 V DC dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
