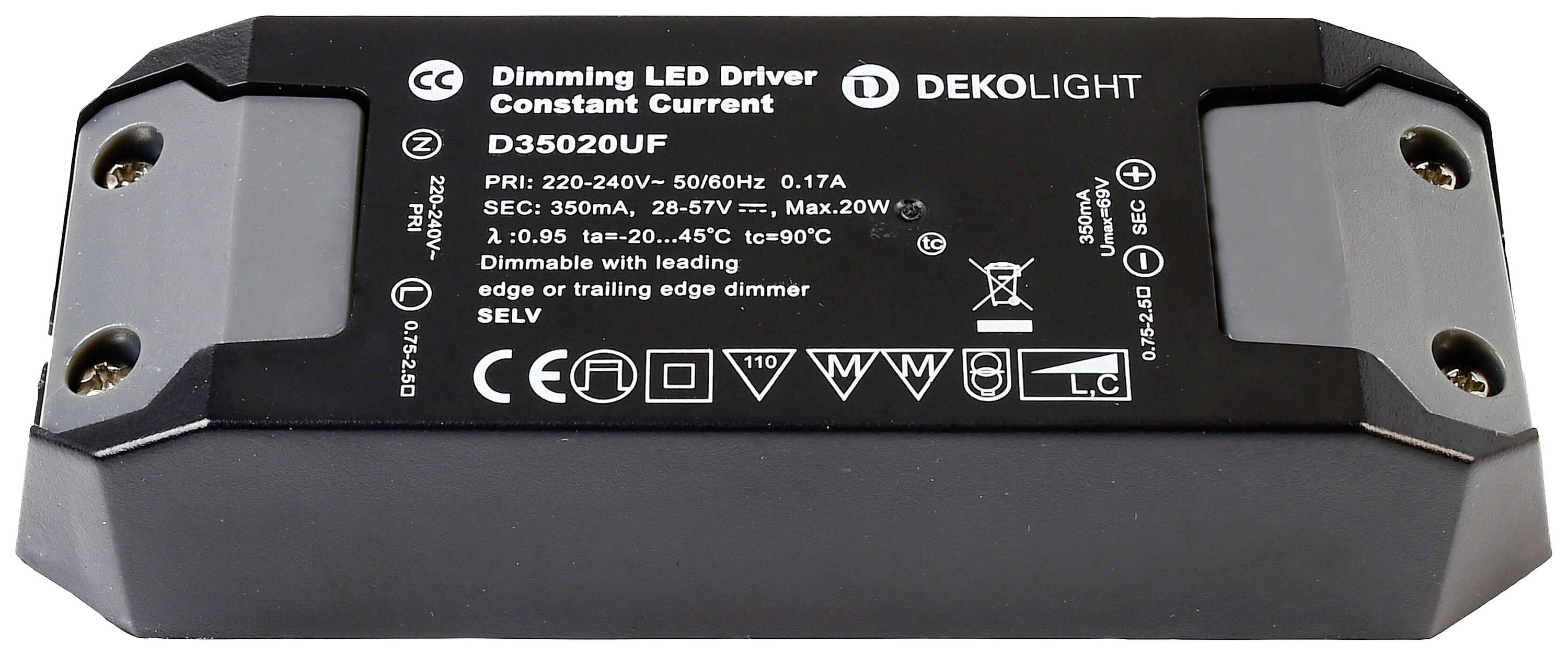

Deko Light Basic DIM CC LED transformer Constant current 20 W 350 mA 28 - 57 V dimmable, Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Deko-Light LED-power supply Basic dimmable
- Constant current
- 28 - 57 V
- 350 mA
Technical specifications
- Product type
LED transformer
- Type
Constant current
- Dim
(L x W x H) 127 x 44 x 28 mm
- Output voltage (max.)
57 V
- Output voltage (min.)
28 V
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Protection class
II
- LED driver features
dimmable
Surge protection
IP20
- Connection
Open cable ends
- Max. power
20 W
- Weight
113 g
- Power (min.)
9.8 W
- Power range
9.8 up to 20 W
- Width
44 mm
- Height
28 mm
- Length
127 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2523541 Deko Light Basic DIM CC LED transformer Constant current 20 W 350 mA 28 - 57 V dimmable, Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2523541 Deko Light Basic DIM CC LED transformer Constant current 20 W 350 mA 28 - 57 V dimmable, Surge protection 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
