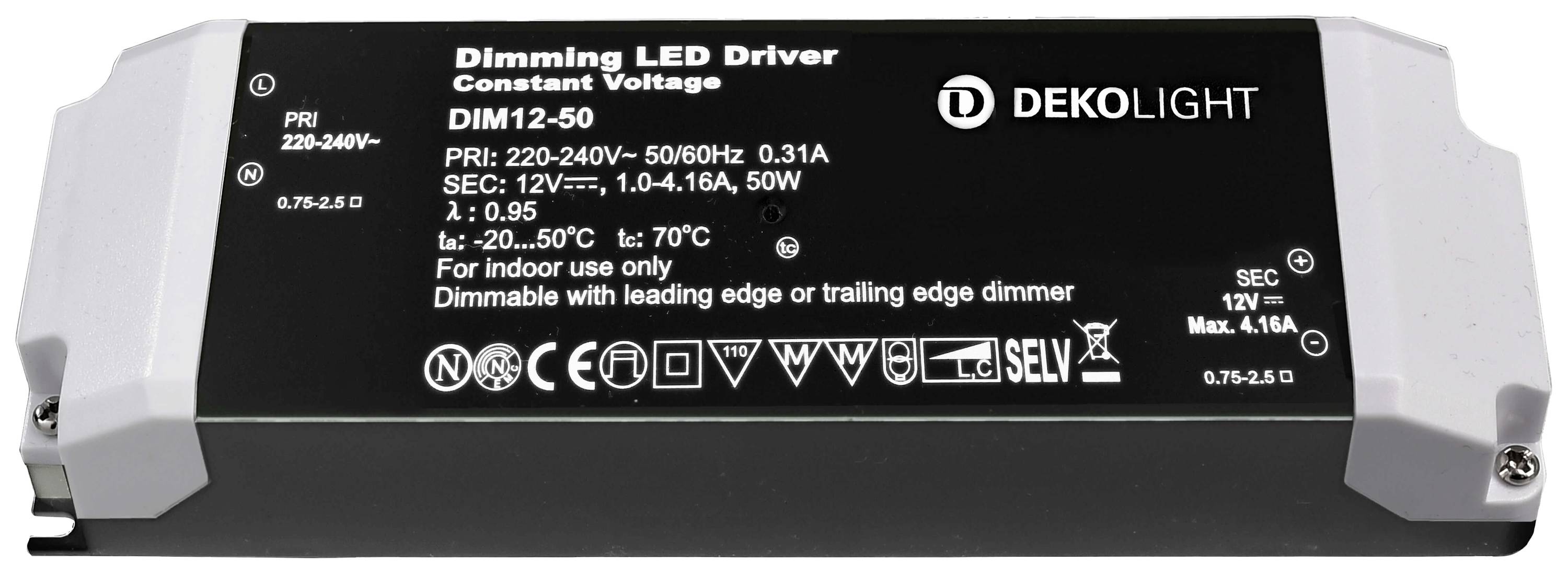

Deko Light BASIC, DIM, CV 12V 12-50W LED driver Constant voltage 50 W 1000 - 4610 mA 12 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
BASIC, DIM, CV 12V 12-50W
- Constant voltage
- 12 V
- 1000 - 4610 mA
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim

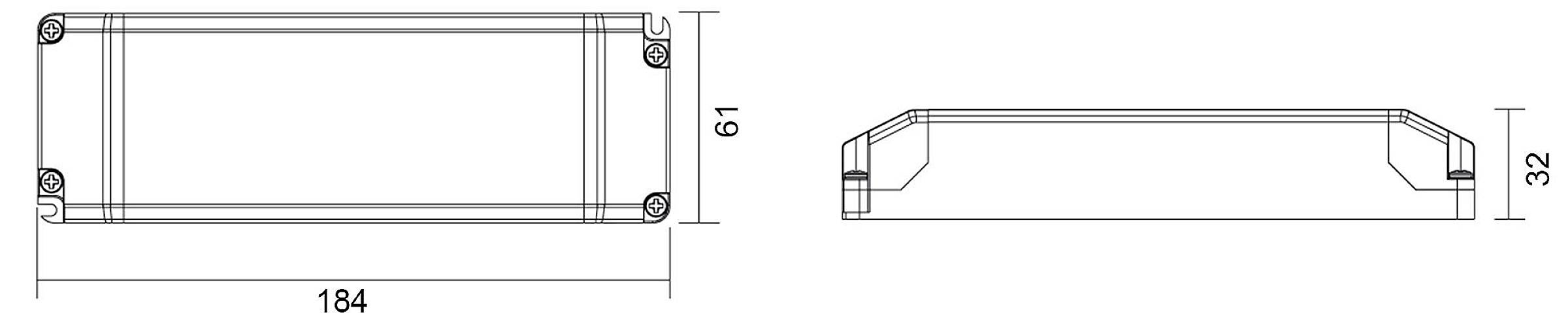

(L x W x H) 184 x 61 x 33 mm
- Factory colour
Black
- Output voltage (max.)
12 V
- Output voltage (min.)
12 V
- Max. output current
4610 mA
- Output current (max.) - rounded
4.61 A
- Protection class
II
- LED driver features
dimmable
IP20
- Connection
Clamp
- Max. power
50 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
1000 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
150 g
- Power (min.)
12 W
- Power range
12 up to 50 W
- Width
61 mm
- Height
33 mm
- Length
184 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2618208 Deko Light BASIC, DIM, CV 12V 12-50W LED driver Constant voltage 50 W 1000 - 4610 mA 12 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618208 Deko Light BASIC, DIM, CV 12V 12-50W LED driver Constant voltage 50 W 1000 - 4610 mA 12 V dimmable 1 pc(s)
Description
Features
- Dimmable with phase on/off-cut dimmersCompact designShort-circuit proofOverload protectionOverheating protectionFlicker-free
- This text is machine translated.
Scope of delivery
- LED power supply BASIC, DIM, CV 12V 12-50W
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
