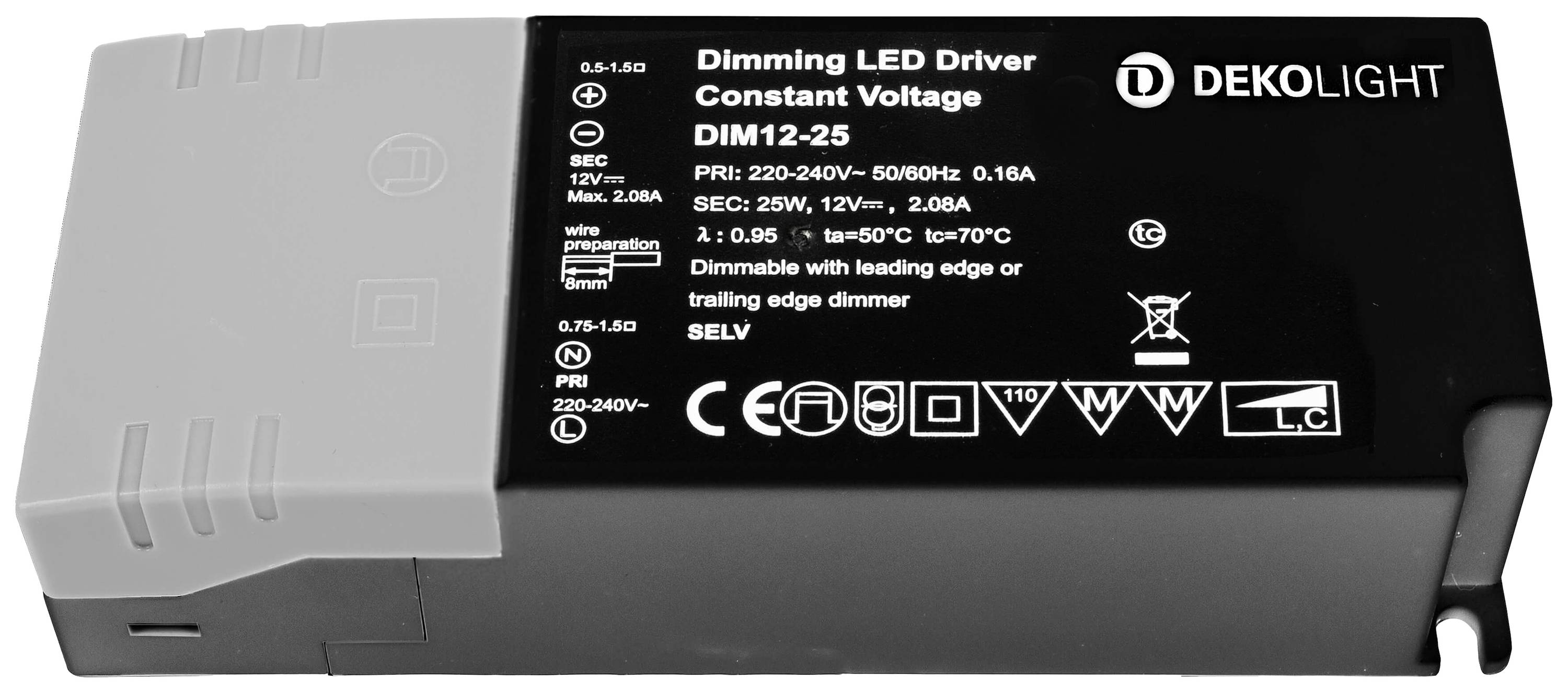

Deko Light BASIC, DIM, CV, 12V 2,5-25W LED driver Constant voltage 25 W 200 - 2080 mA 12 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
BASIC, DIM, CV, 12V 2,5-25W
- Constant voltage
- 12 V
- 200 - 2080 mA
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim

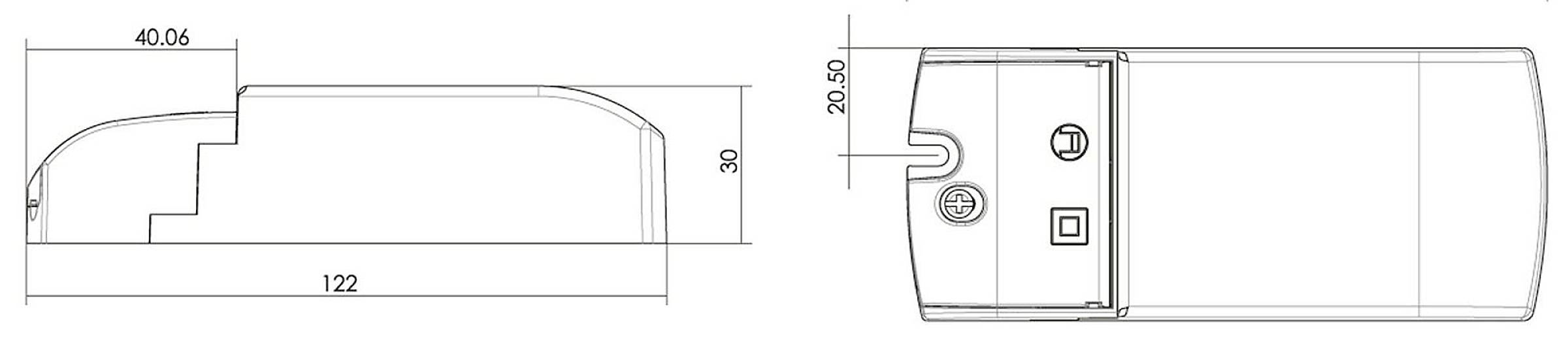

(L x W x H) 122 x 52 x 30 mm
- Factory colour
Black
- Output voltage (max.)
12 V
- Output voltage (min.)
12 V
- Max. output current
2080 mA
- Output current (max.) - rounded
2.08 A
- Protection class
II
- LED driver features
dimmable
IP20
- Connection
Clamp
- Max. power
25 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
200 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
100 g
- Power (min.)
2.5 W
- Power range
2.5 up to 25 W
- Width
52 mm
- Height
30 mm
- Length
122 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2618224 Deko Light BASIC, DIM, CV, 12V 2,5-25W LED driver Constant voltage 25 W 200 - 2080 mA 12 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618224 Deko Light BASIC, DIM, CV, 12V 2,5-25W LED driver Constant voltage 25 W 200 - 2080 mA 12 V dimmable 1 pc(s)
Description
Features
- Dimmable with phase on/off-cut dimmersCompact designShort-circuit proofOverload protectionOverheating protectionFlicker-free
- This text is machine translated.
Scope of delivery
- LED power supply BASIC, DIM, CV, 12V 2,5-25W
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
