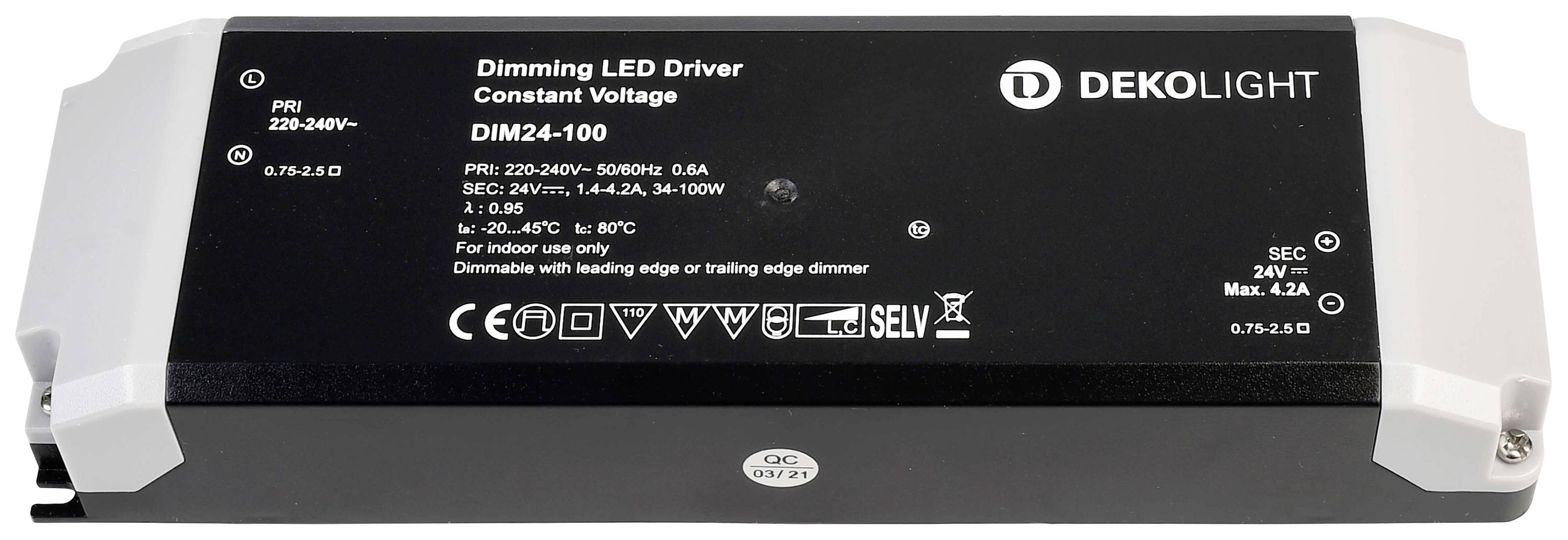

Deko Light BASIC, DIM, CV, 24V 34-100W LED driver Constant voltage 100 W 1420 - 4165 mA 24 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Decorative Light LED power supply, BASIC, DIM, CV, 24V 34-100W
- Constant voltage
- 24 V
- 1420 - 4165 mA
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim

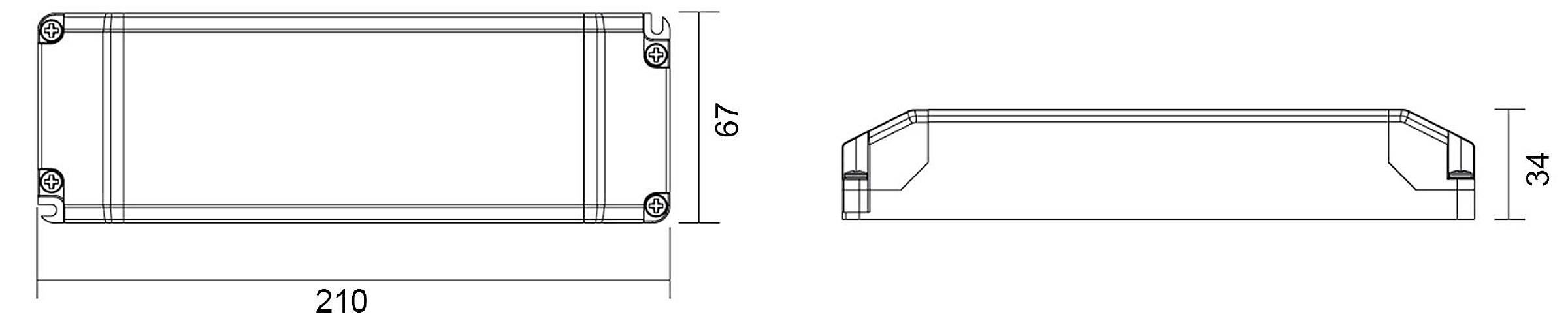

(L x W x H) 210 x 67 x 34 mm
- Factory colour
Black
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Max. output current
4165 mA
- Output current (max.) - rounded
4.17 A
- Protection class
II
- LED driver features
dimmable
IP20
- Connection
Clamp
- Max. power
100 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
1420 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
404 g
- Power (min.)
34 W
- Power range
34 up to 100 W
- Width
67 mm
- Height
34 mm
- Length
210 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2618226 Deko Light BASIC, DIM, CV, 24V 34-100W LED driver Constant voltage 100 W 1420 - 4165 mA 24 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618226 Deko Light BASIC, DIM, CV, 24V 34-100W LED driver Constant voltage 100 W 1420 - 4165 mA 24 V dimmable 1 pc(s)
Description
Features
- Dimmable with phase on/off-cut dimmersCompact designShort-circuit proofOverload protectionOverheating protectionFlicker-free
- This text is machine translated.
Scope of delivery
- LED power supply BASIC, DIM, CV, 24V 34-100W
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
