Deko Light BASIC, DIM, CV, EUP40D-1W24V-0 LED transformer Constant voltage 40 W 0 - 1700 mA 24 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
BASIC, DIM, CV, EUP40D-1W24V-0
- Constant voltage
- 24 V DC
- 0 - 1700 mA
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim

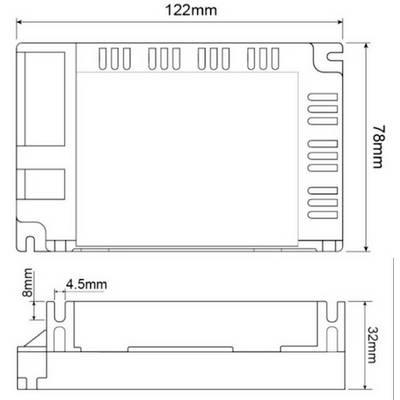

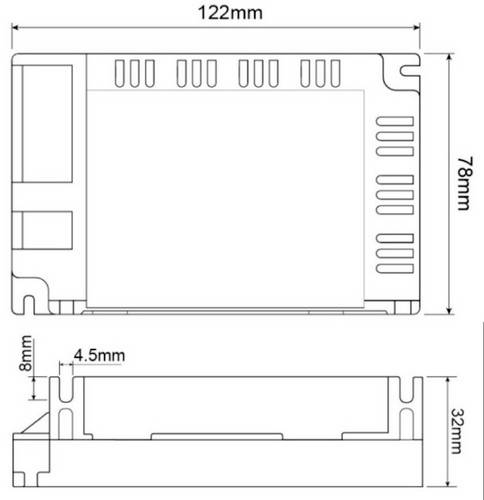

(L x W x H) 122 x 78 x 32 mm
- Factory colour
White
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Max. output current
1700 mA
- Output current (max.) - rounded
1.7 A
- Protection class
II
- LED driver features
dimmable
IP20
- Connection
Clamp
- Max. power
40 W
- No. of outputs
1 x
- Output current (min.)
0 mA
- Weight
196 g
- Power range
40 W (max)
- Width
78 mm
- Height
32 mm
- Length
122 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3347621 Deko Light BASIC, DIM, CV, EUP40D-1W24V-0 LED transformer Constant voltage 40 W 0 - 1700 mA 24 V DC dimmable 1 pc(s)
Warranty Terms
Warranty Terms 3347621 Deko Light BASIC, DIM, CV, EUP40D-1W24V-0 LED transformer Constant voltage 40 W 0 - 1700 mA 24 V DC dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
