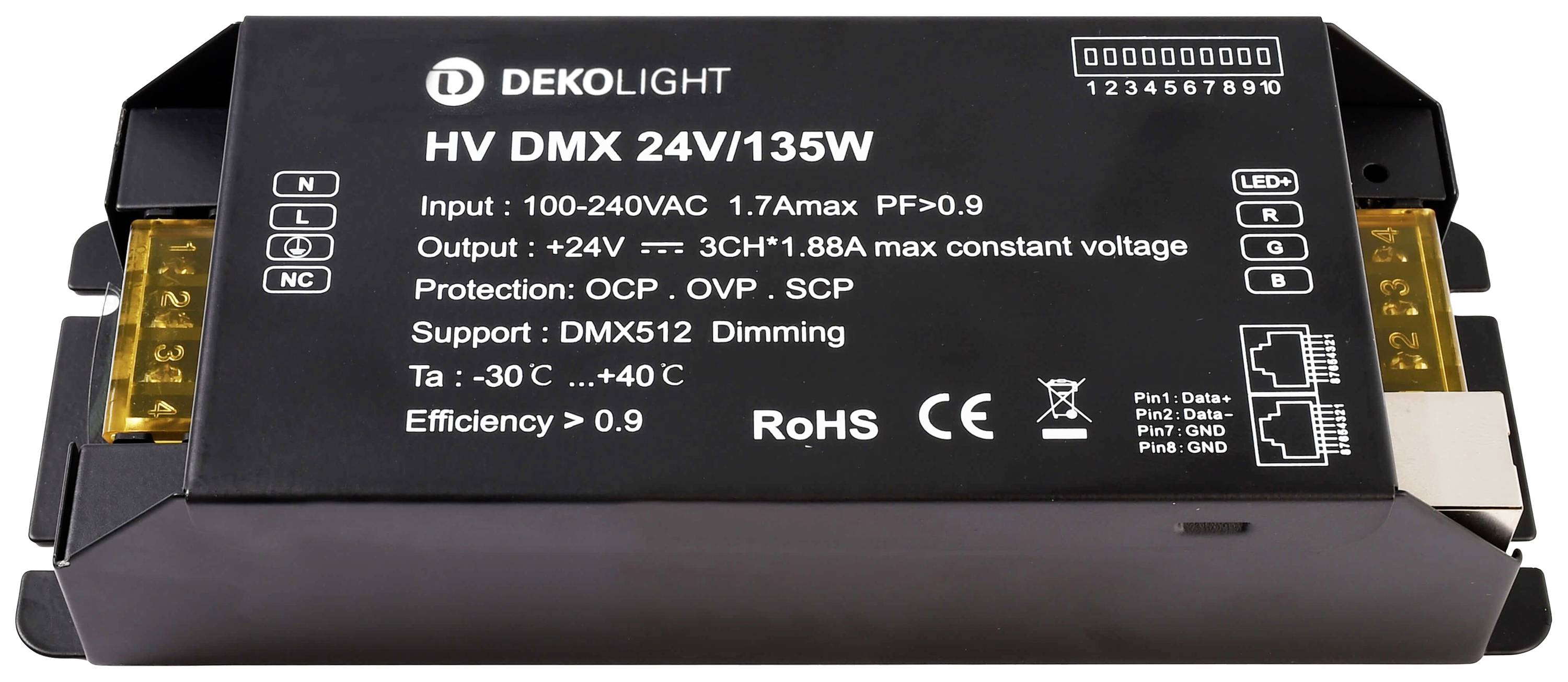

Deko Light BASIC, DIM, CV, HV DMX LED transformer Constant voltage 135 W 0 mA - 5.63 A 24 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
BASIC, DIM, CV, HV DMX
- Constant voltage
- 24 V DC
- 0 mA - 5.63 A
Technical specifications
- 0-5630 mA output current
- Activation: DMX512
- Material 1: Metal
- Number of channels: 3
- max. Switch-on current (A/µs): 23A/320µs
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 196 x 75 x 40 mm
- Factory colour
Black
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Max. output current
5.63 A
- Output current (max.) - rounded
5.63 A
- Protection class
I
- LED driver features
dimmable
IP20
- Connection
Clamp
- Max. power
135 W
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
100
- Power (min.)
135 W
- Power range
135 up to 135 W
- Width
75 mm
- Height
40 mm
- Length
196 mm
- Max. temperature
+40 °C
- Min. temperature
-30 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795409 Deko Light BASIC, DIM, CV, HV DMX LED transformer Constant voltage 135 W 0 mA - 5.63 A 24 V DC dimmable 1 pc(s)
Description
Easy to install and compact DMX-combi device. A powerful 3 channel dimmer as well as a 135 watt power supply are combined in one housing. Thus fast and simple installation Can be controlled with all 3 channel Control Panels and DMX controllers.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2.0 m CAT5 cable
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
