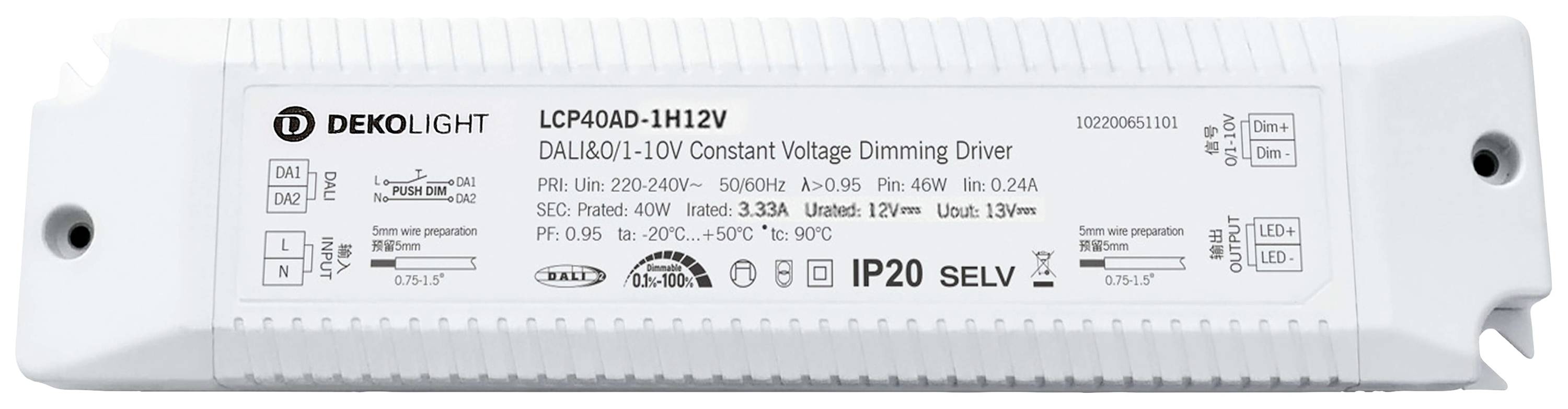

Deko Light BASIC, DIM, CV, LCP LED transformer Constant voltage 0 mA - 3.40 A 12 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
BASIC, DIM, CV, LCP
- Constant voltage
- 12 V DC
- 0 mA - 3.40 A
Technical specifications
- 0-3400 mA output current
- Activation: DALI bus to IEC 62386 DALI 2.0 / 0-10V / 1-10V / Intelli-Push
- Material 1: Plastic Life: 50,000 h
- Switching cycles: 25000
- max. Switch-on current (A/µs): 9.6A/32µs
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 185 x 42.5 x 28.5 mm
- Factory colour
White
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Max. output current
3.40 A
- Output current (max.) - rounded
3.4 A
- Protection class
II
- LED driver features
dimmable
IP20
- Connection
Clamp
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
40 W
- Power range
40 W (min)
- Width
42.5 mm
- Height
28.5 mm
- Length
185 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795447 Deko Light BASIC, DIM, CV, LCP LED transformer Constant voltage 0 mA - 3.40 A 12 V DC dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
