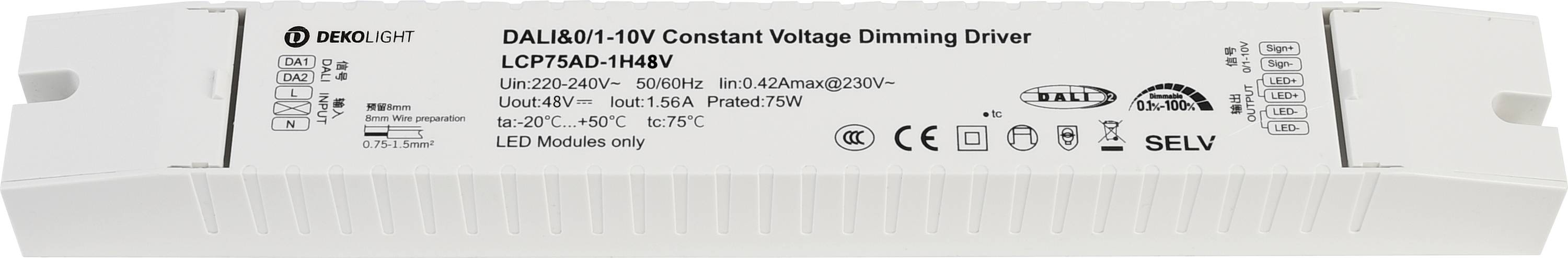

Deko Light BASIC, DIM, CV, LCP75AD-1H48V LED transformer Constant voltage 1560 mA 48 V DC DALI 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Decorative-Light, dimmable power supply (CV, DC), BASIC, DIM, CV, LCP75AD-1H48V, voltage constant, dimmable J
- Constant voltage
- 48 V DC
- 1560 mA
Technical specifications
- Operating mode: Voltage constant
- Output voltage: 48 V/DC
- Dimmable: Yes
- Controller technology: DALI 2.0 / DT6;0-10 V;1-10 V;Intelli Push-Dim
- Life: 50,000 h
- Switching cycles 25000
- Number of channels: 1
- Product type
LED transformer
- Type
Constant voltage
- Dim
(W x H x D) 40 x 32 x 295 mm
- Factory colour
White
- Output voltage (max.)
48 V DC
- Output voltage (min.)
48 V DC
- Max. output current
1560 mA
- Output current (max.) - rounded
1.56 A
- LED driver features
DALI
IP20
- No. of outputs
1 x
- Output current (min.)
1560 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Width
40 mm
- Height
32 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Depth
295 mm
Yes
- Material
Plastic
75.0 W
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3410359 Deko Light BASIC, DIM, CV, LCP75AD-1H48V LED transformer Constant voltage 1560 mA 48 V DC DALI 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3410359 Deko Light BASIC, DIM, CV, LCP75AD-1H48V LED transformer Constant voltage 1560 mA 48 V DC DALI 1 pc(s)
Warranty Terms
Warranty Terms 3410359 Deko Light BASIC, DIM, CV, LCP75AD-1H48V LED transformer Constant voltage 1560 mA 48 V DC DALI 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
