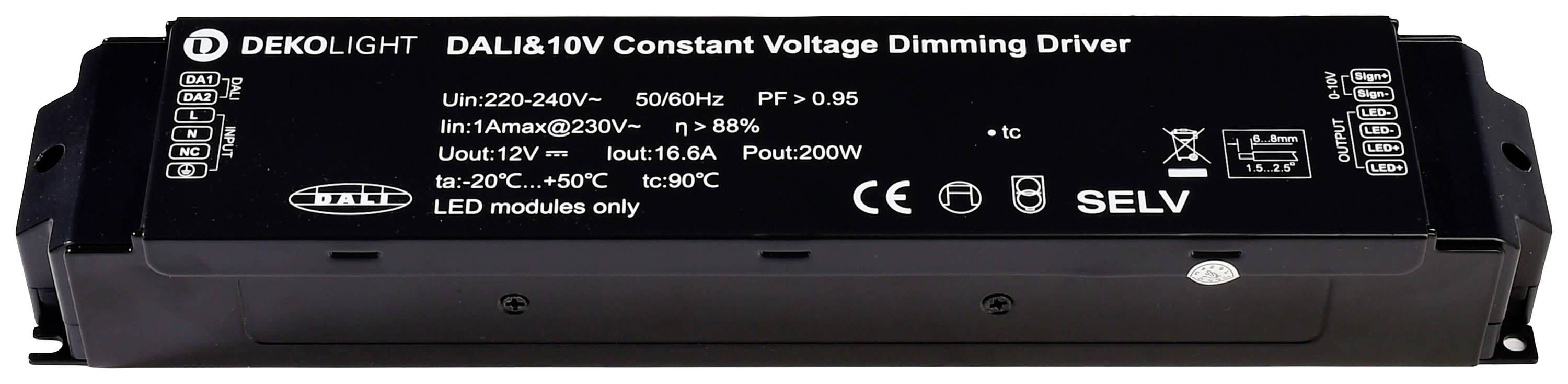

Deko Light BASIC, DIM, CV LED transformer Constant voltage 0 mA - 16.70 A 12 V DC DALI 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
BASIC, DIM, CV
- Constant voltage
- 12 V DC
- 0 mA - 16.70 A
Technical specifications
- 0-16700 mA output current
- Activation: DALI bus to IEC 62386 DALI 1.0 / Push / 1-10V
- Material 1: Aluminium
- Number of channels: 2
- max. Switch-on current (A/µs): 28A/1250µs
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 310 x 60 x 45 mm
- Factory colour
Black
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Max. output current
16.70 A
- Output current (max.) - rounded
16.7 A
- Protection class
I
- LED driver features
DALI
IP20
- Connection
Clamp
- No. of outputs
2 x
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
200 W
- Power range
200 W (min)
- Width
60 mm
- Height
45 mm
- Length
310 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795426 Deko Light BASIC, DIM, CV LED transformer Constant voltage 0 mA - 16.70 A 12 V DC DALI 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
