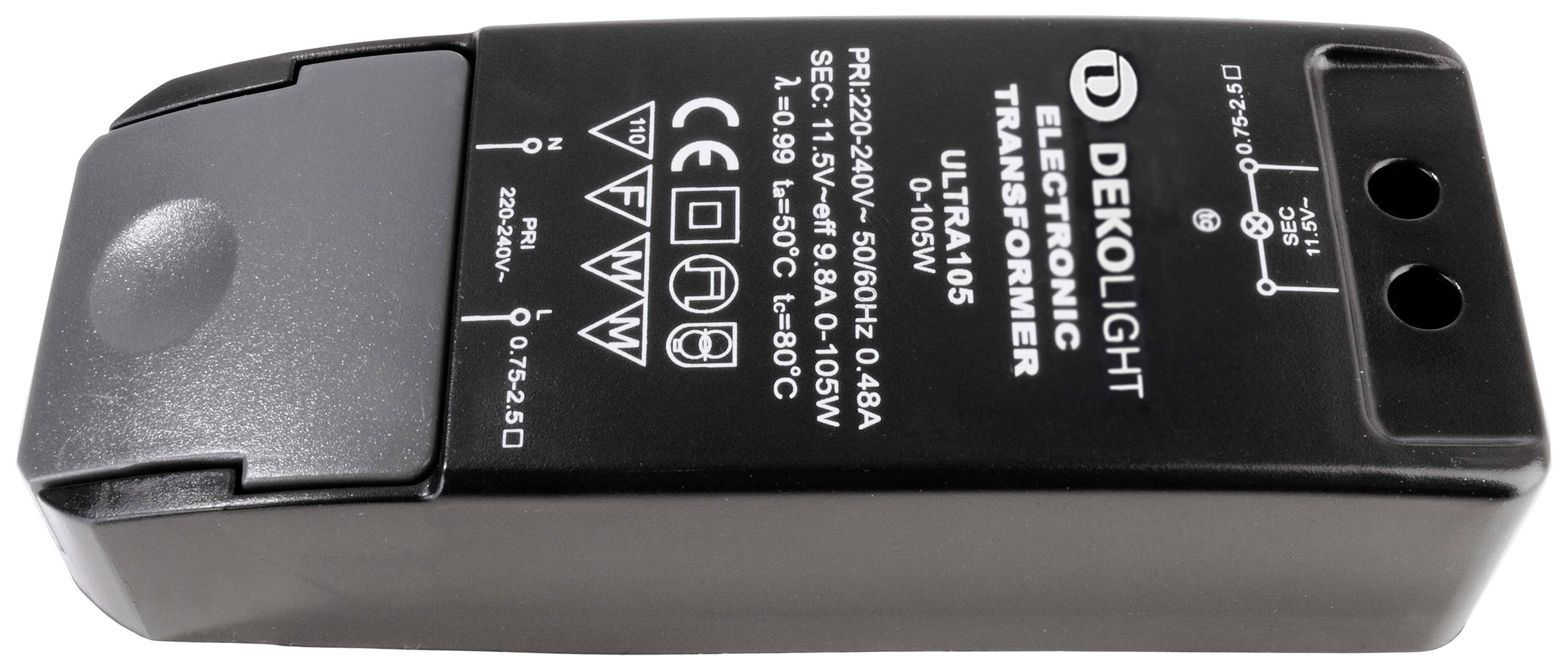

Deko Light BASIC, DIM, CV LED transformer Constant voltage 105 W 0 mA - 9.80 A 11.5 V AC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
BASIC, DIM, CV
- Constant voltage
- 11.5 V AC
- 0 mA - 9.80 A
Technical specifications
- 0-9800 mA output current
- Control: Phase angle-/section
- Material 1: Plastic
- max. Switch-on current (A/µs): 30A/300µs
- Product type
LED transformer
- Type
Constant voltage
- Operating current
9.80 A
- Dim
(L x W x H) 115 x 45 x 28 mm
- Factory colour
Black
- Output voltage (max.)
11.5 V AC
- Output voltage (min.)
11.5 V AC
- Max. output current
9.80 A
- Output current (max.) - rounded
9.8 A
- Protection class
II
- LED driver features
dimmable
IP20
- Connection
Clamp
- Max. power
105 W
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
0 W
- Power range
0 up to 105 W
- Width
45 mm
- Height
28 mm
- Length
115 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795394 Deko Light BASIC, DIM, CV LED transformer Constant voltage 105 W 0 mA - 9.80 A 11.5 V AC dimmable 1 pc(s)
Description
Please note:0-105W halogen lampOr 0-50W / max. 6 LED light bulbs
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
