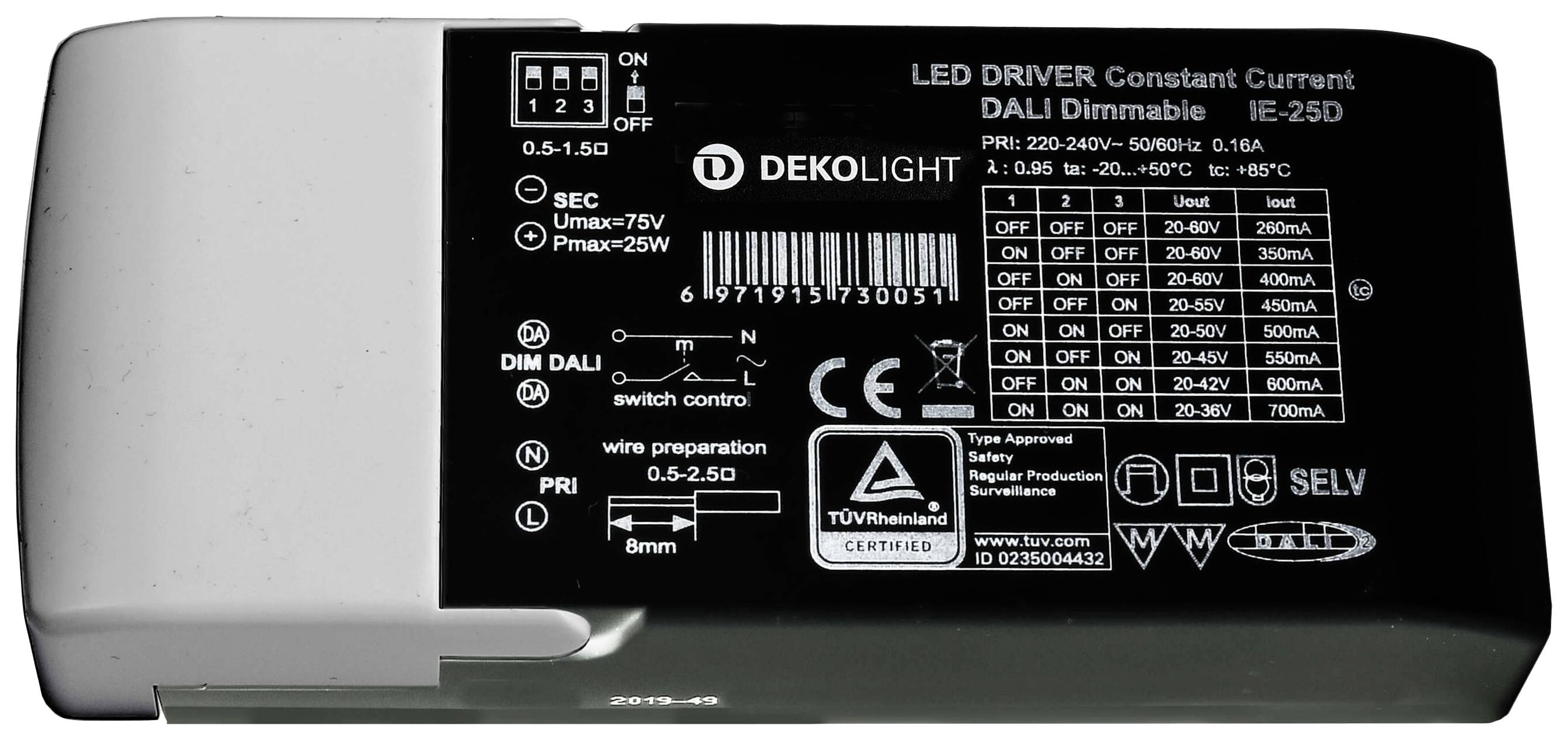

Deko Light BASIC, DIM, Multi CC, IE-25D LED driver Constant current 25 W 260 - 700 mA 20 - 60 V DALI 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
BASIC, DIM, Multi CC, IE-25D
- Constant current
- 20 - 60 V
- 260 - 700 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim

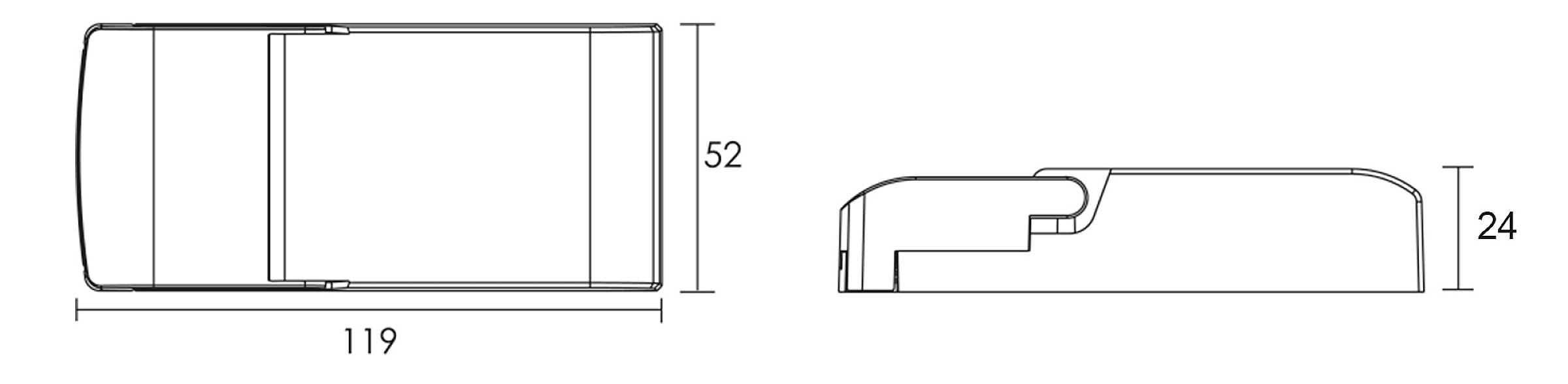

(L x W x H) 119 x 52 x 24 mm
- Factory colour
Black
- Output voltage (max.)
60 V
- Output voltage (min.)
20 V
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Protection class
II
- LED driver features
DALI
IP20
- Max. power
25 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
260 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
118 g
- Power (min.)
5 W
- Power range
5 up to 25 W
- Width
52 mm
- Height
24 mm
- Length
119 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2618197 Deko Light BASIC, DIM, Multi CC, IE-25D LED driver Constant current 25 W 260 - 700 mA 20 - 60 V DALI 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618197 Deko Light BASIC, DIM, Multi CC, IE-25D LED driver Constant current 25 W 260 - 700 mA 20 - 60 V DALI 1 pc(s)
Description

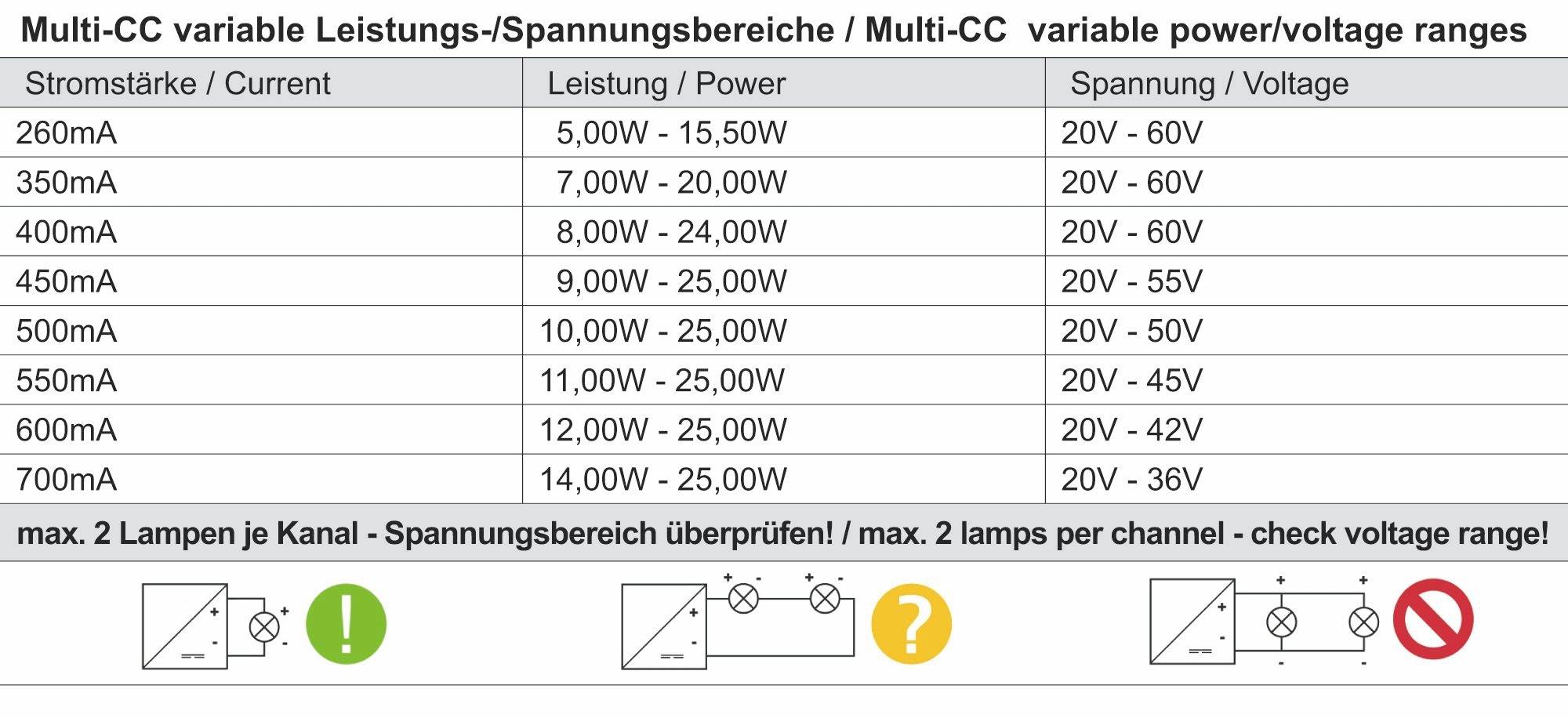

37 CC versions in 3 different housing sizes, 862191 = 260-700mA, 5-25W, 20-60V
This text is machine translated.
This text is machine translated.
Features
- Dimmable with Dali1/Dali2Dimmable with Intelli pushCurrent strength adjustable via DIP switchCan be operated without control/dimmingFlicker-free
Scope of delivery
- LED POWER SUPPLY, BASIC, DIM, MULTI CC, IE-25D
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
