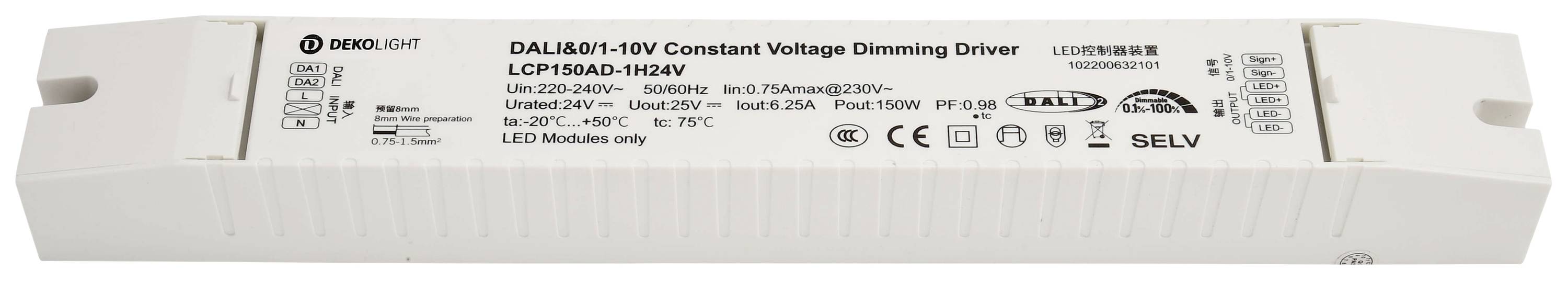

Deko Light BASIC LED transformer Constant voltage 150 W 24 V DALI 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Decorative-Light, dimmable power supply (CV, DC), BASIC, DIM, CV, LCP150AD-1H24V, VOLTAGE CONSTANT, DALI 2.0
- Constant voltage
- 24 V
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim

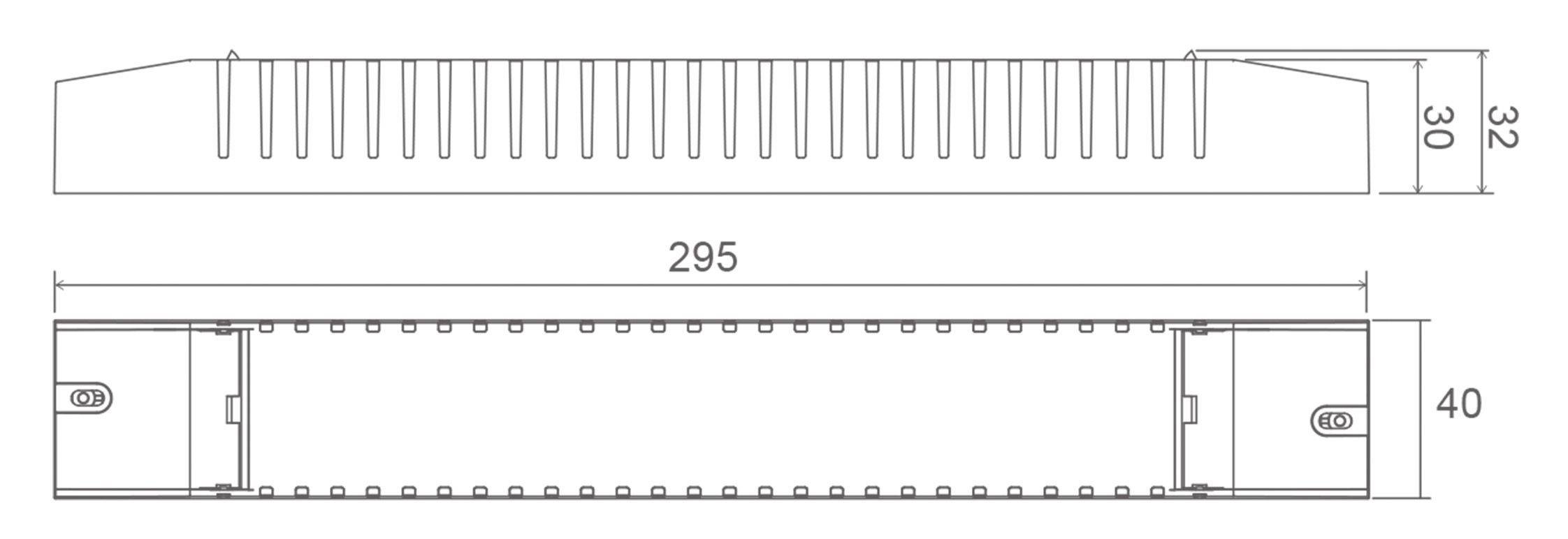

(L x W x H) 295 x 40 x 32 mm
- Output voltage (max.)
24 V
- Protection class
II
- LED driver features
DALI
IP20
- Connection
Clamp
- Max. power
150 W
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
792 g
- Power range
150 W (max)
- Width
40 mm
- Height
32 mm
- Length
295 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2998383 Deko Light BASIC LED transformer Constant voltage 150 W 24 V DALI 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
