Buy Deko Light DMX Wandcontroller Touch 16C Wall console 86 mm 86 mm 17.4 mm

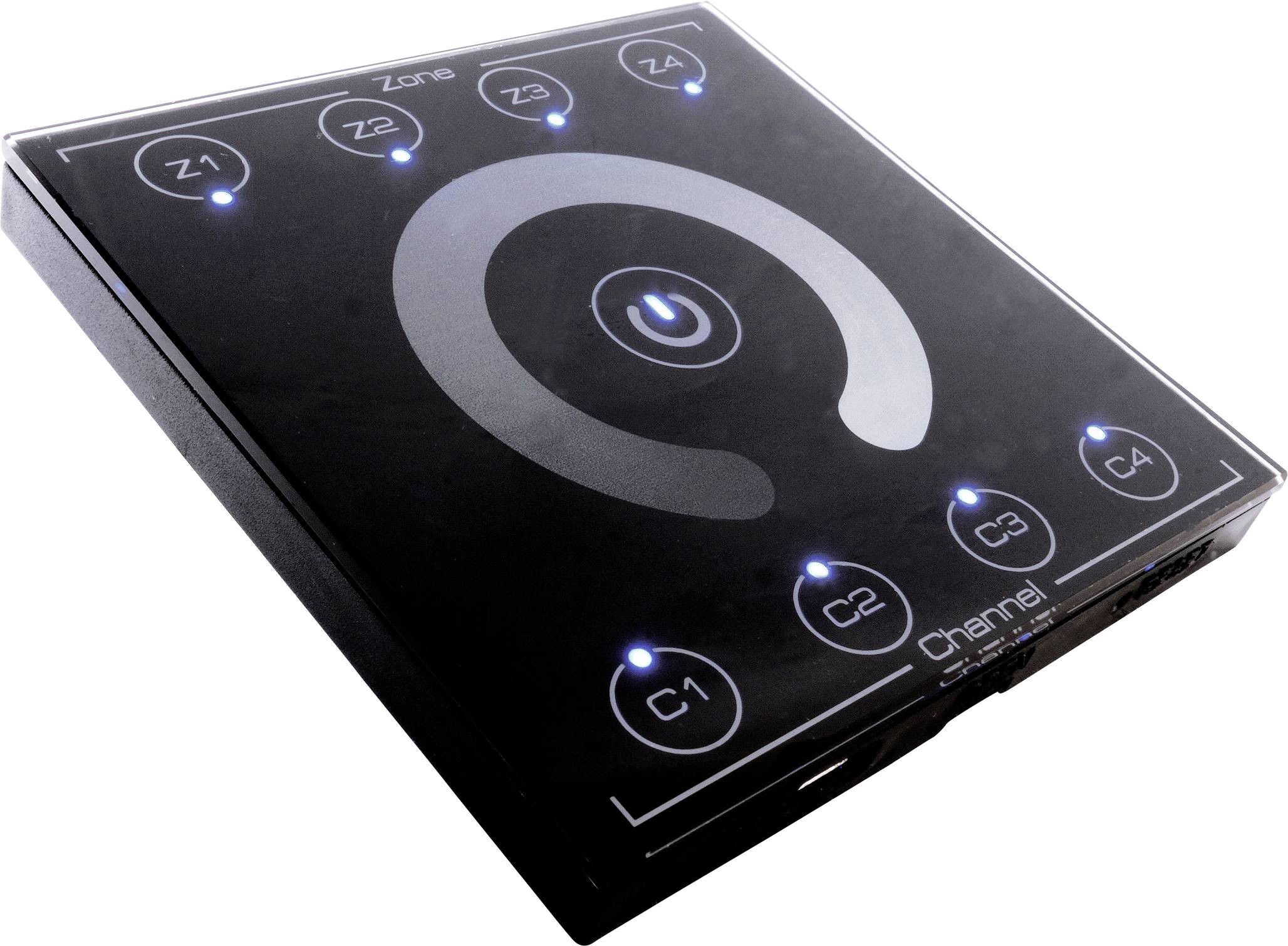

A square control panel with illuminated zones 'Z1' to 'Z4' and channels 'C1' to 'C4', with a central power on/off switch.

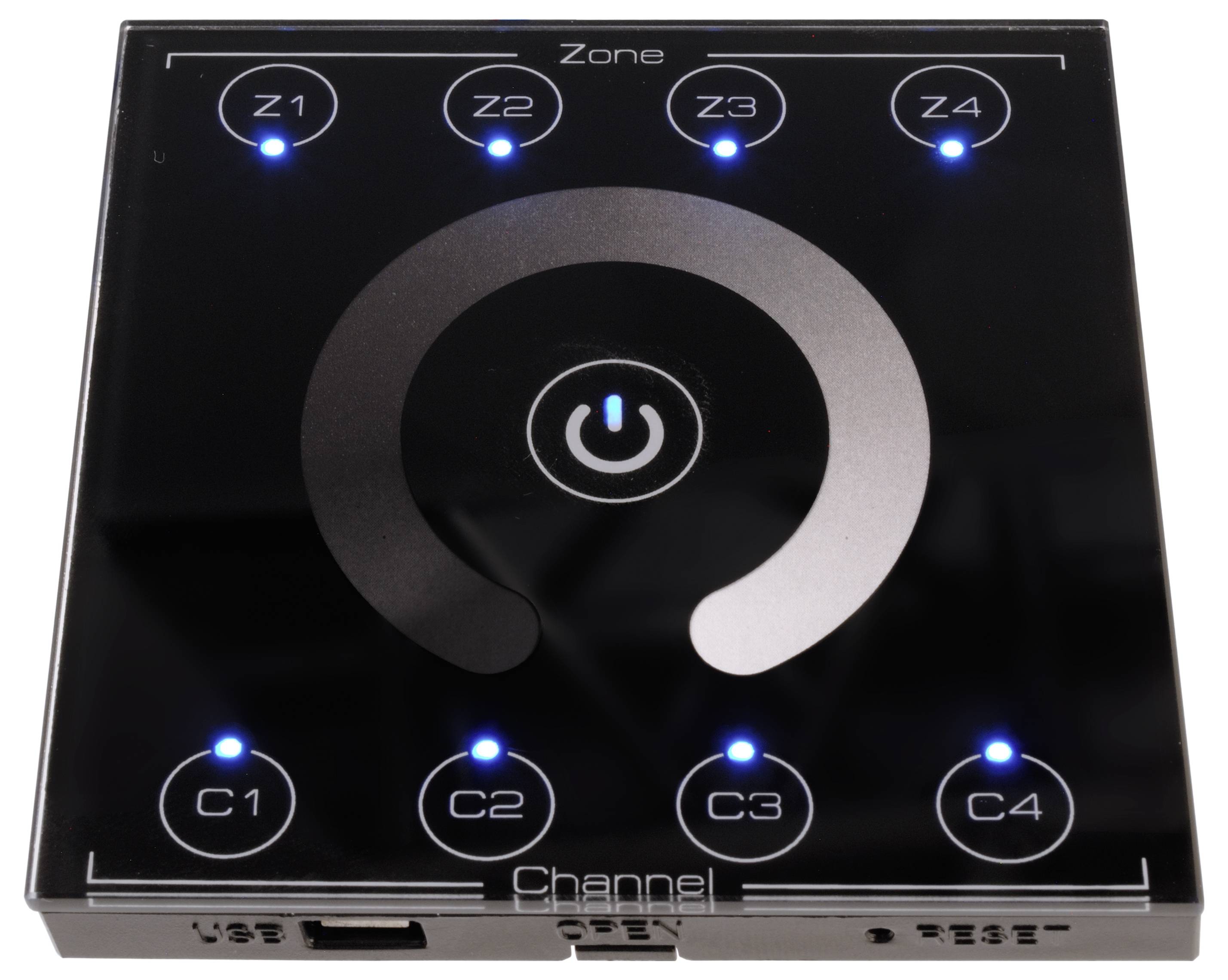

Black touch control panel with blue LED indicators for four zones (Z1-Z4) and four channels (C1-C4), central power on/off switch.

A stylishly designed hallway with contemporary wooden doors, soft lighting on the ceiling and walls, creating a warm ambience.

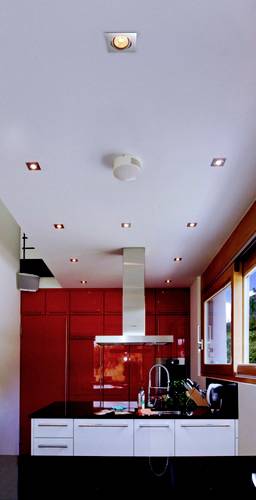

Modern kitchen with red cupboards and minimalist ceiling lighting. White worktop and integrated appliances present.

Long, illuminated corridor with a curved ceiling, several wooden doors on both sides and a modern wall-mounted thermostat.

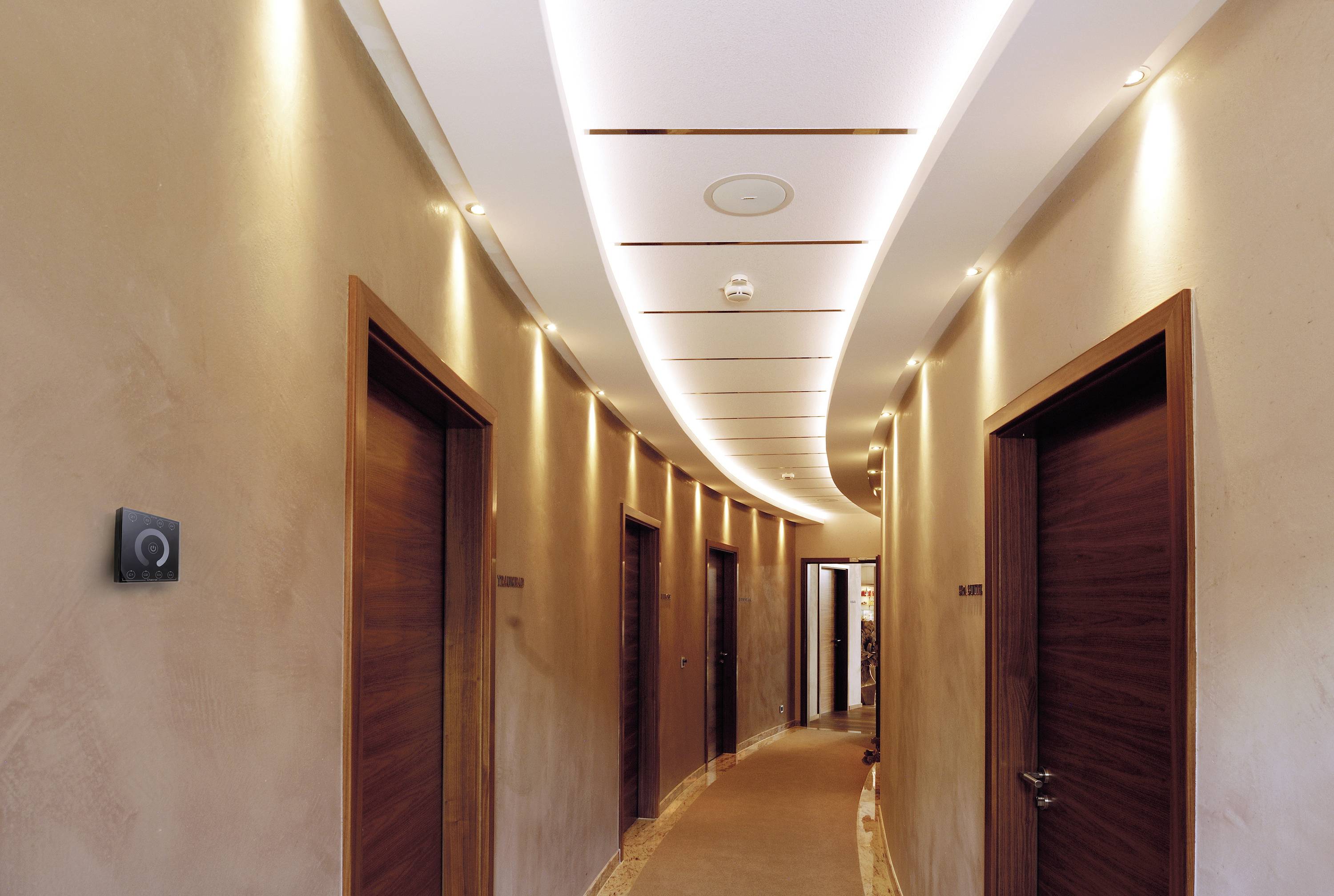

An elegant hotel corridor with several wooden doors and modern ceiling lighting leading into the background.

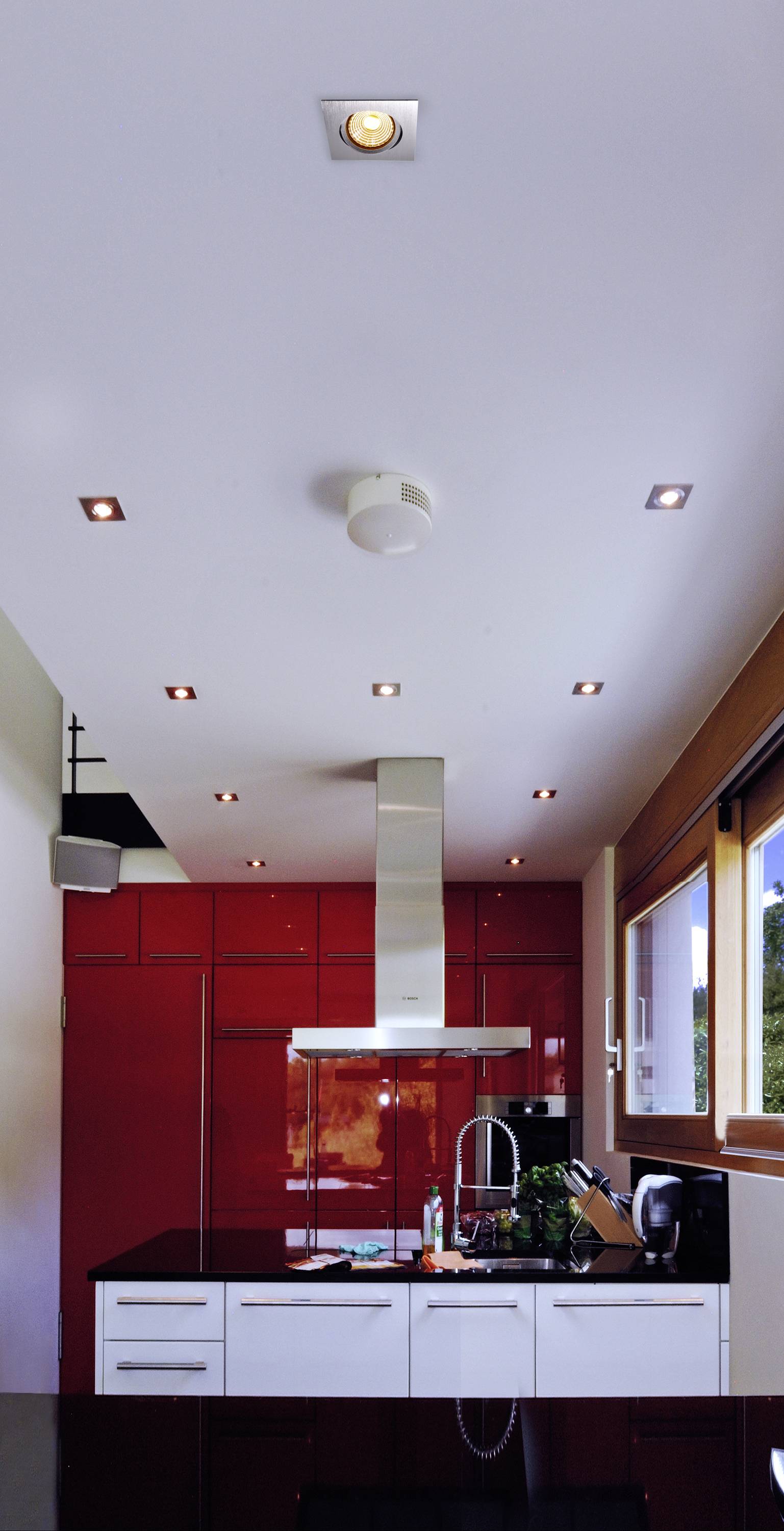

Modern kitchen with red cabinets, white ceiling and integrated ceiling lights. In the foreground is a cooker with an extractor hood.

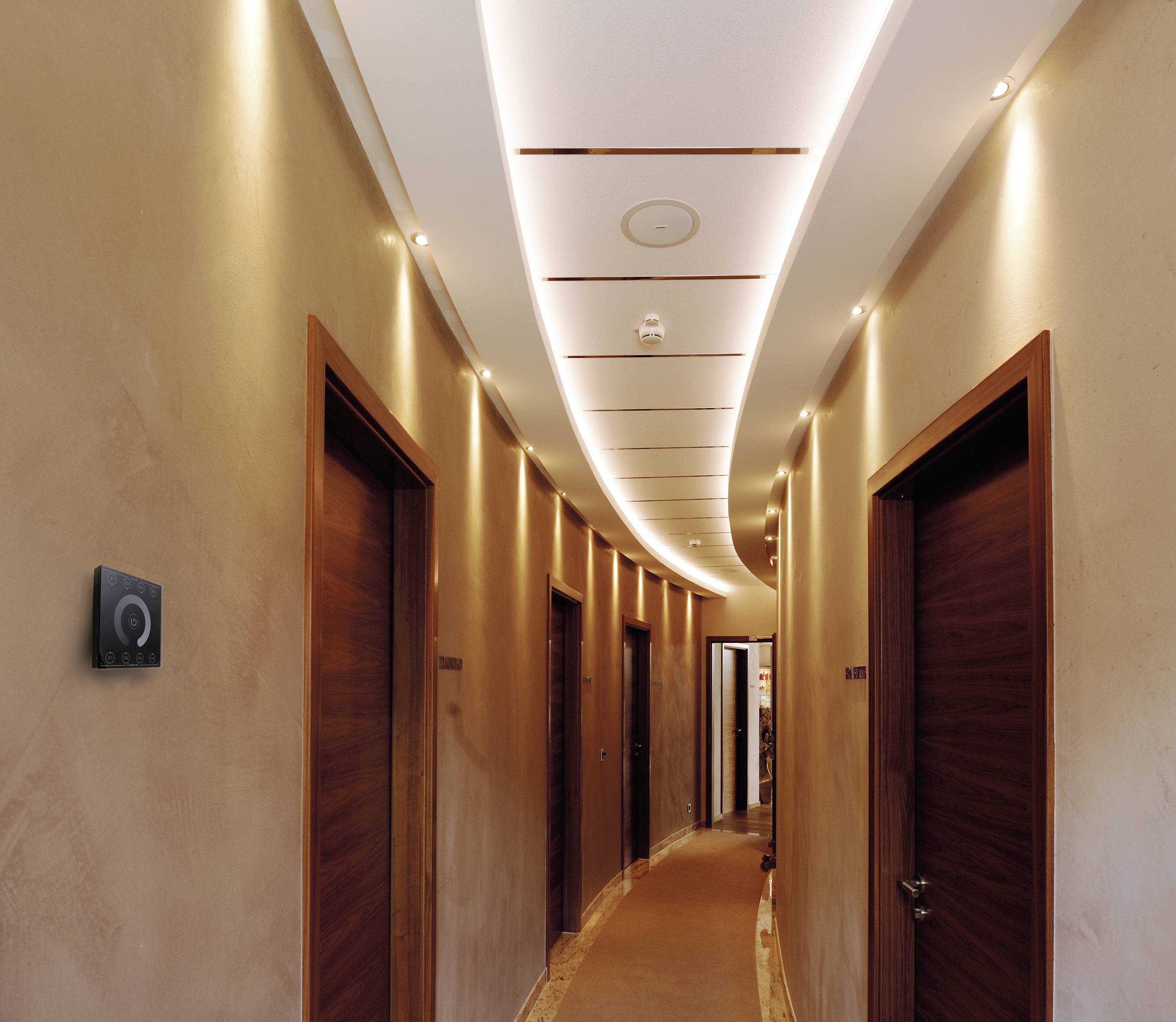

A long, narrow corridor with a curved ceiling and modern lighting. Wooden doors are visible on the left and right.

1/8

Product type

Wall console

Min. operating voltage

12 V DC

Max. operating voltage

24 V DC

Use

Dimmer

DMX

PWM

Cool white

Warm white

Type

DMX Wandcontroller Touch 16C

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

DMX wall controller touch 16C

Easy to Use
Group control
Master control of all channels
Controls DMX512 PWM-Dimmer
Specially developed for 1 channel single LED strips/lamps
1-4 zones, each with 4x 1 channels
Up to 16 individually controlled LED strips or in 4 groups
Background lighting and touch-signal tone can be switched optionally
Memory function: Remembers the last set brightness of all channels
DMX output via CAT5 [RJ45] or connection terminals
Automatic DMX Address Allocation [Zone 1: Address 1-4, Zone 2: Address: 5-8, Zone 3: Address: 9-12, Zone 4: Address: 13-16]
Wall mounting on 68mm single switch box

Technical specifications

Casing material: Glass
Operating mode: Voltage constant
Connection: Terminal
Activation: DMX512

Type: DMX Wandcontroller Touch 16C

Product type: Wall console

Min. operating voltage: 12 V DC

Max. operating voltage: 24 V DC

Channels: 1
1
1
1

Use: Dimmer
DMX
PWM
Cool white
Warm white

Factory colour: Black

Dim: (L x W x H) 86 x 86 x 17.4 mm

Width: 86 mm

Height: 17.4 mm

Length: 86 mm

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3347609 Deko Light DMX Wandcontroller Touch 16C Wall console 86 mm 86 mm 17.4 mm

Warranty Terms

Warranty Terms 3347609 Deko Light DMX Wandcontroller Touch 16C Wall console 86 mm 86 mm 17.4 mm

Description

The DMX TOUCH 16C LED has 4 zones, each with 4 channels. This provides a total of 16 individually controllable channels. If you select one of the zones [Z1-Z4], the touch wheel controls all 4 channels in that zone. When a channel [C1-C4] is selected in a zone, the touch wheel controls the selected channel. If no zone or channel is selected, the touch wheel controls all zones including their channels. Please note that the controller was developed especially for warm- and/or cold-white terminals. Due to its functions it can only be used to a limited extent for RGB or RGBW terminals.

This text is machine translated.
