Deko Light DMX Wandcontroller Touch 16CH Pro Wall console 86 mm 86 mm 15.3 mm
EAN:
Part number:
Item no:
Product type
Wall console
Min. operating voltage
12 V DC
Max. operating voltage
24 V DC
Use
Dimmer
DMX
PWM
RGB
RGBW
Type
DMX Wandcontroller Touch 16CH Pro
Highlights & Details

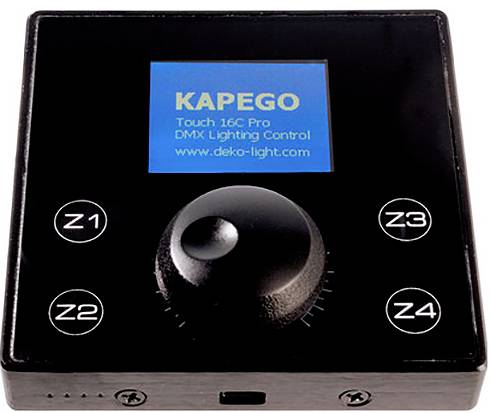

DMX Wall Controller Touch 16CH Pro
- Intuitive operation and programming via display
- Menu navigation via rotating wheel with push-function
- Ideal for hotels, owls, home and living areas
- Suitable for LED Strips with 1-4 channels [Single, WW-CW, RGB, RGBW]
- Up to 4 independent control zones
- Scene memory
- Colour mode for individual setting of the colors of each zone
- Brightness mode for individual adjustment of the brightness of each zone
- Program mode for individual setting of color change and fader of each zone
- 14 pre-installed or eight self-adjustable programs can be assigned to a zone
- Time mode for setting the start and end time of set programs
- Internal clock for switching zones with stored programs time-dependent
- Connection terminals for DMX output and DC IN
- Wall mounting on 68 mm single switch box
Technical specifications
- Aluminium casing material
- Operating mode: Voltage constant
- Connection: Terminal
- Activation: DMX512
- Type
DMX Wandcontroller Touch 16CH Pro
- Product type
Wall console
- Min. operating voltage
12 V DC
- Max. operating voltage
24 V DC
- Channels
4
3
2
1
- Use
Dimmer
DMX
PWM
RGB
RGBW
- Factory colour
Black
- Dim

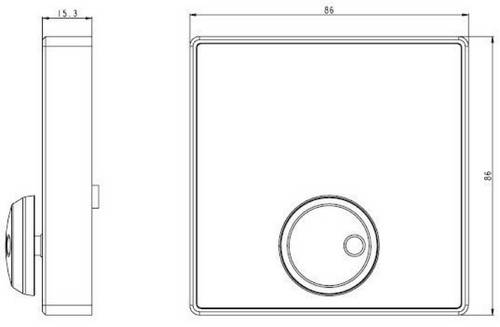

(L x W x H) 86 x 86 x 15.3 mm
- Width
86 mm
- Height
15.3 mm
- Length
86 mm
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3348354 Deko Light DMX Wandcontroller Touch 16CH Pro Wall console 86 mm 86 mm 15.3 mm
Warranty Terms
Warranty Terms 3348354 Deko Light DMX Wandcontroller Touch 16CH Pro Wall console 86 mm 86 mm 15.3 mm
Description
The Touch 16CH Pro control is a DMX-touch panel, with which up to 4 zones, each with 1-4 channels can be stored and called up. Intuitive operation allows fast and user-friendly storage of scenes and moods. It is suitable both for hotels and courtyards, as well as for the home and living area. As a design element, the Touch 16CH Pro Ideal fits into the living area.
