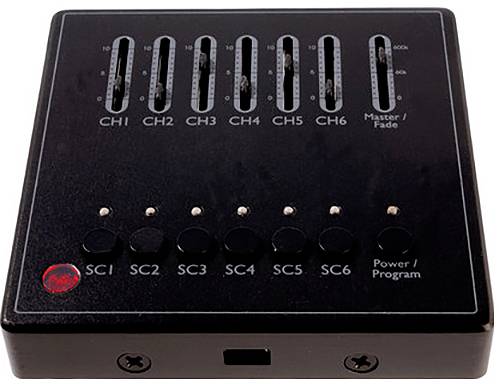

Deko Light DMX Wandsteuerung X-Fade-6 II Wall console 86 mm 86 mm 16.3 mm
EAN:
Part number:
Item no:
Product type
Wall console
Min. operating voltage
12 V DC
Max. operating voltage
24 V DC
Use
Dimmer
DMX
PWM
Cool white
Warm white
Type
DMX Wandsteuerung X-Fade-6 II
Highlights & Details
DMX wall holder X-Fade-6 II
- Easy to use
- Controls DMX512 PWM-Dimmer
- Scene memory
- Six individually programmable programs with up to 100 steps
- Fade time adjustment
- Many control options for single or WW-CW LED applications
- 6 individual faders for each 1 control channel (6x 1 channel, 3x 2 channel or mix)
- Additional fader for master brightness
- Wall mounting on 68 mm single switch box
- IR remote control
Technical specifications
- Polycarbonate housing material
- Operating mode: Voltage constant
- Connection: Terminal
- Activation: DMX512
- Type
DMX Wandsteuerung X-Fade-6 II
- Product type
Wall console
- Min. operating voltage
12 V DC
- Max. operating voltage
24 V DC
- Channels
6
5
4
3
2
1
- Use
Dimmer
DMX
PWM
Cool white
Warm white
- Factory colour
Black
- Dim

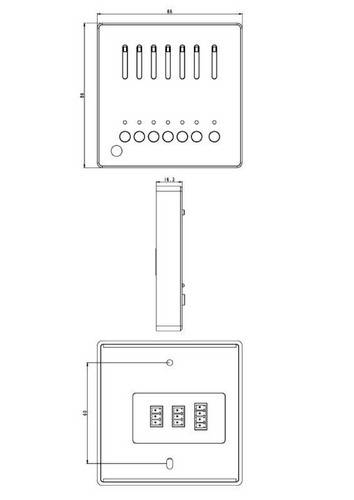

(L x W x H) 86 x 86 x 16.3 mm
- Width
86 mm
- Height
16.3 mm
- Length
86 mm
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3347627 Deko Light DMX Wandsteuerung X-Fade-6 II Wall console 86 mm 86 mm 16.3 mm
Warranty Terms
Warranty Terms 3347627 Deko Light DMX Wandsteuerung X-Fade-6 II Wall console 86 mm 86 mm 16.3 mm
Description

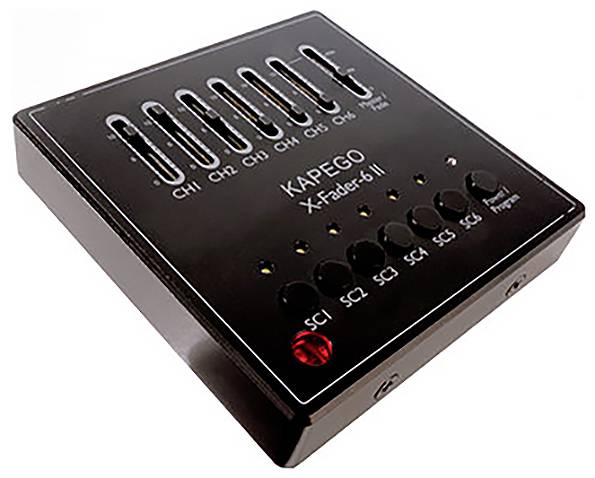

The X-fade 6 is a wall controller for DMX LED dimmer. Up to 6 faders can be operated directly and connected with a corresponding DMX dimmer. For example, 2 RGB strips or 6 single-color stripes can be controlled in 6 different zones. Further, the X-Fade 6 can also be used as standard 6 channel DMX controller and thus offers the possibility of controlling even DMX dimmers or devices with up to 6 channels. Up to 6 different programs can be called in addition. Each program can have up to 100 steps. Programs can also be self-programmed.
This text is machine translated.
This text is machine translated.
Scope of delivery
- IR remote control
