Deko Light FLAT, CC, UT LED driver Constant current 20 W 350 mA - 0.35 A 2 - 57 V DC 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

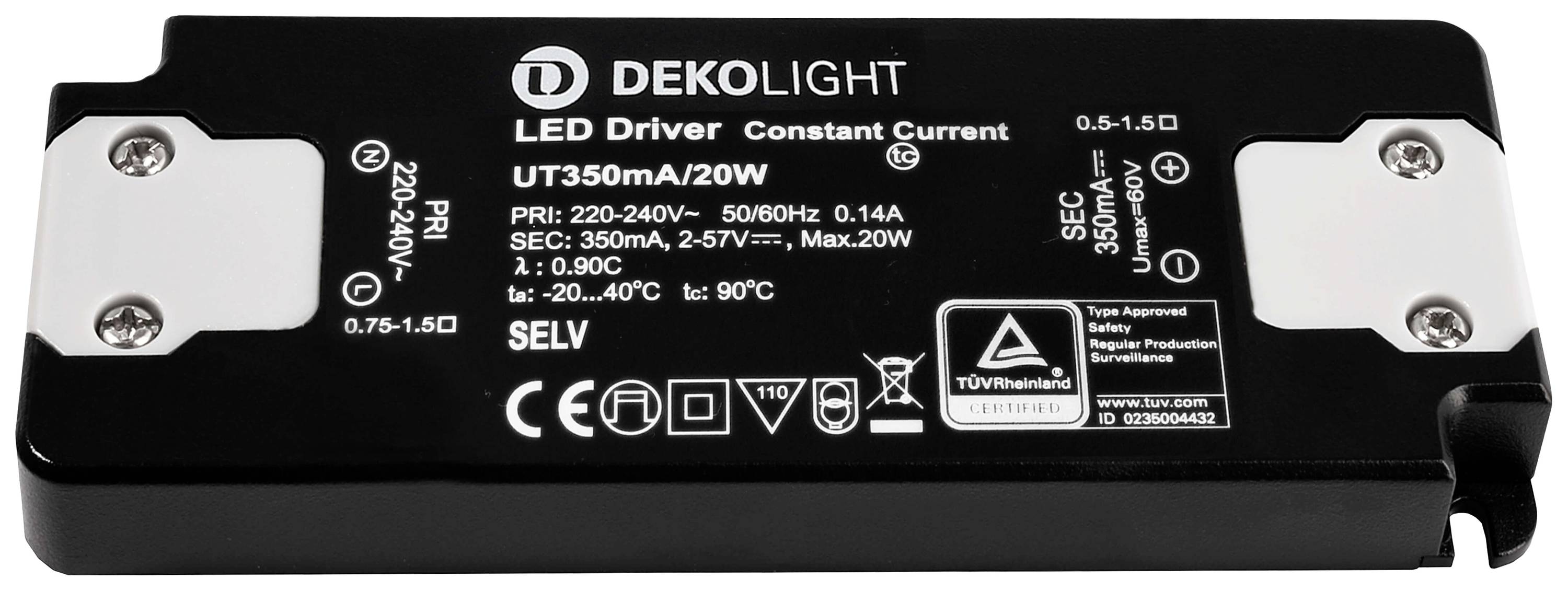

Deco-Light LED-power supply, FLAT, CC, UT350mA/20W, 220-240V AC/50-60Hz, 2-57V DC
- Constant current
- 2 - 57 V DC
- 350 mA - 0.35 A
Technical specifications
- Output current: 350 mA
- Material 1: Plastic Durability: 30000 h
- max. Inrush current (A/µs): 10A/100us
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 154 x 50 x 14 mm
- Factory colour
Black
- Output voltage (max.)
57 V DC
- Output voltage (min.)
2 V DC
- Max. output current
0.35 A
- Output current (max.) - rounded
350 mA
- Protection class
II
IP20
- Connection
Clamp
- Max. power
20 W
- Output current (min.)
350 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
0.70 W
- Power range
0.70 up to 20 W
- Width
50 mm
- Height
14 mm
- Length
154 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795440 Deko Light FLAT, CC, UT LED driver Constant current 20 W 350 mA - 0.35 A 2 - 57 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
