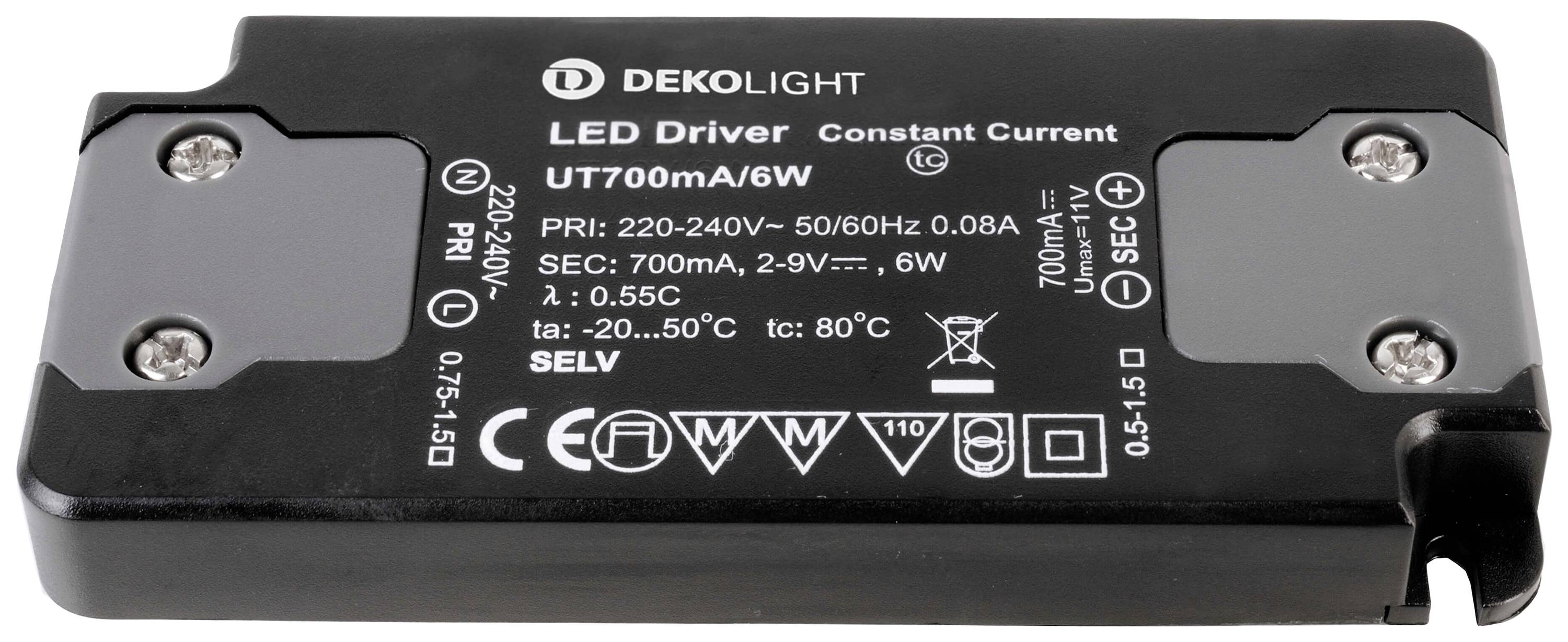

Deko Light FLAT, CC, UT LED driver Constant current 6 W 80 mA - 0.70 A 9 V DC 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
FLAT, CC, UT
- Constant current
- 9 V DC
- 80 mA - 0.70 A
Technical specifications
- Output current: 700 mA
- Material 1: Plastic Durability: 30000 h
- max. Inrush current (A/µs): 10A/300µs
- Product type
LED driver
- Type
Constant current
- Operating current
700 mA
- Dim
(L x W x H) 98 x 46 x 11 mm
- Factory colour
Black
- Output voltage (max.)
9 V DC
- Output voltage (min.)
9 V DC
- Max. output current
0.70 A
- Output current (max.) - rounded
700 mA
- Protection class
II
IP20
- Connection
Clamp
- Max. power
6 W
- Output current (min.)
80 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
1.40 W
- Power range
1.40 up to 6 W
- Width
46 mm
- Height
11 mm
- Length
98 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795412 Deko Light FLAT, CC, UT LED driver Constant current 6 W 80 mA - 0.70 A 9 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
