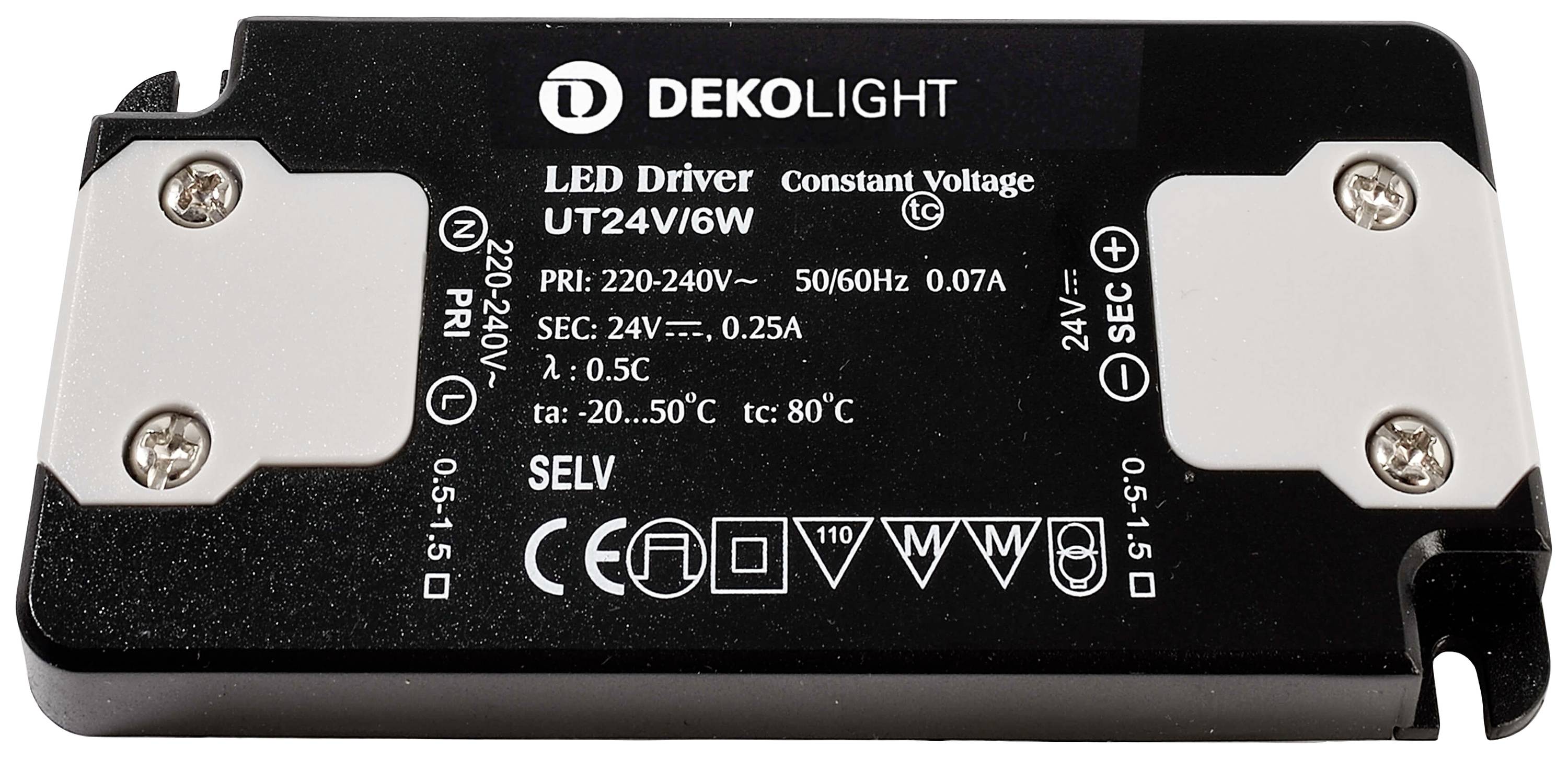

Deko Light FLAT, CC, UT LED transformer Constant voltage 0 mA - 0.25 A 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
FLAT, CC, UT
- Constant voltage
- 24 V DC
- 0 mA - 0.25 A
Technical specifications
- 0-250 mA output current
- Material 1: Plastic Durability: 30000 h
- max. Inrush current (A/µs): 7A/300µs
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 98 x 46 x 11 mm
- Factory colour
Black
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Max. output current
0.25 A
- Output current (max.) - rounded
250 mA
- Operating voltage
24 V DC
- Protection class
II
IP20
- Connection
Open end cable
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
6 W
- Power range
6 W (min)
- Width
46 mm
- Height
11 mm
- Length
98 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795471 Deko Light FLAT, CC, UT LED transformer Constant voltage 0 mA - 0.25 A 24 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
