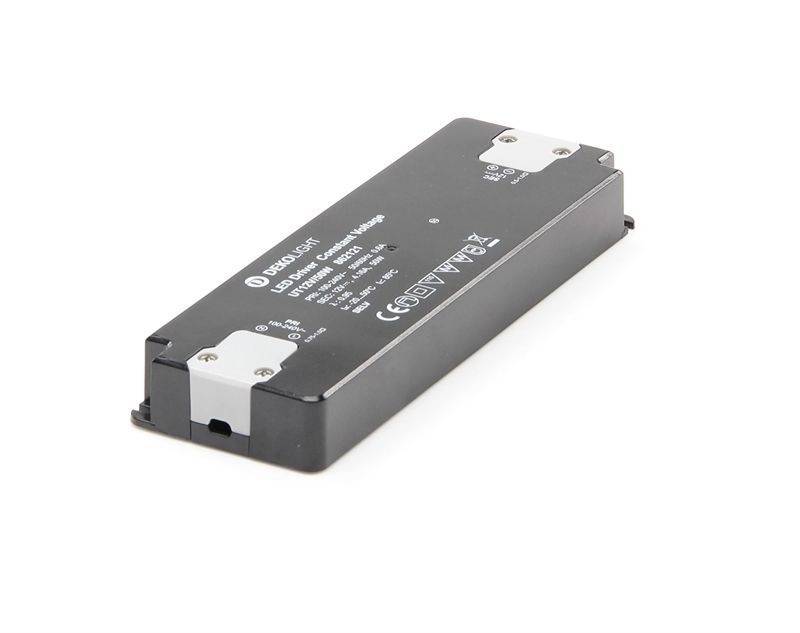

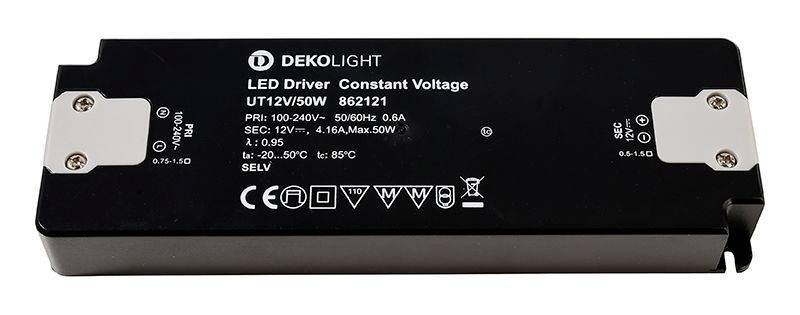

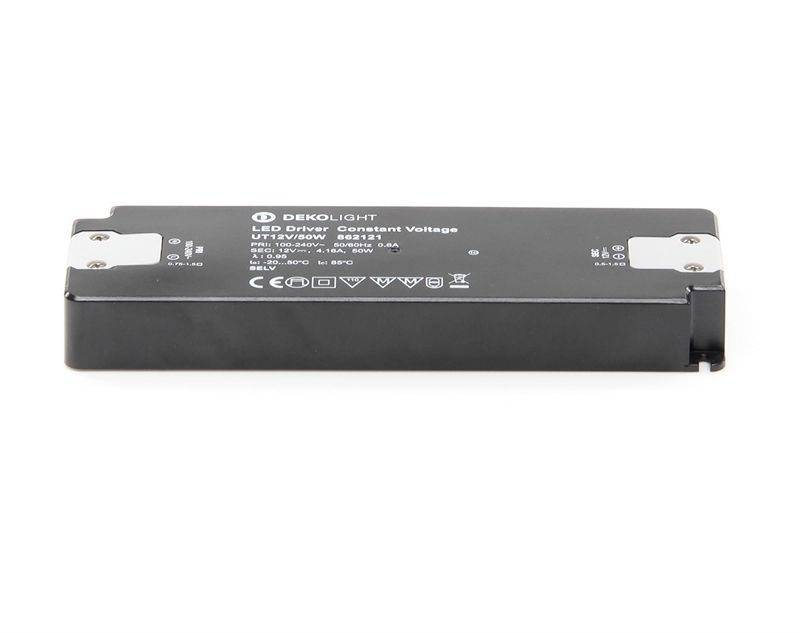

Deko Light FLAT, CV, UT LED transformer Constant voltage 0 mA - 4.16 A 12 V DC 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
FLAT, CV, UT
- Constant voltage
- 12 V DC
- 0 mA - 4.16 A
Technical specifications
- 0-4160 mA output current
- Material 1: Plastic Durability: 30000 h
- max. Inrush current (A/µs): 15A/300µs
- Product type
LED transformer
- Type
Constant voltage
- Operating current
4.16 A
- Dim
(L x W x H) 185 x 62 x 22 mm
- Factory colour
Black
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Max. output current
4.16 A
- Output current (max.) - rounded
4.16 A
- Protection class
II
IP20
- Connection
Clamp
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
100
- Power (min.)
50 W
- Power range
50 W (min)
- Width
62 mm
- Height
22 mm
- Length
185 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795415 Deko Light FLAT, CV, UT LED transformer Constant voltage 0 mA - 4.16 A 12 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
