Deko Light FLAT, CV, UT12V/20W LED driver Constant voltage 20 W 0 - 1670 mA 12 V DC Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

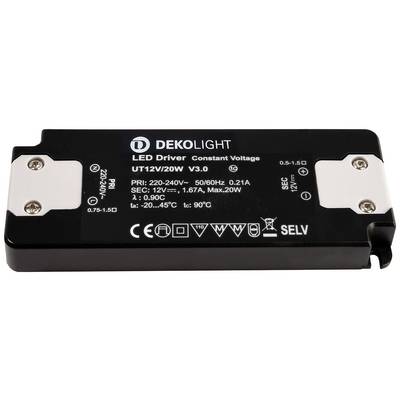

Deko-Light LED-Power supply, FLAT, CV, UT12V/20W
- Constant voltage
- 12 V DC
- 0 - 1670 mA
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim

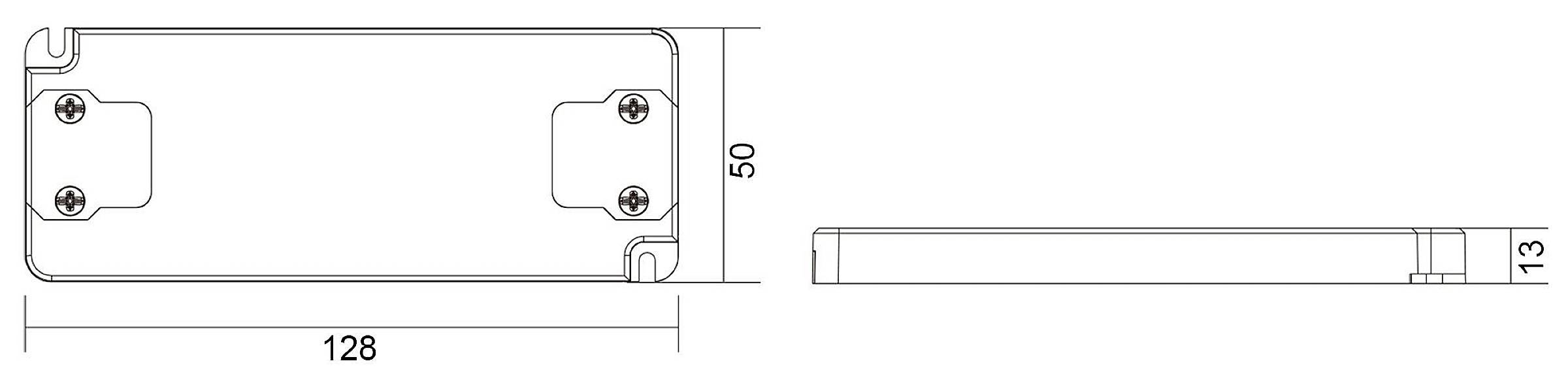

(L x W x H) 128 x 50 x 13 mm
- Factory colour
Black
- Output voltage (max.)
12 V
- Output voltage (min.)
12 V DC
- Max. output current
1670 mA
- Output current (max.) - rounded
1.67 A
- Protection class
II
- LED driver features
Surge protection
IP20
- Connection
Clamp
- Max. power
20 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Power (min.)
20 W
- Power range
20 up to 20 W
- Width
50 mm
- Height
13 mm
- Length
128 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2618217 Deko Light FLAT, CV, UT12V/20W LED driver Constant voltage 20 W 0 - 1670 mA 12 V DC Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618217 Deko Light FLAT, CV, UT12V/20W LED driver Constant voltage 20 W 0 - 1670 mA 12 V DC Surge protection 1 pc(s)
Description
Features
- Compact designFlicker-freeShort-circuit proofOverload protectionOverheating protection
- This text is machine translated.
Scope of delivery
- LED power supply FLAT, CV, UT12V/20W
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
