Deko Light FLAT, CV, UT24V/50W LED driver Constant voltage 50 W 0 - 210 mA 24 V Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

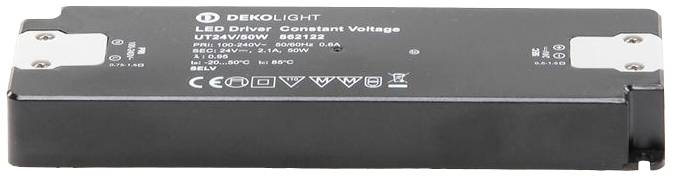

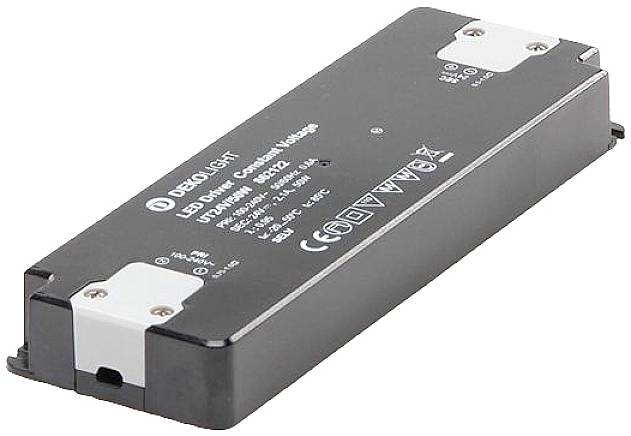

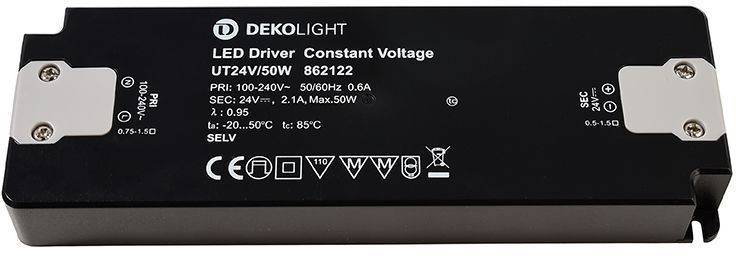

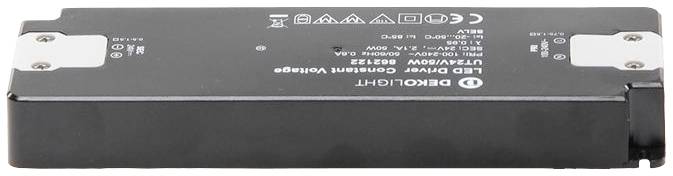

Deko-Light LED-Power supply, FLAT, CV, UT24V/50W
- Constant voltage
- 24 V
- 0 - 210 mA
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim

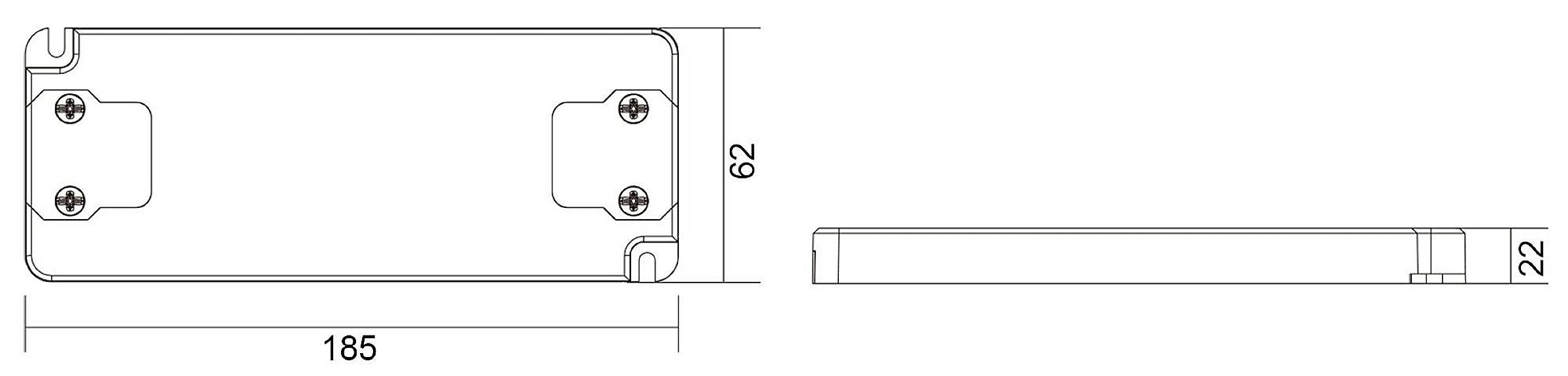

(L x W x H) 185 x 62 x 22 mm
- Factory colour
Black
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Max. output current
210 mA
- Output current (max.) - rounded
210 mA
- Protection class
II
- LED driver features
Surge protection
IP20
- Max. power
50 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Weight
233 g
- Power range
50 W (max)
- Width
62 mm
- Height
22 mm
- Length
185 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2618184 Deko Light FLAT, CV, UT24V/50W LED driver Constant voltage 50 W 0 - 210 mA 24 V Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618184 Deko Light FLAT, CV, UT24V/50W LED driver Constant voltage 50 W 0 - 210 mA 24 V Surge protection 1 pc(s)
Description
Features
- Compact designFlicker-freeShort-circuit proofOverload protectionOverheating protection
Scope of delivery
- LED power supply
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
