Deko Light FLAT LED driver Constant voltage 12 W 12 V 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

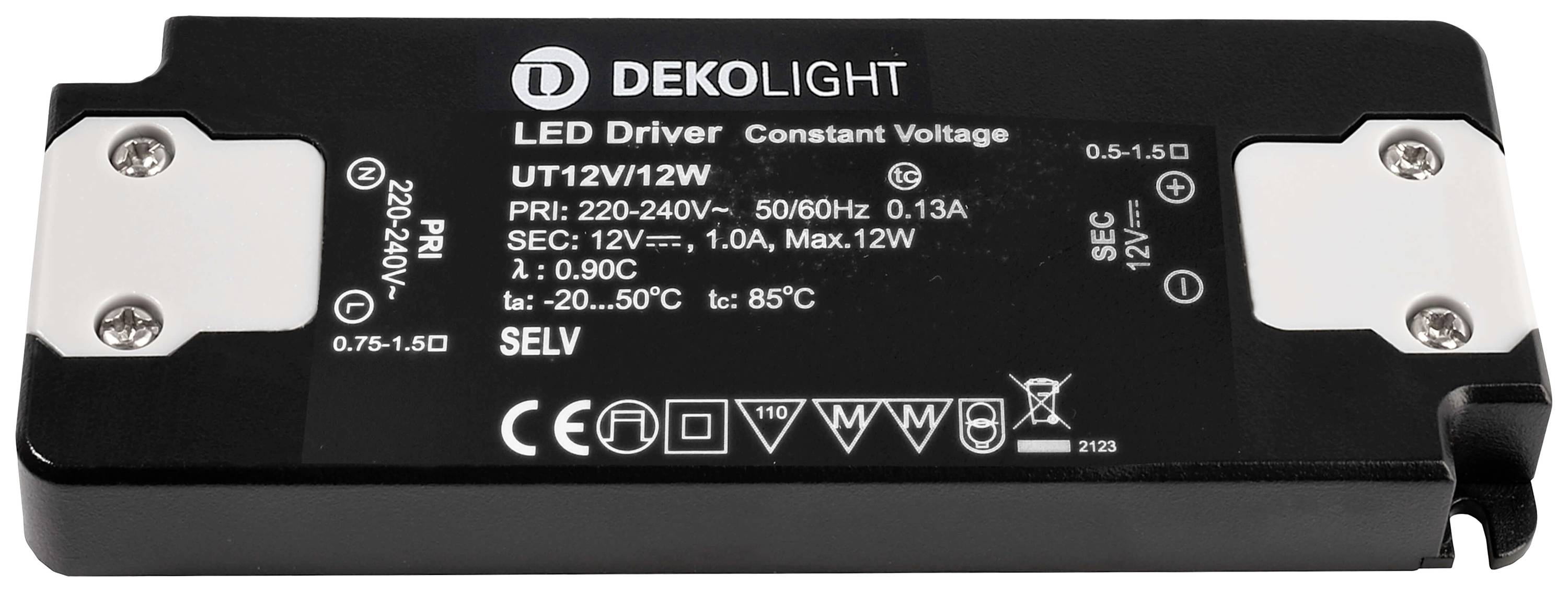

Decorative-Light, power supply unit (CV, DC), FLAT, CV, UT12V/12W, voltage constant, 12.0 W, 220-240 V/AC, output
- Constant voltage
- 12 V
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim

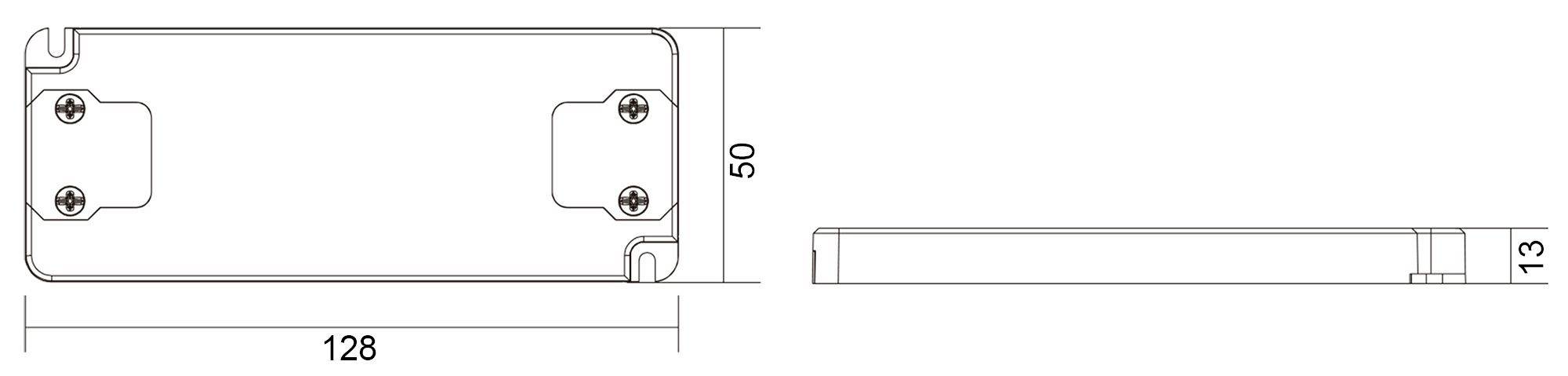

(L x W x H) 128 x 50 x 13 mm
- Output voltage (max.)
12 V
- Protection class
II
IP20
- Connection
Clamp
- Max. power
12 W
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
68 g
- Power range
12 W (max)
- Width
50 mm
- Height
13 mm
- Length
128 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2998382 Deko Light FLAT LED driver Constant voltage 12 W 12 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
