Deko Light IP, CV, V LED transformer Constant voltage 75 W 0 mA - 6.25 A 12 V DC 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

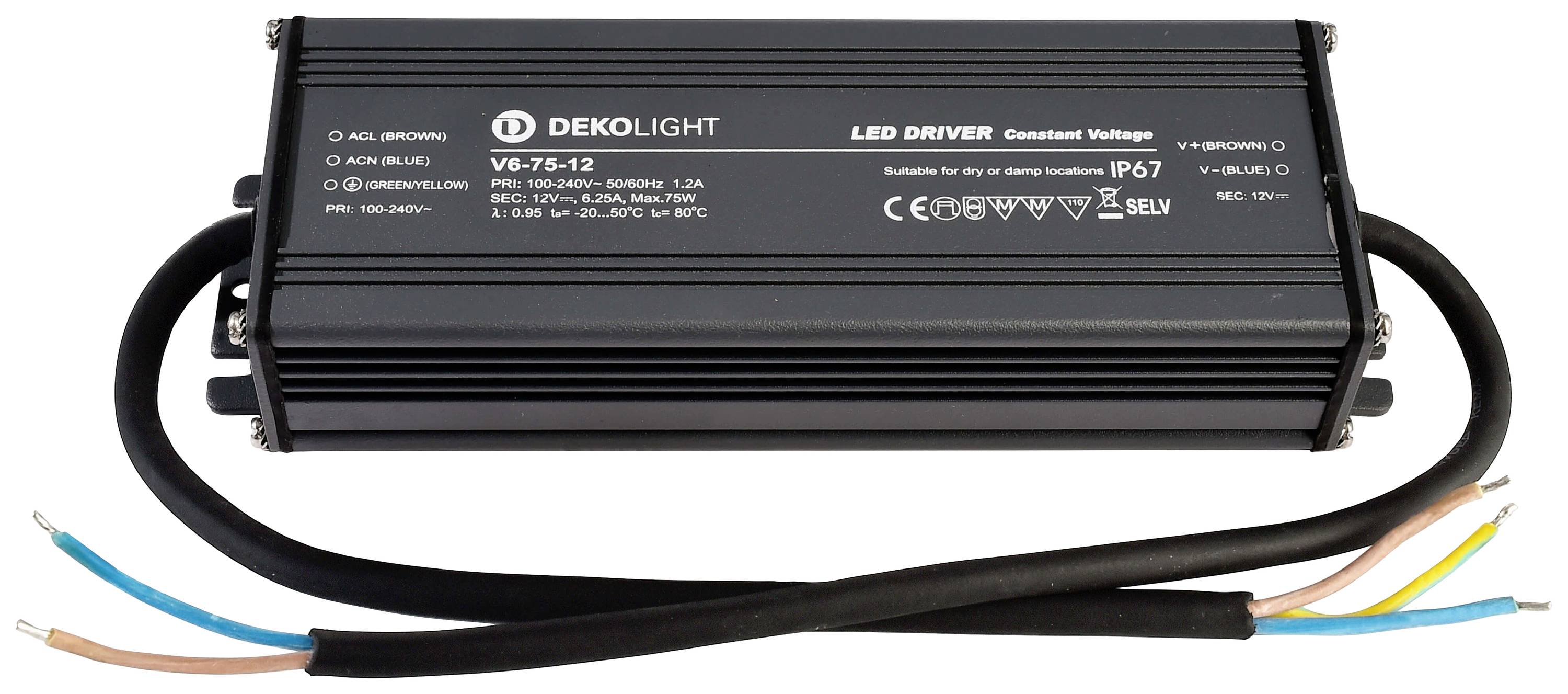

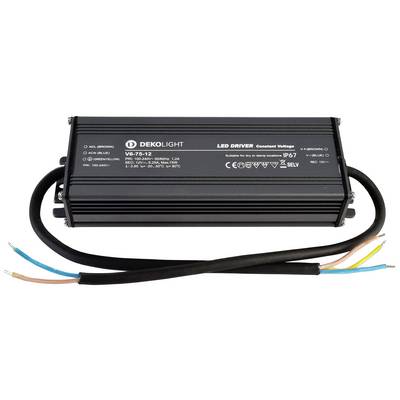

Deco-light LED power supply, IP, CV, V6-75-12, 100-240V AC/50-60Hz, 12 V DC, 1200 mA
- Constant voltage
- 12 V DC
- 0 mA - 6.25 A
Technical specifications
- 0-6250 mA output current
- Material 1: Aluminium Life: 50,000 h
- max. Inrush current (A/µs): 35A/300µs
- Product type
LED transformer
- Type
Constant voltage
- Operating current
6.25 A
- Dim
(L x W x H) 186 x 64 x 39 mm
- Factory colour
Grey
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Max. output current
6.25 A
- Output current (max.) - rounded
6.25 A
- Protection class
I
IP67
- Connection
Open end cable
- Max. power
75 W
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
100
- Power (min.)
75 W
- Power range
75 up to 75 W
- Width
64 mm
- Height
39 mm
- Length
186 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795459 Deko Light IP, CV, V LED transformer Constant voltage 75 W 0 mA - 6.25 A 12 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
