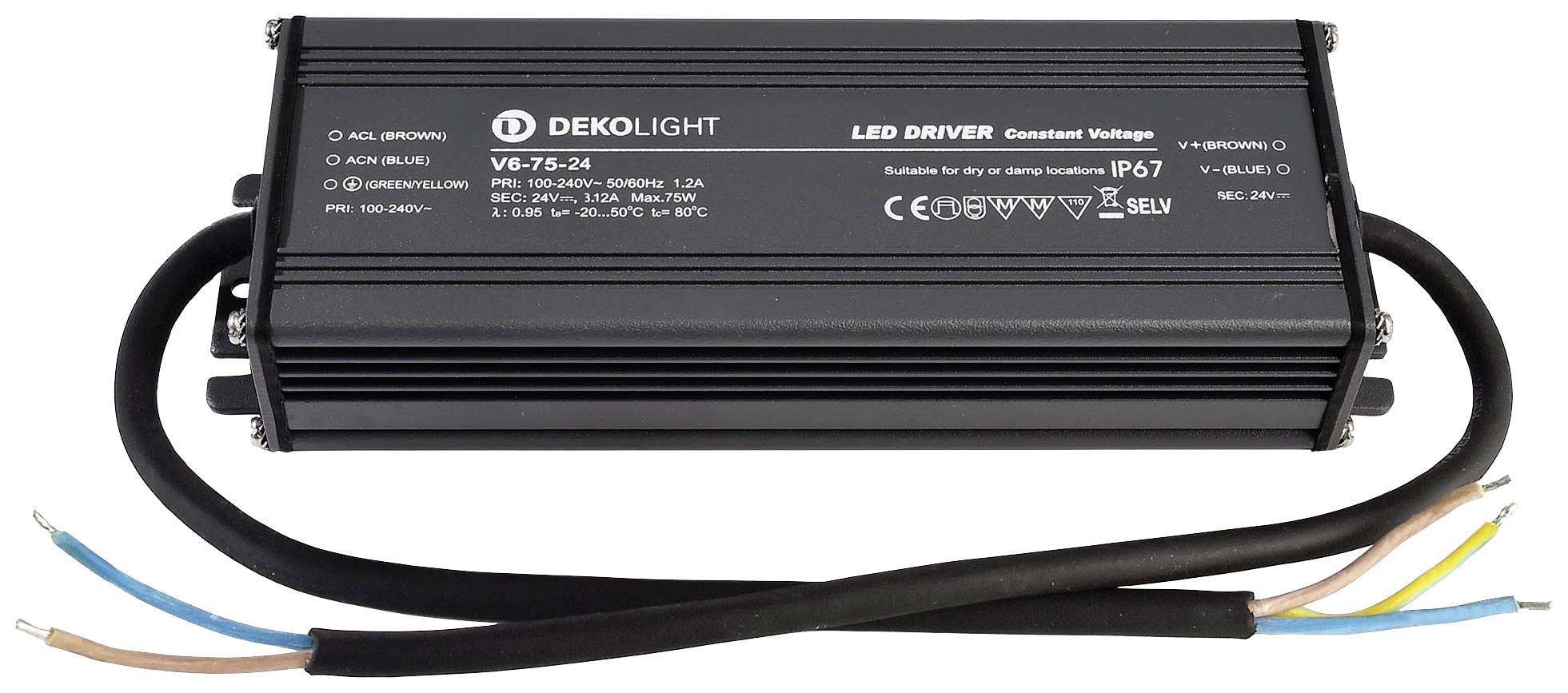

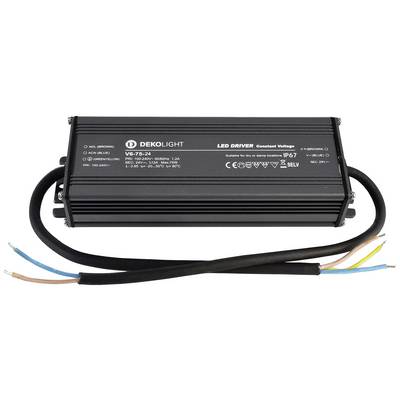

Deko Light IP, CV, V6-75-24 LED driver Constant voltage 75 W 0 - 3125 mA 24 V DC Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Decorative Light LED Power Supply, IP, CV, V6-75-24
- Constant voltage
- 24 V DC
- 0 - 3125 mA
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Operating current
3125 mA
- Dim

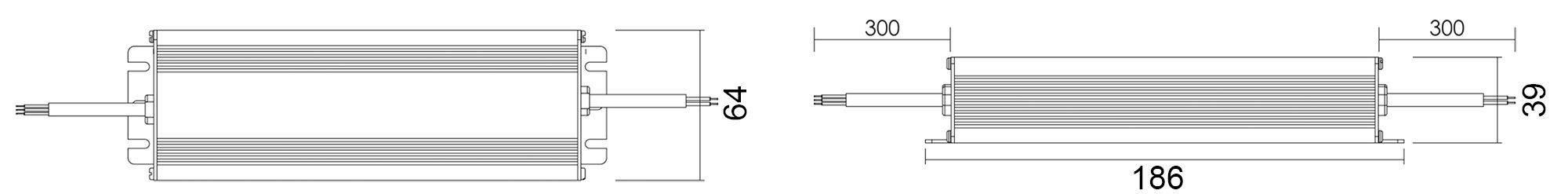

(L x W x H) 186 x 64 x 39 mm
- Factory colour
Black
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V DC
- Max. output current
3125 mA
- Output current (max.) - rounded
3.13 A
- Protection class
I
- LED driver features
Surge protection
IP20
- Connection
Open end cable
- Max. power
75 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Weight
802 g
- Power (min.)
75 W
- Power range
75 up to 75 W
- Width
64 mm
- Height
39 mm
- Length
186 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2618232 Deko Light IP, CV, V6-75-24 LED driver Constant voltage 75 W 0 - 3125 mA 24 V DC Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618232 Deko Light IP, CV, V6-75-24 LED driver Constant voltage 75 W 0 - 3125 mA 24 V DC Surge protection 1 pc(s)
Description
Features
- Robust housingFlicker-freeShort-circuit proofOverload protectionOverheating protectionCompact design
- This text is machine translated.
Scope of delivery
- LED power supply IP, CV, V6-75-24
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
