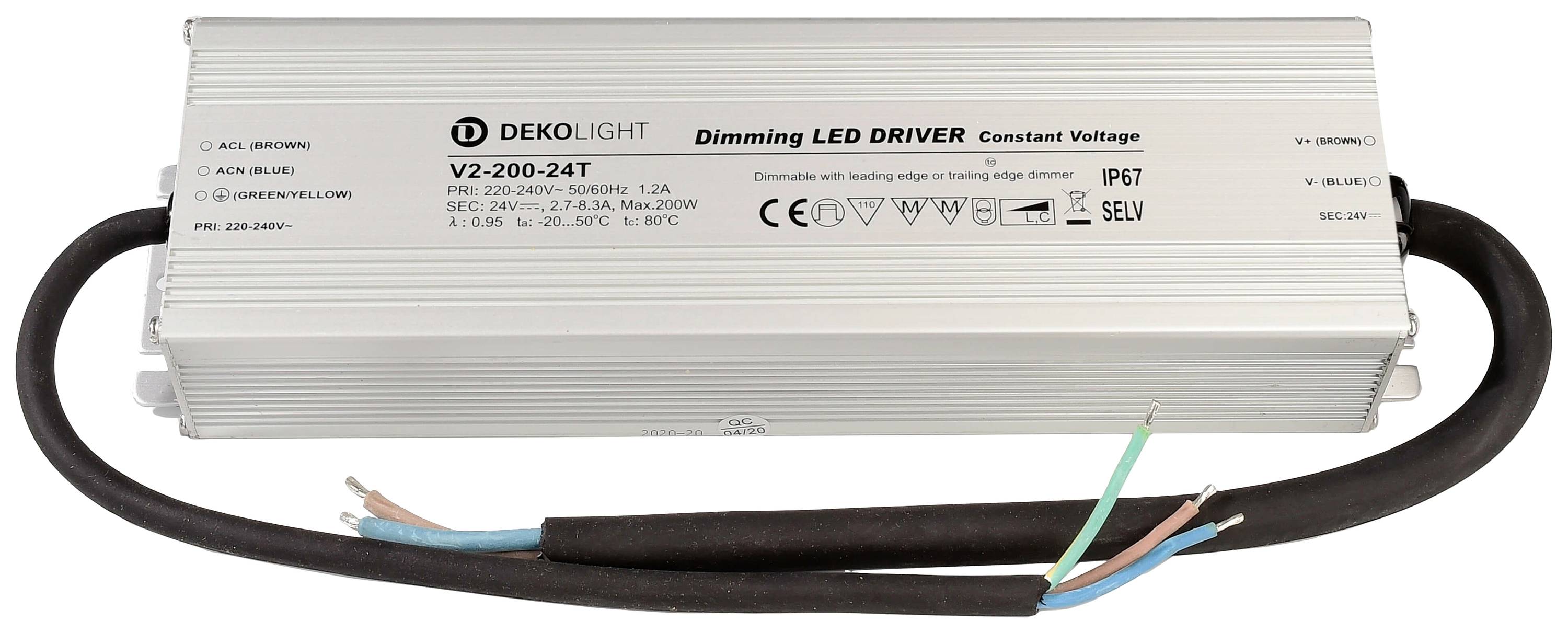

Deko Light IP, DIM CV LED transformer Constant voltage 200 W 2700 mA - 8.30 A 24 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
IP, DIM CV
- Constant voltage
- 24 V DC
- 2700 mA - 8.30 A
Technical specifications
- Output current 2700-8300 mA
- Activation: Phase forward / phase section
- Material 1: Aluminium
- max. Inrush current (A/µs): 45A/100µs
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 249 x 72 x 40 mm
- Factory colour
Silver
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Max. output current
8.30 A
- Output current (max.) - rounded
8.3 A
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Open end cable
- Max. power
200 W
- Output current (min.)
2700 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
66 W
- Power range
66 up to 200 W
- Width
72 mm
- Height
40 mm
- Length
249 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795469 Deko Light IP, DIM CV LED transformer Constant voltage 200 W 2700 mA - 8.30 A 24 V DC dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
