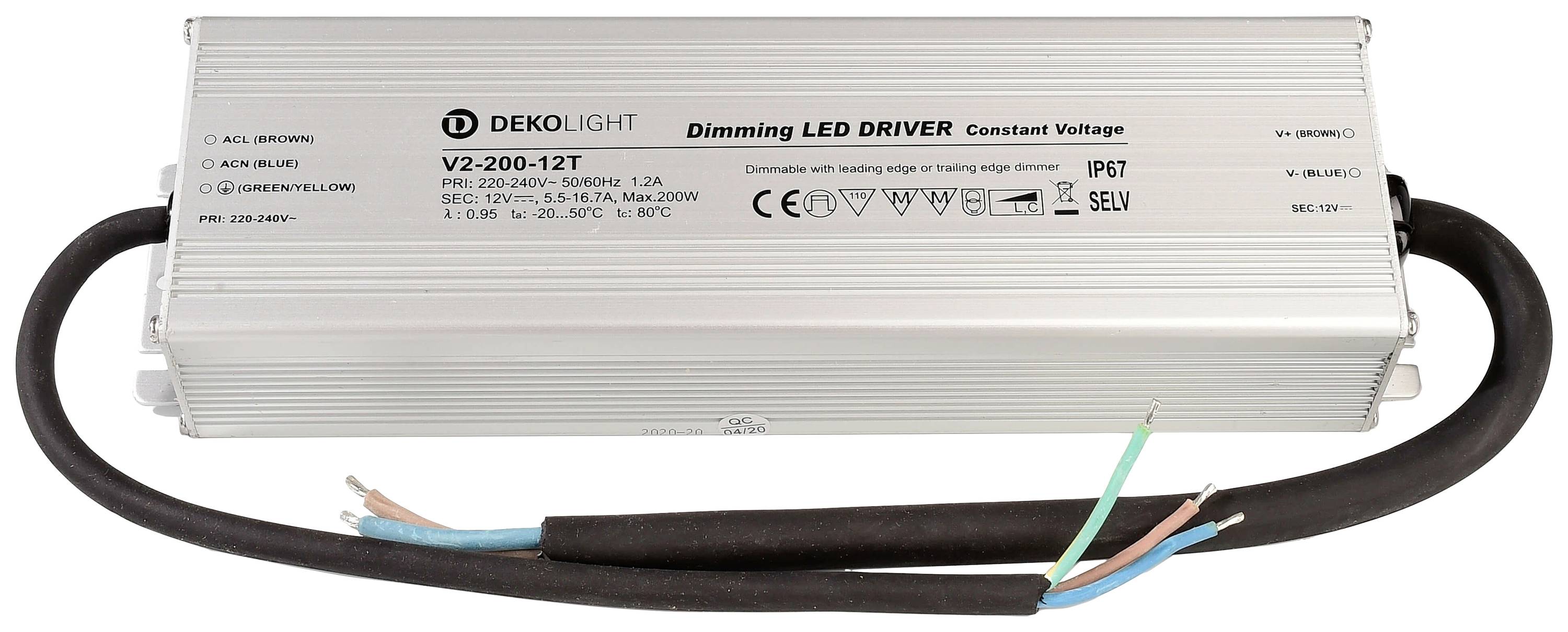

Deko Light IP, DIM CV LED transformer Constant voltage 200 W 5500 mA - 16.70 A 12 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Deko-Light LED power supply, IP, DIM CV, 12V 66-200W, dimmable
- Constant voltage
- 12 V DC
- 5500 mA - 16.70 A
Technical specifications
- Output current 5500-16700 mA
- Activation: Phase forward / phase section
- Material 1: Aluminium
- max. Inrush current (A/µs): 45A/100µs
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 249 x 72 x 40 mm
- Factory colour
Silver
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Max. output current
16.70 A
- Output current (max.) - rounded
16.7 A
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Open end cable
- Max. power
200 W
- Output current (min.)
5500 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
66 W
- Power range
66 up to 200 W
- Width
72 mm
- Height
40 mm
- Length
249 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795468 Deko Light IP, DIM CV LED transformer Constant voltage 200 W 5500 mA - 16.70 A 12 V DC dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
