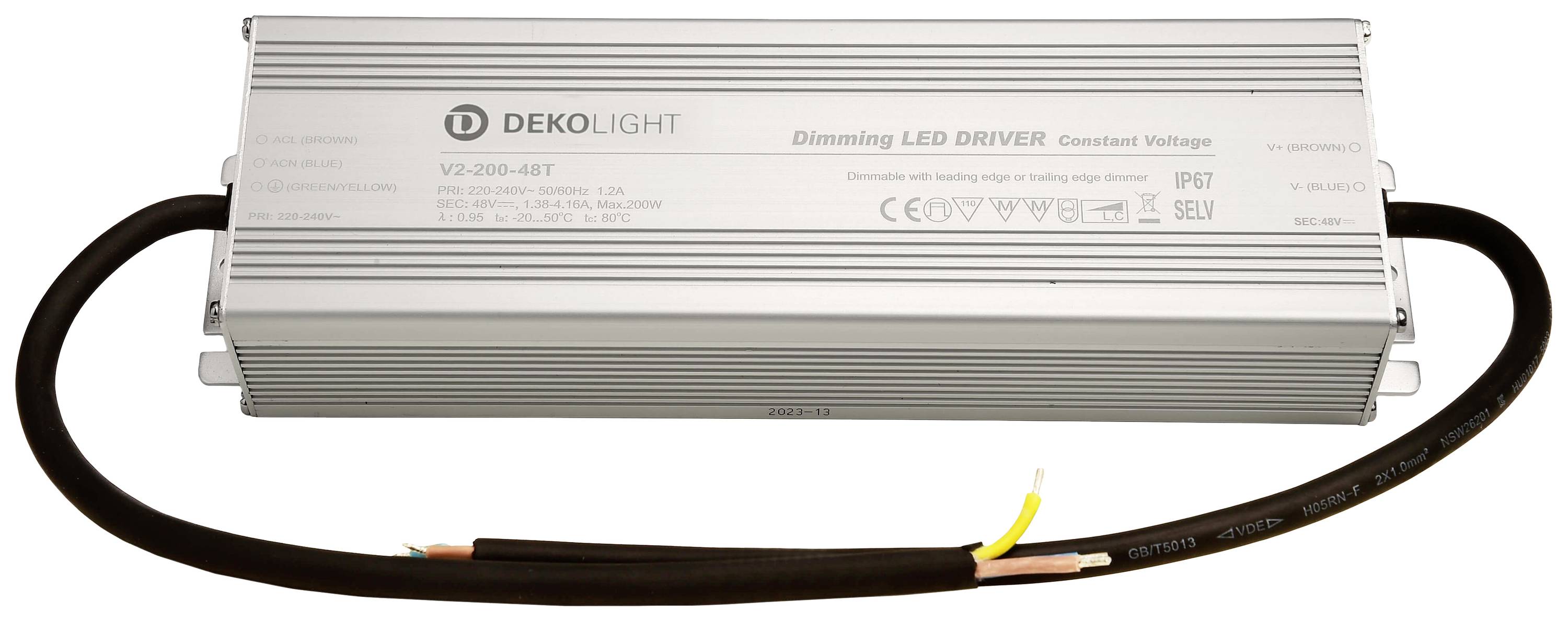

Deko Light LED dimmer Constant voltage 200 W 48 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Decorative-Light, dimmable power supply (CV, DC), LED power supply, IP, DIM, CV, 48V, 66-200W, VOLTAGE CONSTANT,
- Constant voltage
- 48 V
Technical specifications
- Product type
LED dimmer
- Type
Constant voltage
- Dim

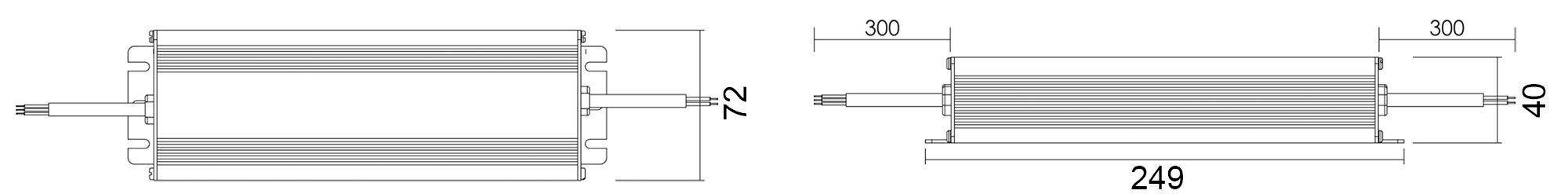

(L x W x H) 249 x 72 x 40 mm
- Output voltage (max.)
48 V
- Output voltage (min.)
48 V
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Open end cable
- Max. power
200 W
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
1250 g
- Power (min.)
66 W
- Power range
66 up to 200 W
- Width
72 mm
- Height
40 mm
- Length
249 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2998388 Deko Light LED dimmer Constant voltage 200 W 48 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
