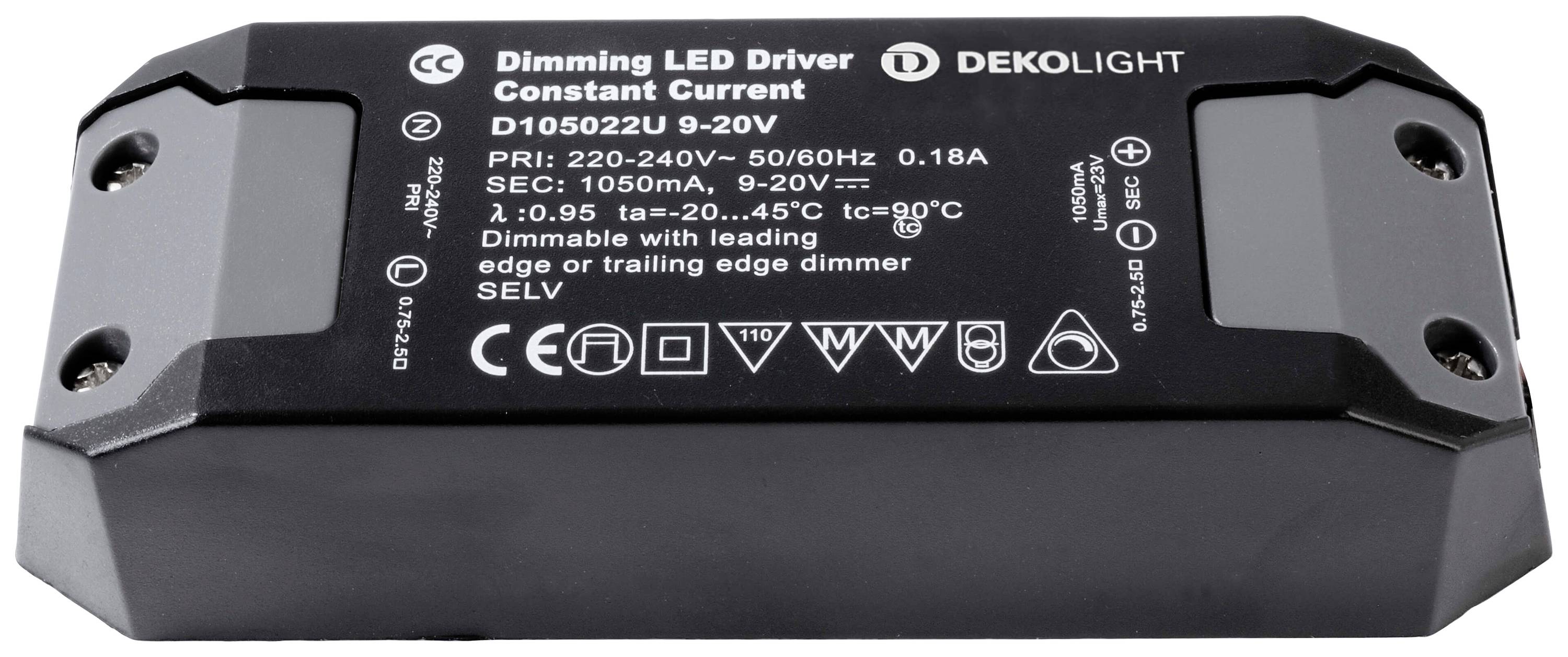

Deko Light LED driver Constant voltage 1050 mA 23 V 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Decorative-Light, dimmable power supply (CC, DC), BASIC, DIM, CC, D105022U/22W, current stability, with phase switch
- Constant voltage
- 23 V
- 1050 mA
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim

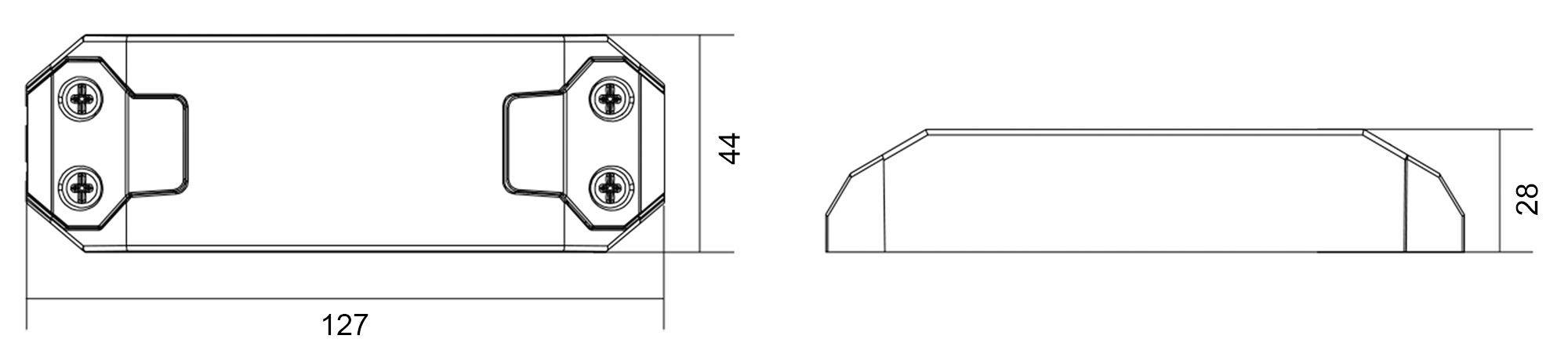

(L x W x H) 127 x 44 x 28 mm
- Output voltage (max.)
23 V
- Max. output current
1050 mA
- Output current (max.) - rounded
1.05 A
- Protection class
II
IP20
- Connection
Clamp
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
120 g
- Width
44 mm
- Height
28 mm
- Length
127 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2998389 Deko Light LED driver Constant voltage 1050 mA 23 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
