Deko Light LED-Netzgerät steckerfertig inkl. 6fach Verteiler für Herculis Displayleuchte LED driver Constant current 0.3
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED-Netzgerät steckerfertig inkl. 6fach Verteiler für Herculis Displayleuchte
- Constant current
- 2 - 57 V DC
- 0.35 A
Technical specifications
- Output current: 350 mA
- Material 1: Plastic
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 2475 x 20 x 13 mm
- Factory colour
White
- Output voltage (max.)
57 V DC
- Output voltage (min.)
2 V DC
- Max. output current
0.35 A
- Output current (max.) - rounded
350 mA
- Protection class
II
IP20
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
20 W
- Power range
20 W (min)
- Width
20 mm
- Height
13 mm
- Length
2475 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 2795672 Deko Light LED-Netzgerät steckerfertig inkl. 6fach Verteiler für Herculis Displayleuchte LED driver Constant current 0.3
User & Safety Instructions
User & Safety Instructions 2795672 Deko Light LED-Netzgerät steckerfertig inkl. 6fach Verteiler für Herculis Displayleuchte LED driver Constant current 0.3
Description
Scope of delivery

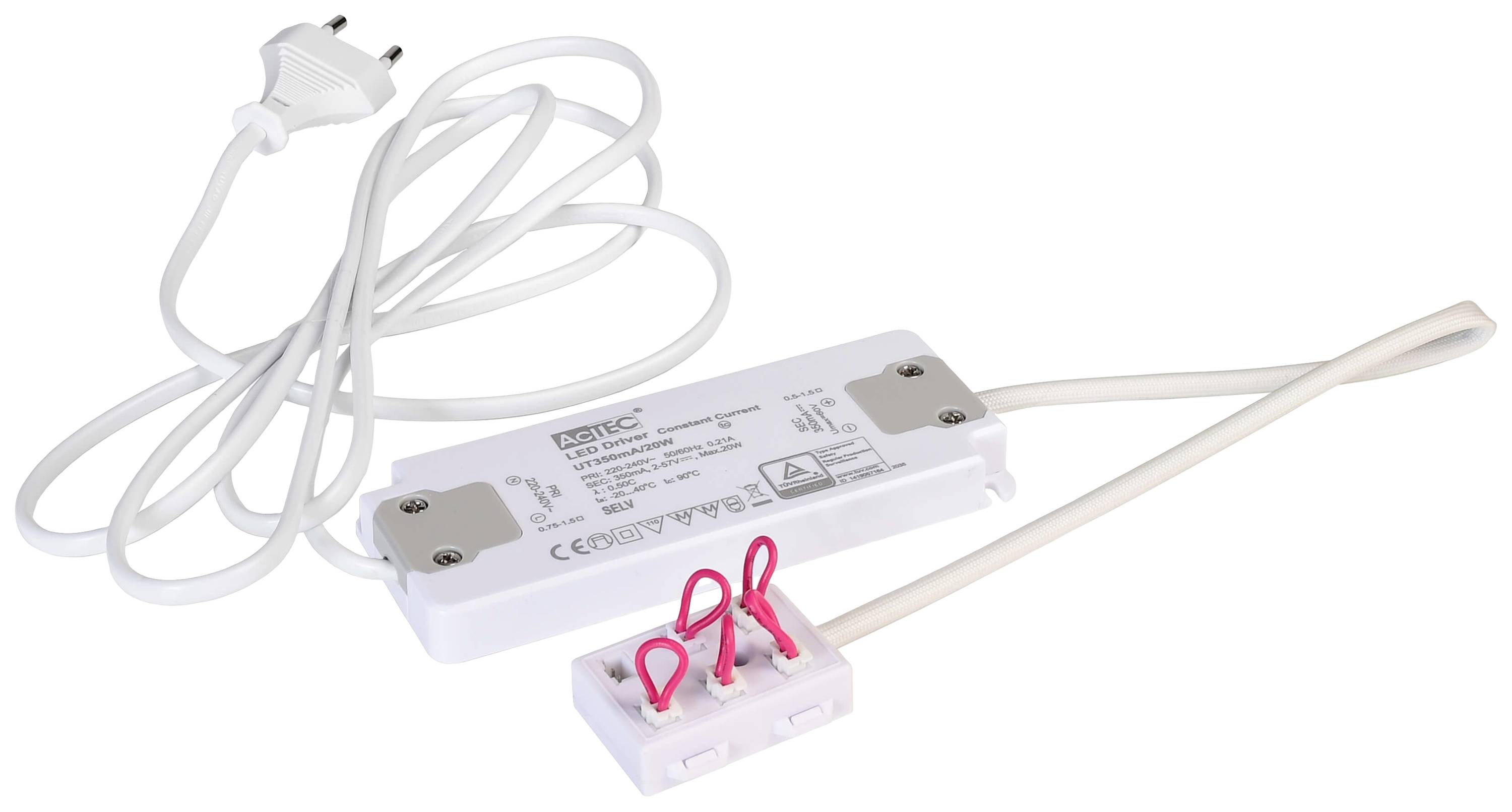

- 2 m connection cable with power plugPower supply CC 350 mA / 20W6-way connection box
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
