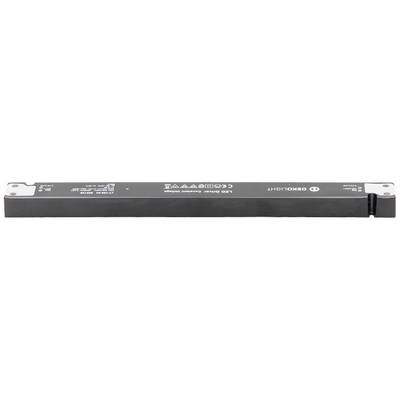

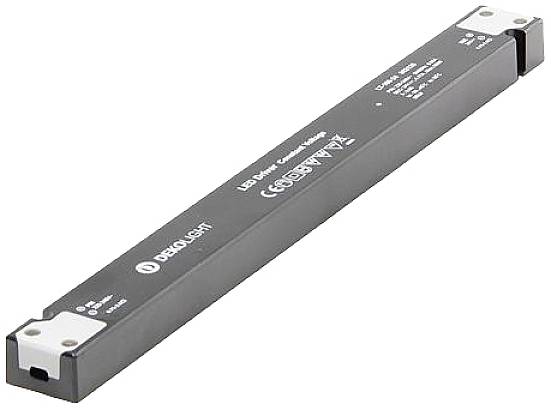

Deko Light LONG-FLAT, CV, LT-100-24 LED driver Constant voltage 100 W 0 - 4170 mA 24 V Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Decorative Light LED power supply, LONG-FLAT, CV, LT-100-24
- Constant voltage
- 24 V
- 0 - 4170 mA
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim

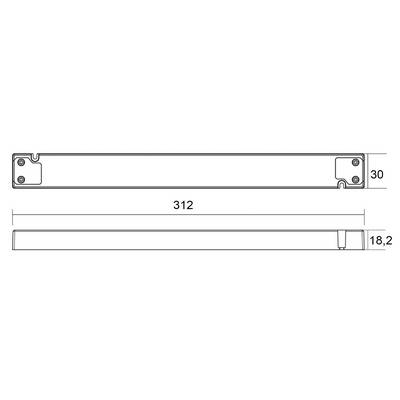

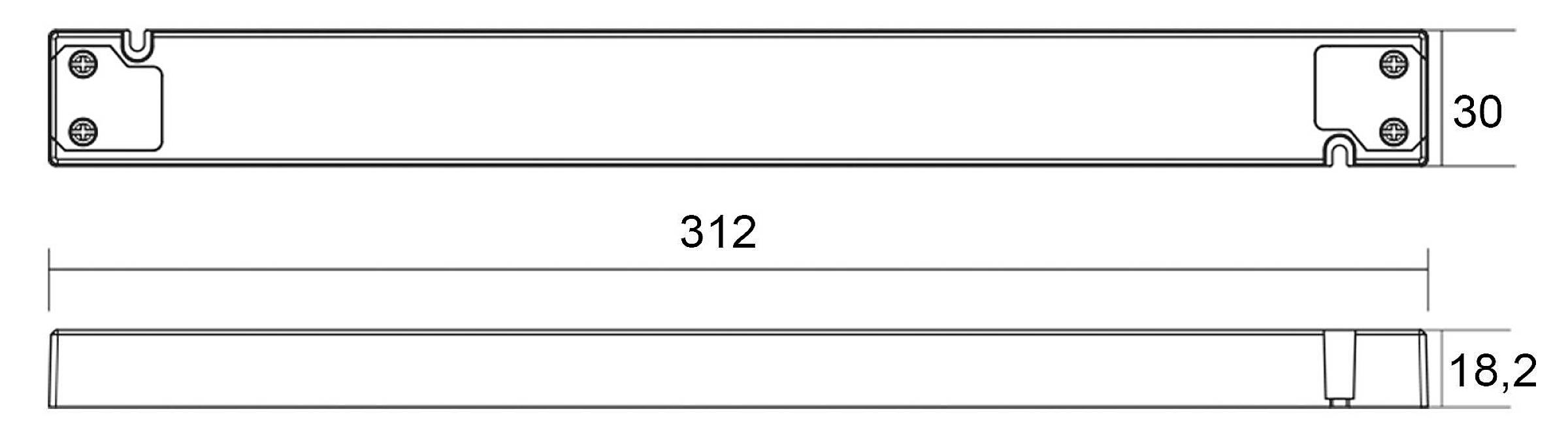

(L x W x H) 312 x 30 x 18.2 mm
- Factory colour
Black
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Max. output current
4170 mA
- Output current (max.) - rounded
4.17 A
- Protection class
II
- LED driver features
Surge protection
IP20
- Connection
Clamp
- Max. power
100 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
152 g
- Power range
100 W (max)
- Width
30 mm
- Height
18.2 mm
- Length
312 mm
- Max. temperature
45 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 2618186 Deko Light LONG-FLAT, CV, LT-100-24 LED driver Constant voltage 100 W 0 - 4170 mA 24 V Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618186 Deko Light LONG-FLAT, CV, LT-100-24 LED driver Constant voltage 100 W 0 - 4170 mA 24 V Surge protection 1 pc(s)
Description
This quite new power supply series has a decent power under the hood« and e.g. 100 watts of concentrated CV power at just 30 x 18 mm cross-section! This power supply unit therefore fits in most of the ceiling vots, shadow joints or even in all other installation situations with little space.
This text is machine translated.
This text is machine translated.
Features
- Compact designFlicker-freeShort-circuit proofOverload protectionOverheating protectionPerfect for installation in ceiling vots
Scope of delivery
- LED POWER SUPPLY, LONG-FLAT, CV, LT-100-24
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
