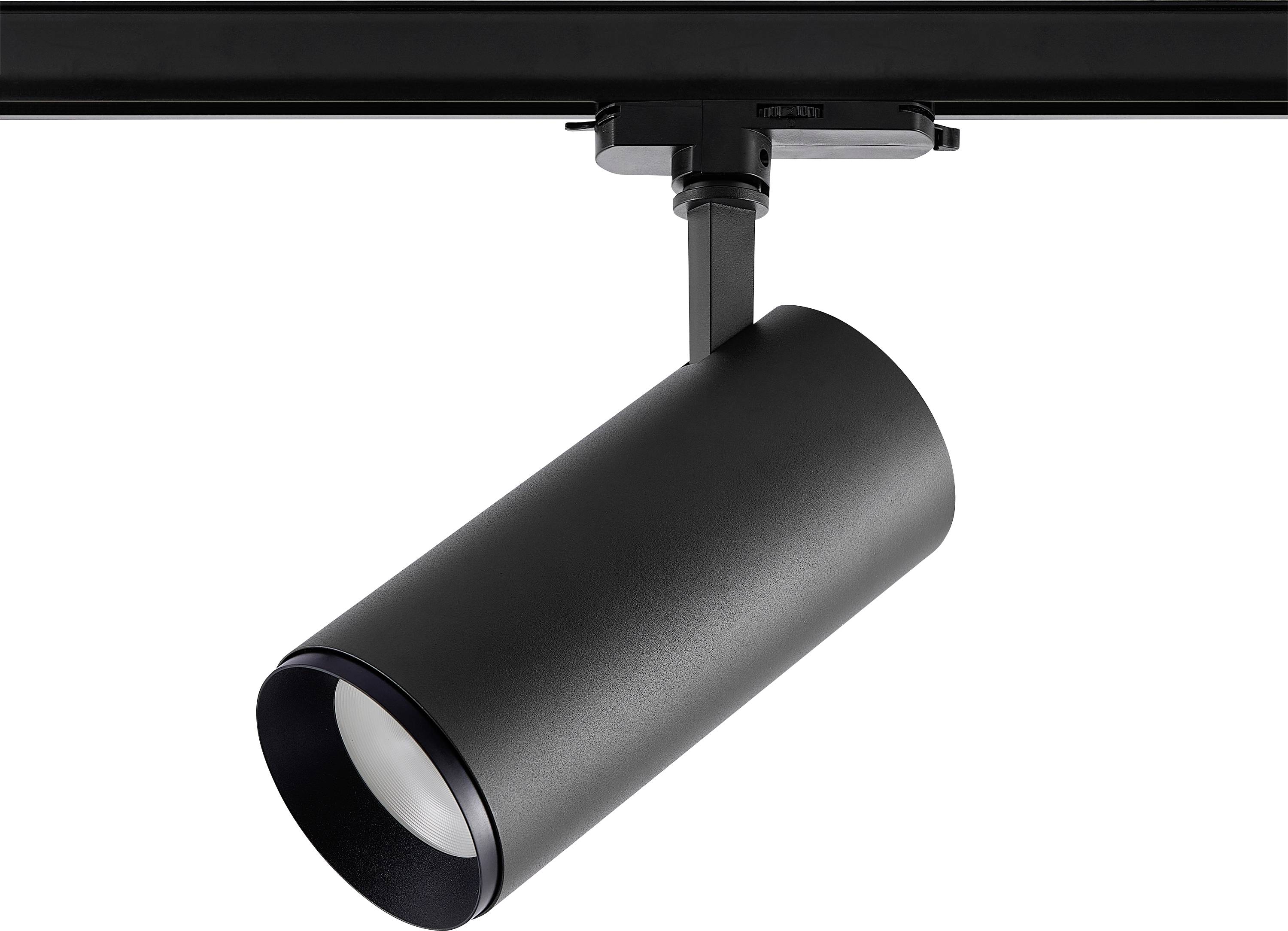

Black cylindrical track spotlight mounted on a ceiling track, angled downward on a white background.

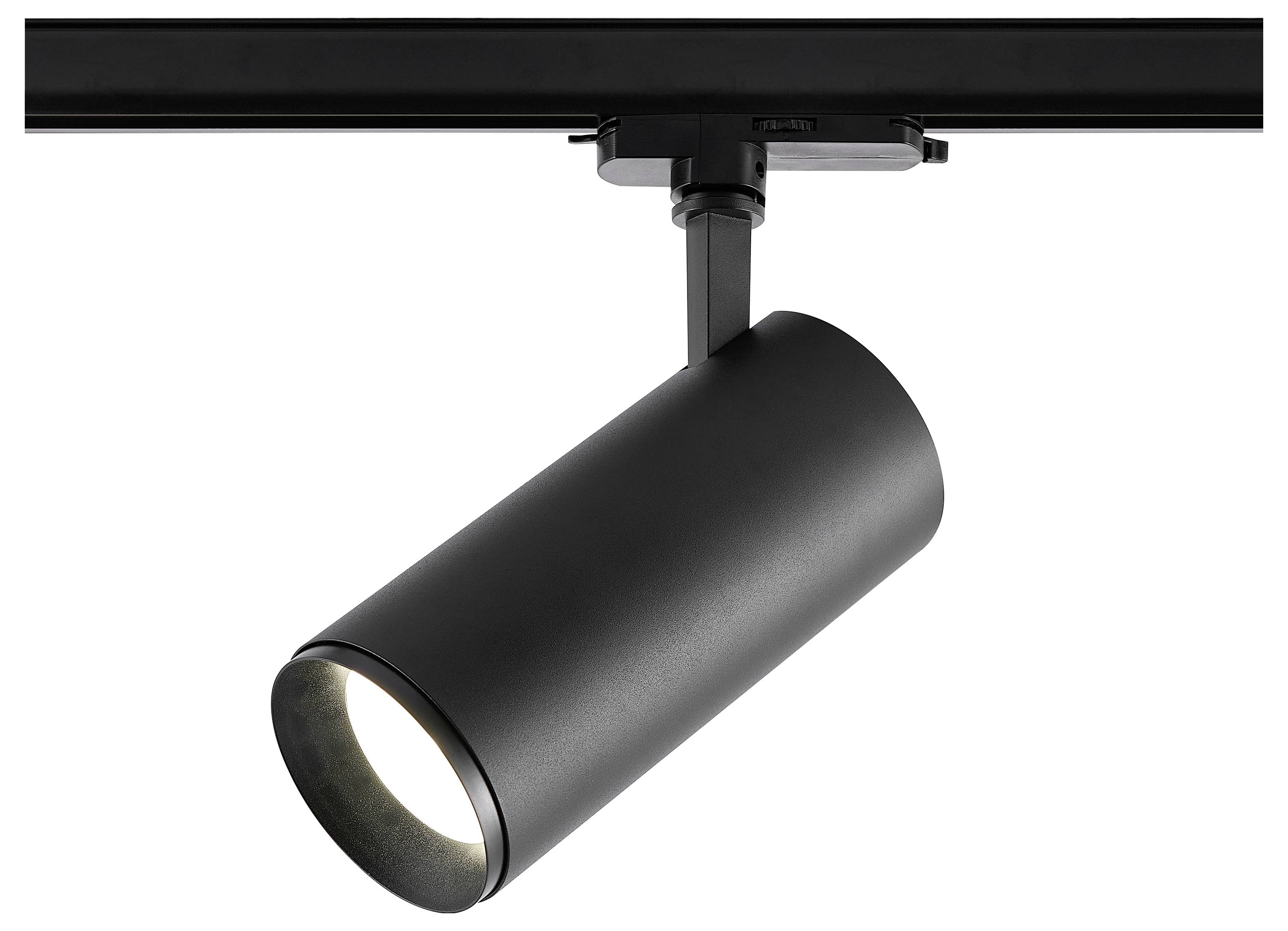

Black cylindrical track spotlight mounted on a ceiling track, angled downward and lit against a white background.

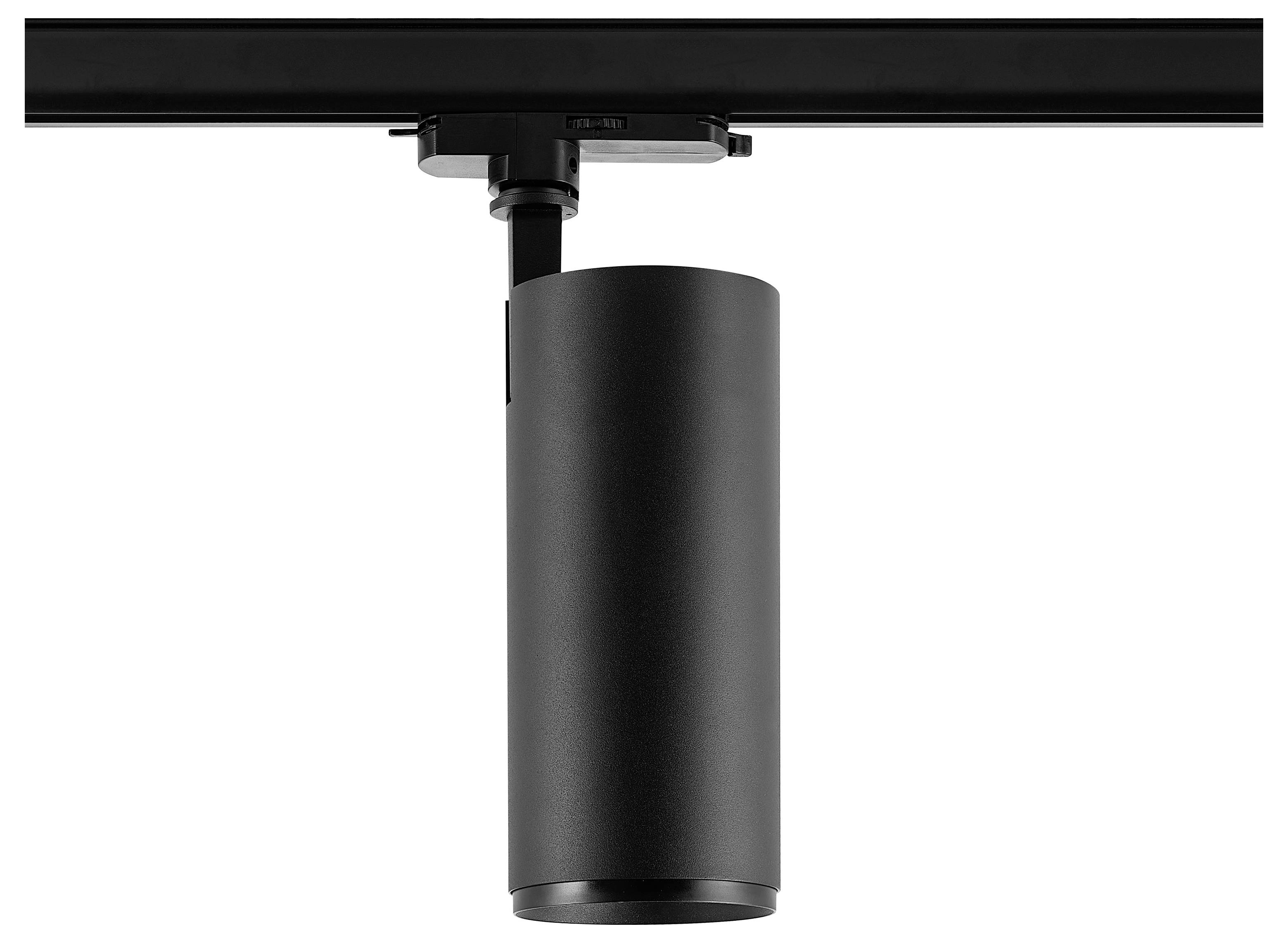

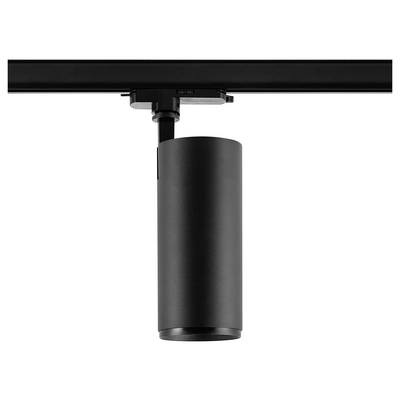

Black cylindrical track light fixture hanging from a ceiling track on a white background.

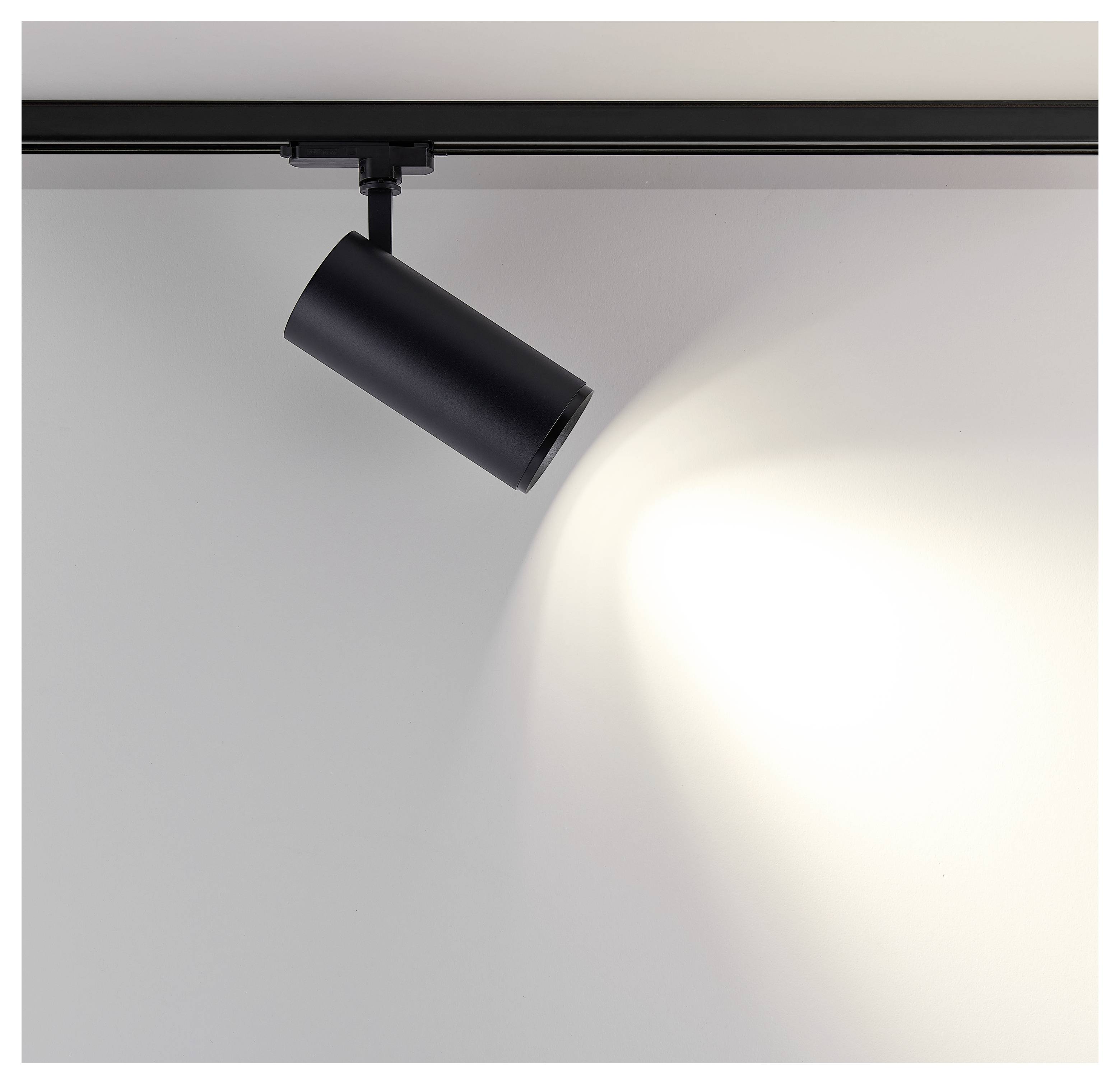

Black track spotlight on a ceiling rail, angled to illuminate a white wall with a bright circular beam.<br>

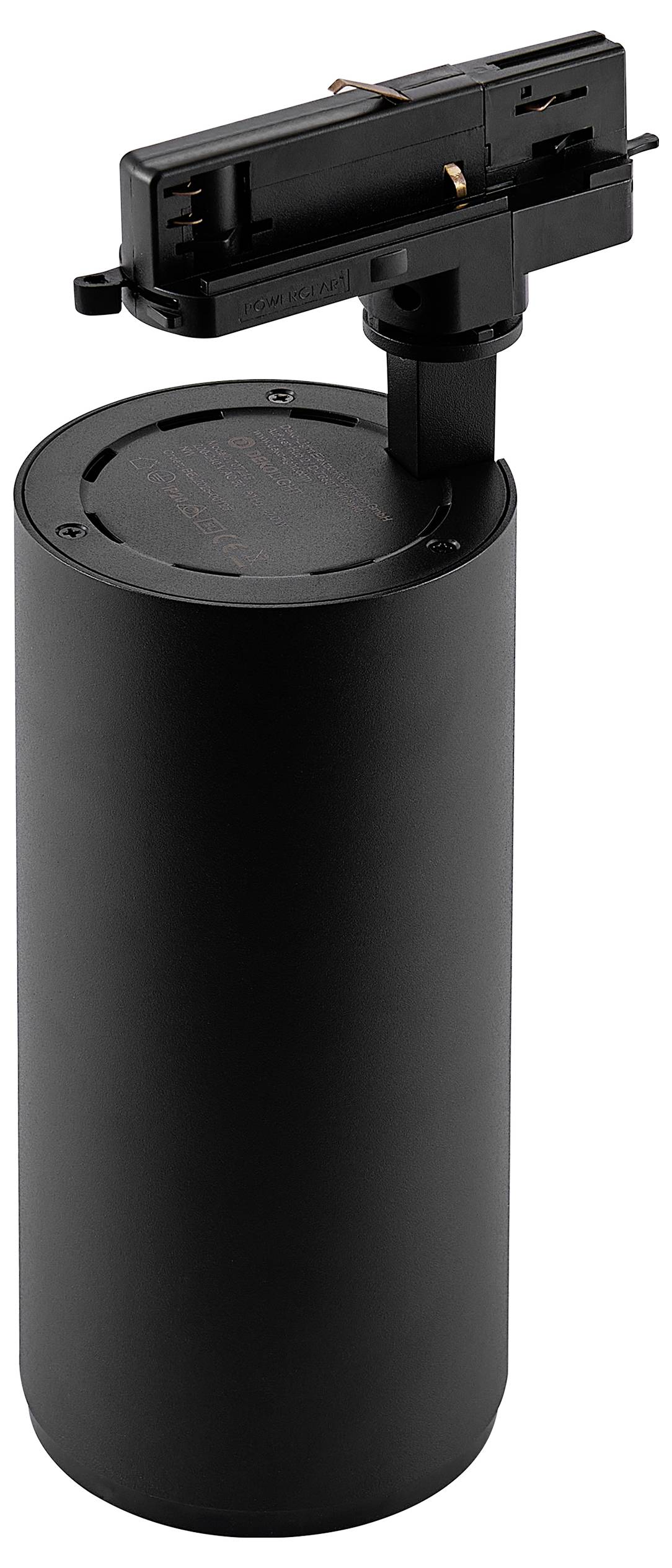

Black cylindrical bin with a mounted top sensor/holder assembly on a white background.

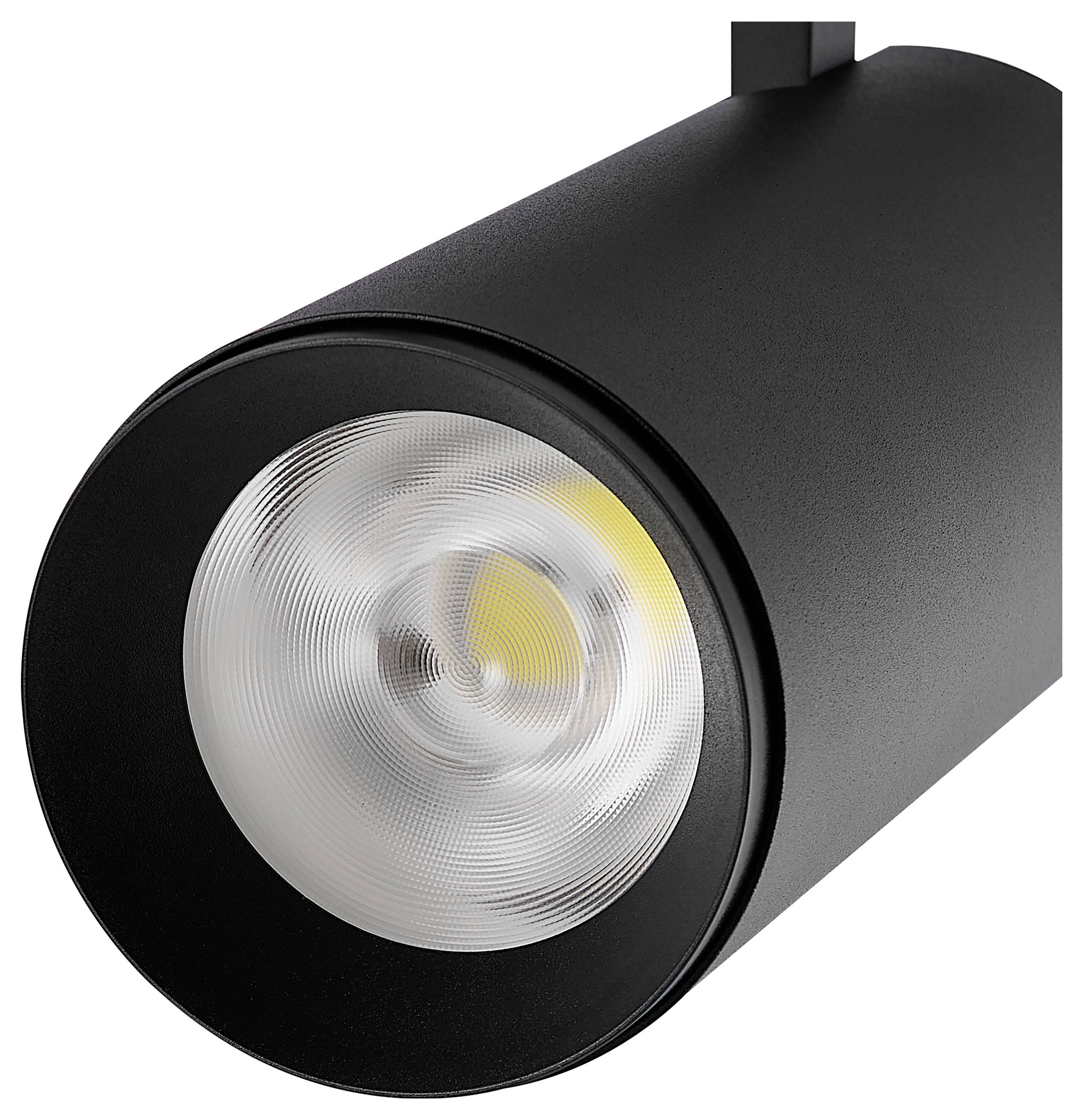

Black cylindrical track light fixture with a circular LED lens, shown on a white background.

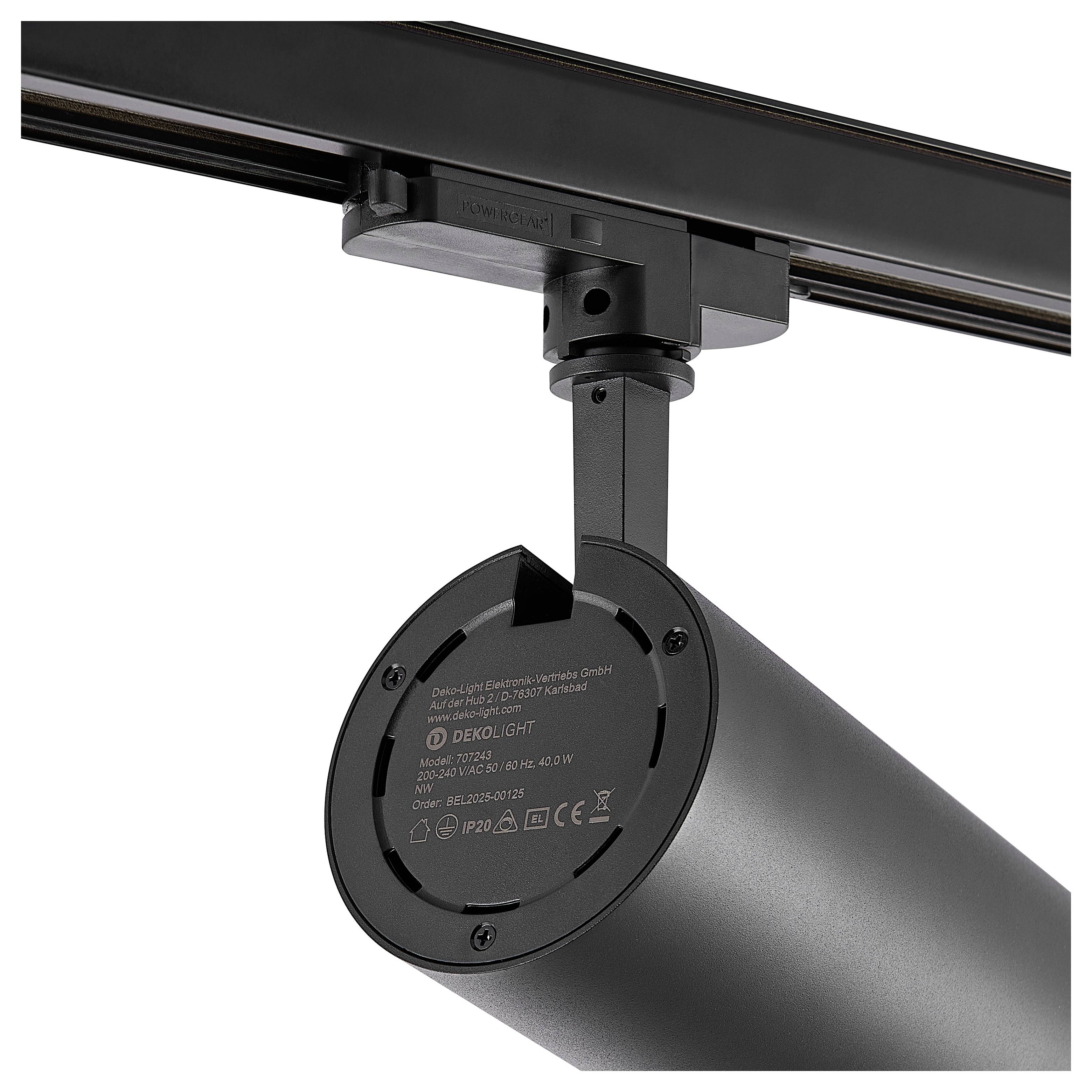

Black cylindrical track light mounted on a ceiling track, shown close up against a white background.

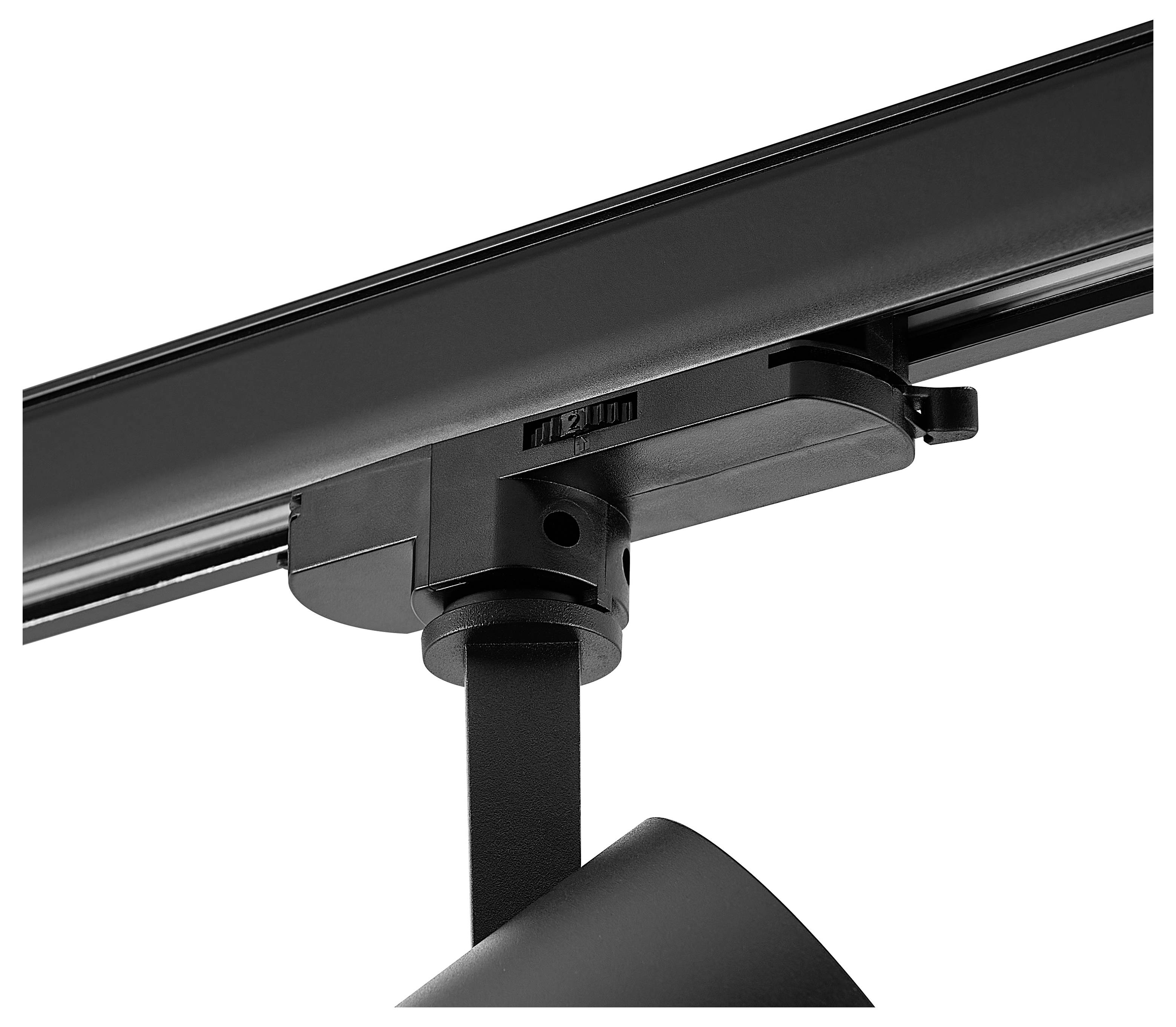

Close-up of a black track light mounted to a ceiling rail, showing the adjustable connector and spotlight head.

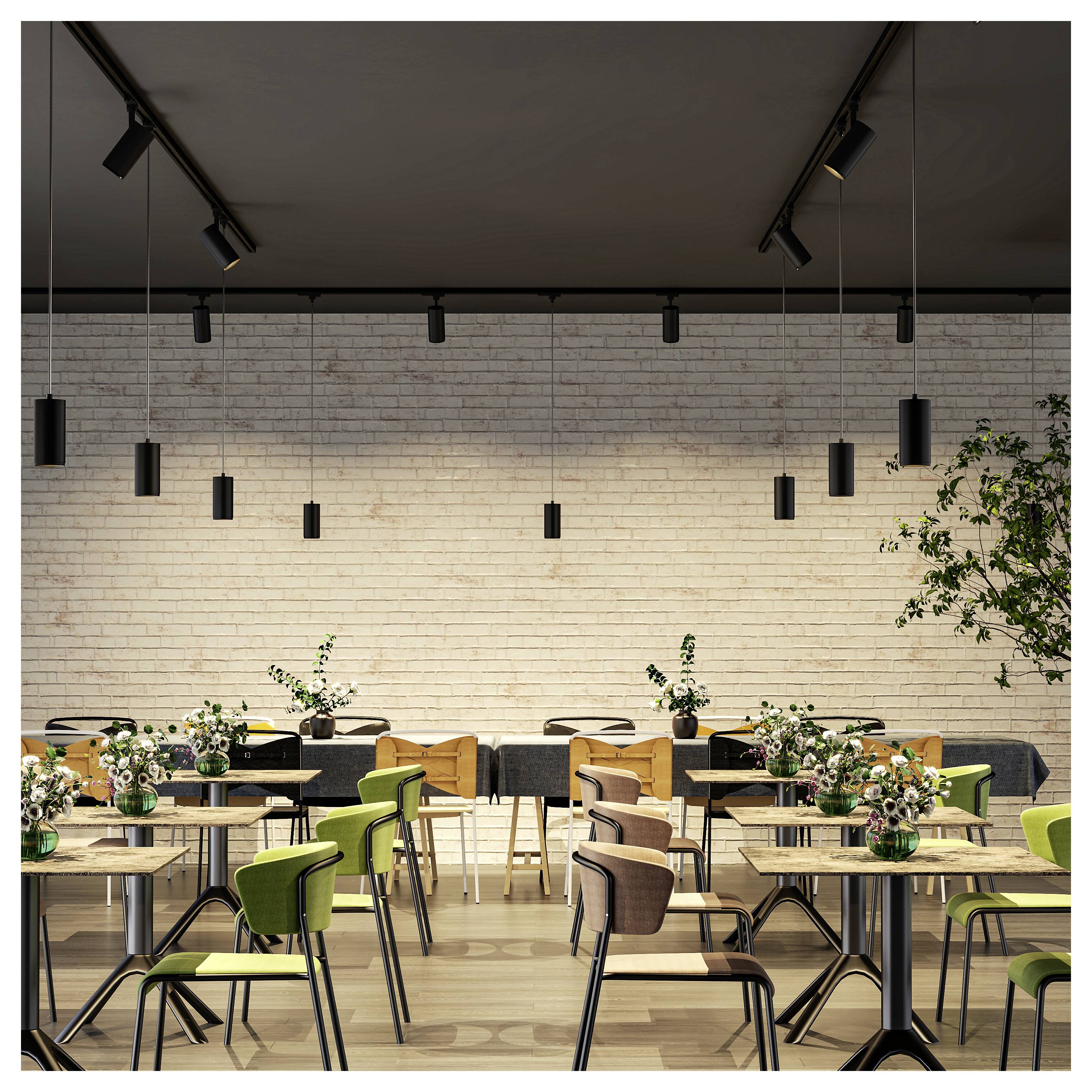

Modern café or restaurant interior with empty wooden tables, green chairs, small flower arrangements, pendant lights, and a white brick wall<br>

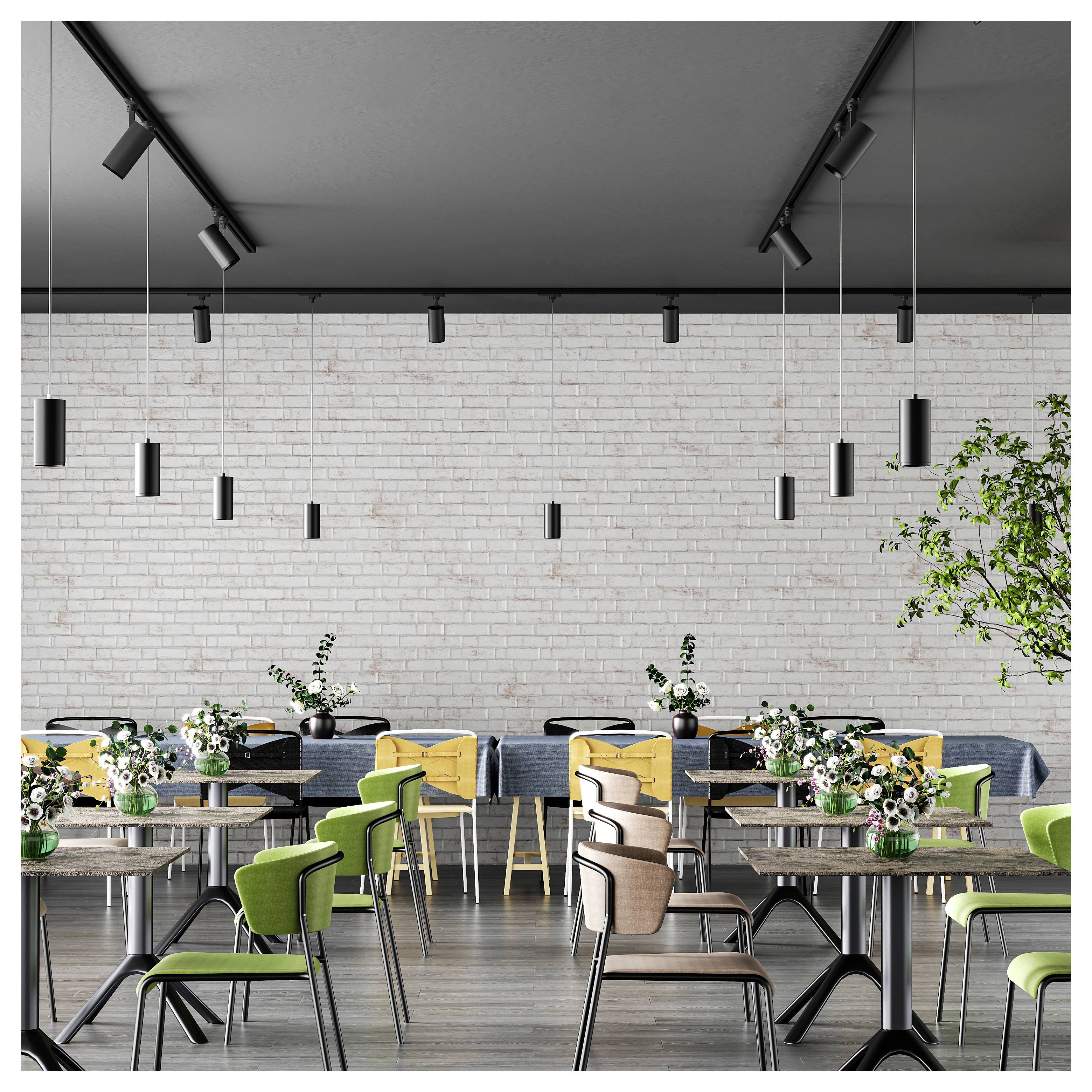

Modern cafe or restaurant interior with green and tan chairs, wooden tables, pendant lights, and a white brick wall with plants and flowers.<br>

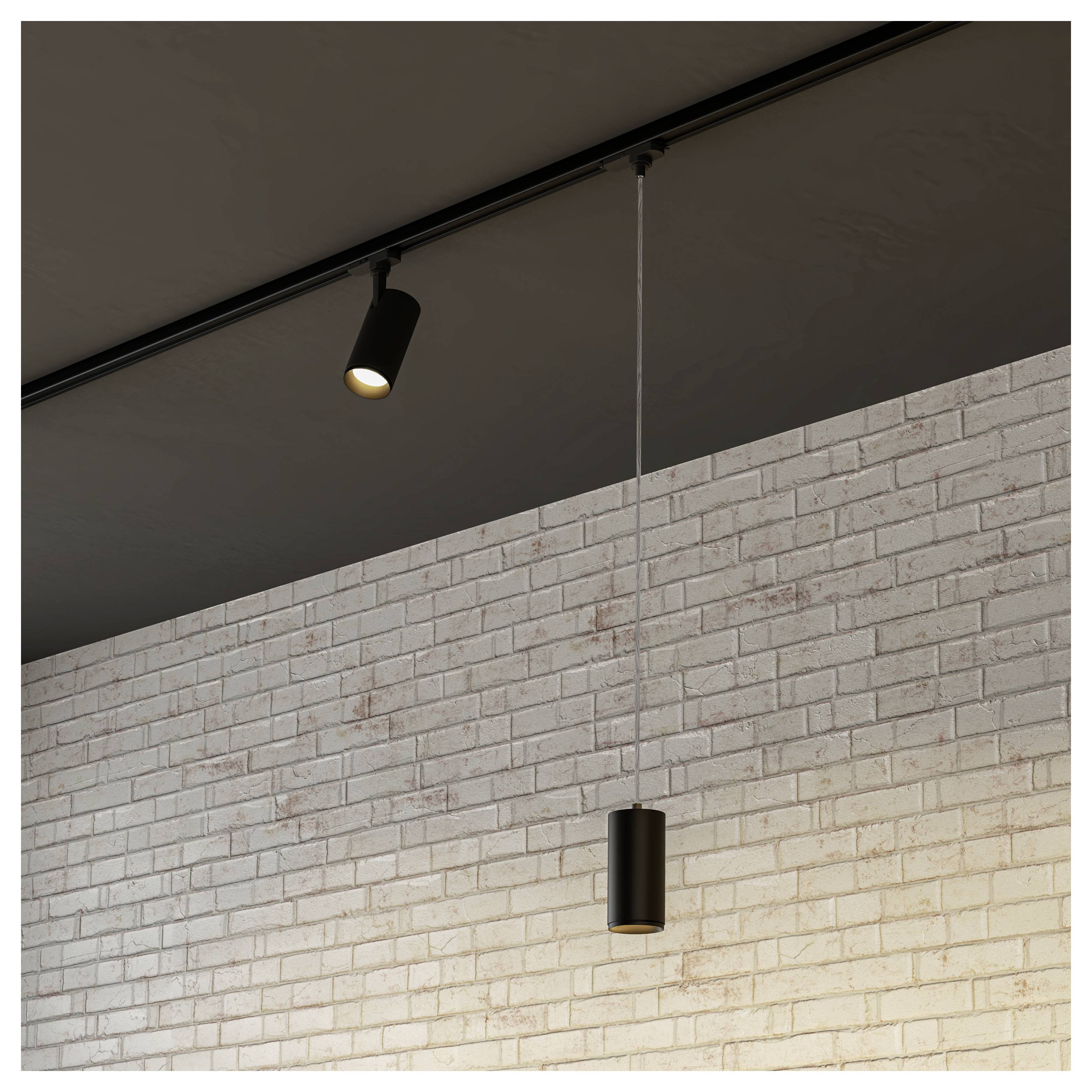

Two black ceiling track lights, one spotlight and one hanging pendant, illuminate a white brick wall.

1/11

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Deco Light 3-phase Spot - LUCEA 40 Tilt, 40 W, DALI, 4000 K, black

Power= 40 W
Total luminous flux= 4480 lm
Colour temperature= 4000 K
Neutral white

Technical specifications

Starting current max. 25.6 A / 77.5 µs
Voltage range emergency lighting 176-280 V/DC
EOFI: 100%
Light source: Replaceable light source TC
Light distribution: Symmetric
Colour consistency 3 SDCM
Switching cycles 100000
Power factor 0.9
Max. Number of LS B10: 26
Max. Number of LS B16: 42
Max. Number of LS C10: 26
Max. Number of each LS C16: 42
Operating temperature -20 to +40°C.
Storage temperature -20 to 65 °C.
Input voltage 200-240 V/AC
Control: Intelli Push-Dim, DALI 2.0 / DT6
UGR 16
Function: Emergency power capable, phase switch

Product type: 3-phase lighting

Operating voltage: 240 V AC

Bulb type: LED (monochrome)

: 40 W

: 4000 K

Colour: Neutral white

Total luminous flux: 4480 lm

Energy consumption: 40 kWh/1000h

Light features: Dimmable
Pivoted
Swivelling

Rotation range (max.): 350°

Swivel range (max.): 90°

Radiation angle: 36°

: IP20
IK03

Protection class: I

Factory colour: Jet black (RAL 9005)

Material: Aluminium

Weight: 1178 g

Dim: (L x W x H) 113 x 100 x 315 mm

: n.rel.

Width: 100 mm

Height: 315 mm

Length: 113 mm

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3766365 Deko Light Lucea 40 Tilt 3-phase lighting 40 W LED (monochrome) Jet black (RAL 9005)

User & Safety Instructions

User & Safety Instructions 3766365 Deko Light Lucea 40 Tilt 3-phase lighting 40 W LED (monochrome) Jet black (RAL 9005)

Warranty Terms

Warranty Terms 3766365 Deko Light Lucea 40 Tilt 3-phase lighting 40 W LED (monochrome) Jet black (RAL 9005)

Description

For the 3-phase 230 V busbar system, we also offer LUCEA series spots with DALI function. In the version it has a power of 15W or 40W and thus enables a maximum light output of up to 1950 or 4480 lumen. Optional lenses allow the individual models to narrow or expand in their viewing angle. For all versions, a door panel is also available as an optional accessory for flexible use of the lights in commercial and industrial environments.
