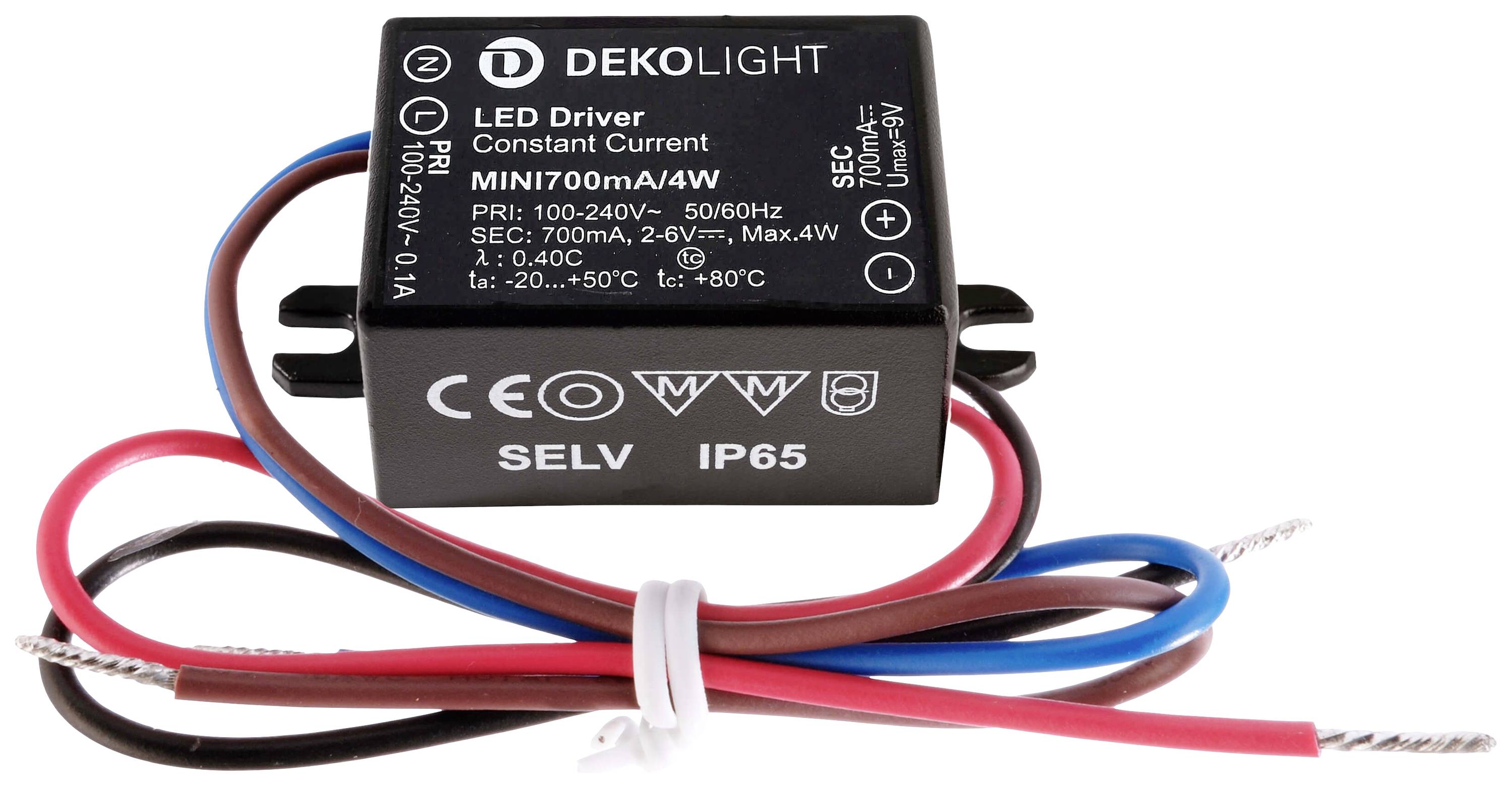

Deko Light MINI, CC LED driver Constant current 4 W 0.70 A 2.5 - 6 V DC 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Deco Light LED power supply, MINI, cc, 700mA/4W, 220-240V AC/50-60Hz, 2.5-6V DC, 700 mA
- Constant current
- 2.5 - 6 V DC
- 0.70 A
Technical specifications
- Output current: 700 mA
- Material 1: Plastic
- max. Inrush current (A/µs): 10A/100µs
- Product type
LED driver
- Type
Constant current
- Operating current
700 mA
- Dim
(L x W x H) 53 x 27 x 21 mm
- Factory colour
Black
- Output voltage (max.)
6 V DC
- Output voltage (min.)
2.5 V DC
- Max. output current
0.70 A
- Output current (max.) - rounded
700 mA
- Protection class
II
IP65
- Connection
Open end cable
- Max. power
4 W
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
1.75 W
- Power range
1.75 up to 4 W
- Width
27 mm
- Height
21 mm
- Length
53 mm
- Max. temperature
+60 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795463 Deko Light MINI, CC LED driver Constant current 4 W 0.70 A 2.5 - 6 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
