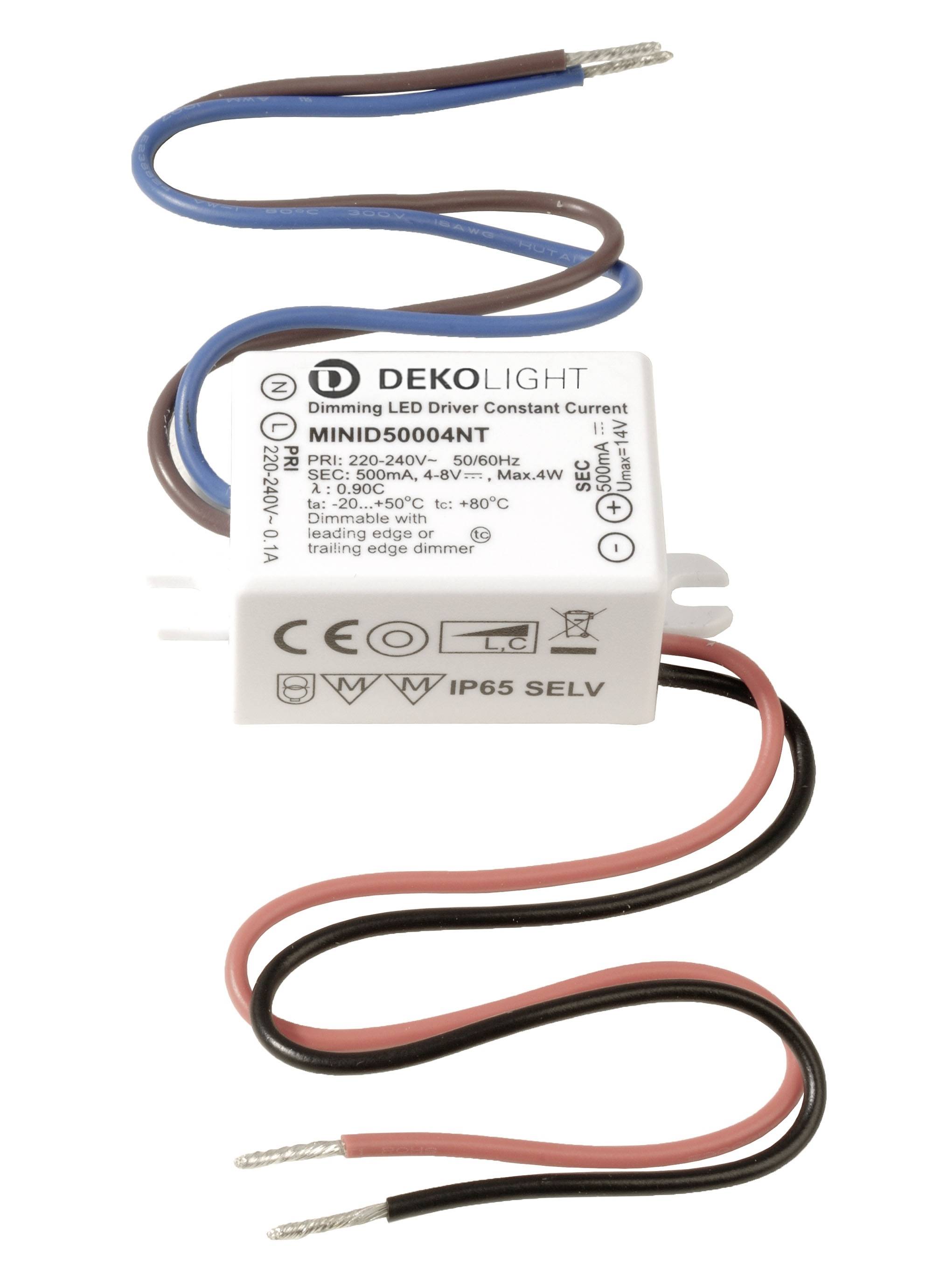

Deko Light MINI, DIM, CC, D LED driver Constant current 4 W 0.50 A 4 - 8 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
MINI, DIM, CC, D
- Constant current
- 4 - 8 V DC
- 0.50 A
Technical specifications
- Output current: 500 mA
- Control: Phase angle-/section
- Material 1: Plastic
- max. Inrush current (A/µs): 5A/300µs
- Product type
LED driver
- Type
Constant current
- Operating current
500 mA
- Dim
(L x W x H) 53 x 27 x 21 mm
- Factory colour
White
- Output voltage (max.)
8 V DC
- Output voltage (min.)
4 V DC
- Max. output current
0.50 A
- Output current (max.) - rounded
500 mA
- Protection class
II
- LED driver features
dimmable
IP65
- Connection
Open end cable
- Max. power
4 W
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
2 W
- Power range
2 up to 4 W
- Width
27 mm
- Height
21 mm
- Length
53 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795455 Deko Light MINI, DIM, CC, D LED driver Constant current 4 W 0.50 A 4 - 8 V DC dimmable 1 pc(s)
Description
Scope of delivery
- With connection cable
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
