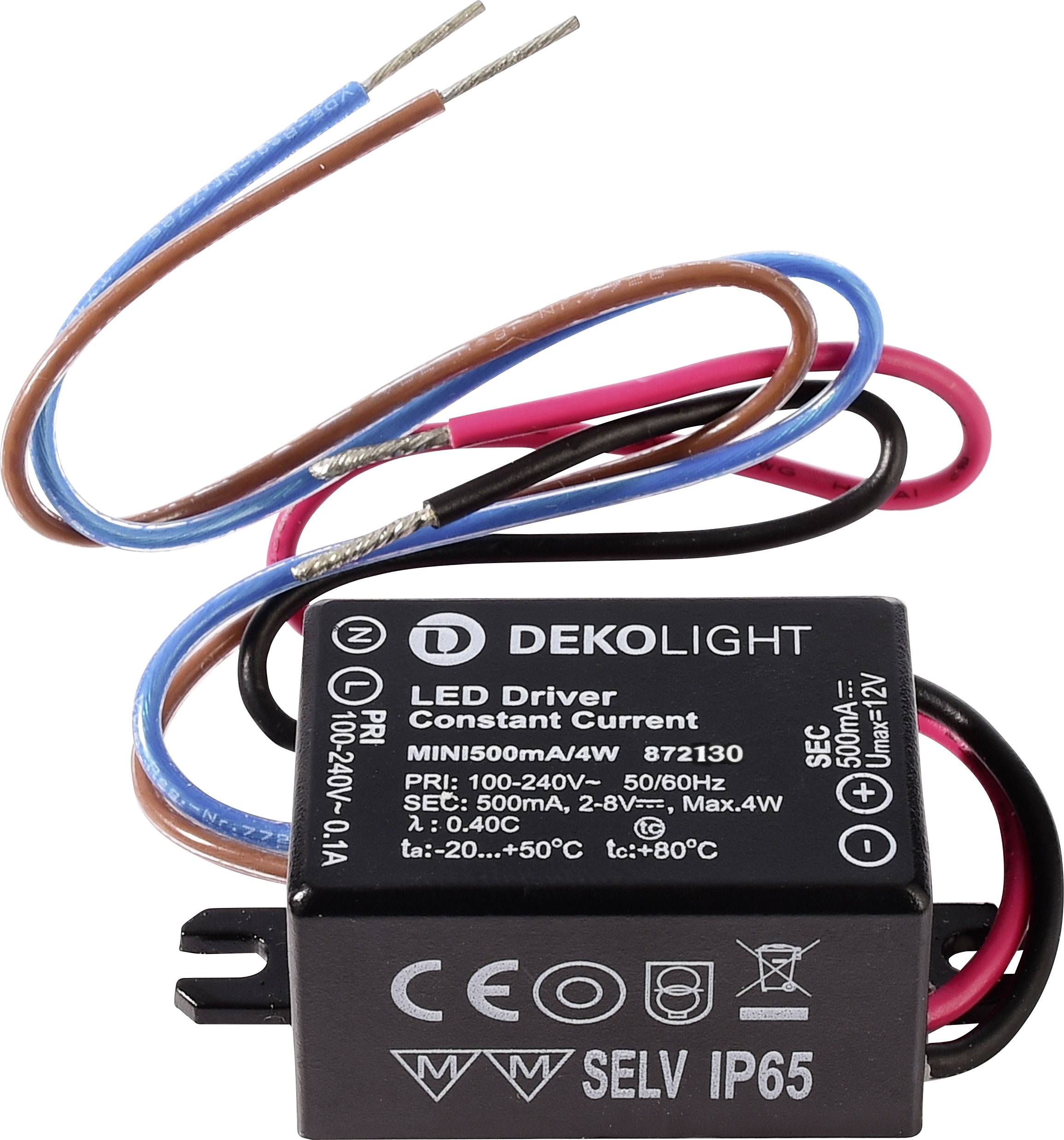

Deko Light MINI LED transformer Constant current 4 W 500 mA 4 - 8 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Deco Light power supply (CC, DC) - MINI, CC, 500mA/4W
- Constant current
- 4 - 8 V DC
- 500 mA
Technical specifications
- Operating mode: Current constant
- Frequency 50 - 60 Hz
- Starting current max. 10 A / 100 µs
- Capacity load 85 pF
- Power factor 0.6
- Max. Number of LS B10: 70
- Max. Number of LS B16: 112
- Max. Number of LS C10: 140
- Max. Number of each LS C16: 224
- Primary cable end: With free wire/cable ends
- Secondary cable end: Open cable
- Operating temperature -20 to +60°C.
- Storage temperature -20 to 50 °C.
- Input voltage 220-240 V/AC
- Output voltage 4-8 V/DC
- Output current in mA 500 mA
- Output 2.0 - 4.0 W
- Number of channels: 1
- Features: Overheating protection, overload protection, extra low voltage, furniture installation, lamp operating device 110, Short-circuit proof
- Product type
LED transformer
- Type
Constant current
- Dim
(L x W x H) 53 x 27 x 21 mm
- Factory colour
Black
- Output voltage (max.)
8 V DC
- Output voltage (min.)
4 V DC
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
- Protection class
II
IP65
- Max. power
4 W
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Weight
42 g
- Power (min.)
2 W
- Power range
2 up to 4 W
- Type
Power supply (CC, DC)
- Width
27 mm
- Height
21 mm
- Length
53 mm
- Max. temperature
-20 °C
- Min. temperature
+60 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3766463 Deko Light MINI LED transformer Constant current 4 W 500 mA 4 - 8 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3766463 Deko Light MINI LED transformer Constant current 4 W 500 mA 4 - 8 V DC 1 pc(s)
Warranty Terms
Warranty Terms 3766463 Deko Light MINI LED transformer Constant current 4 W 500 mA 4 - 8 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
