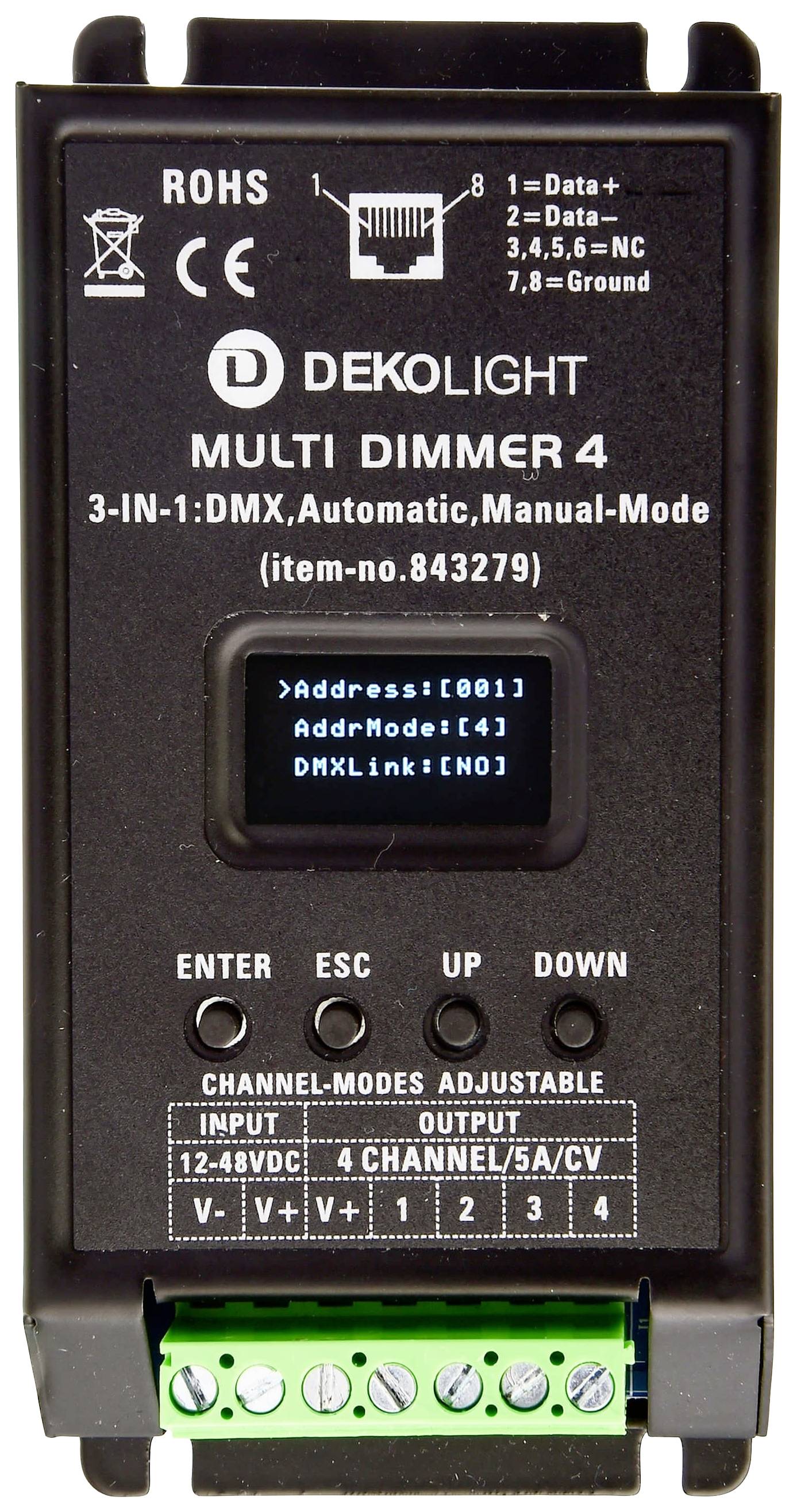

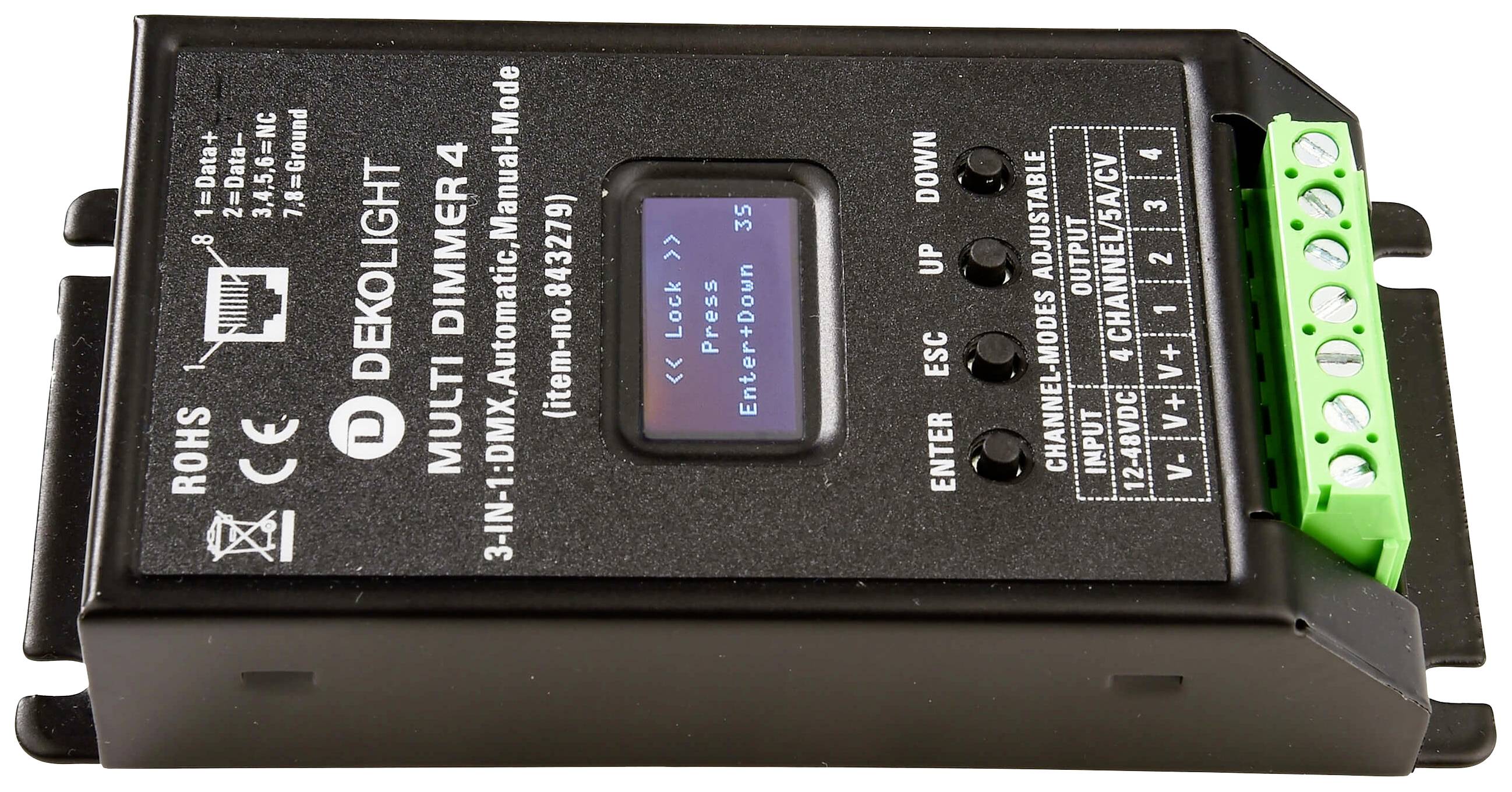

Deko Light MULTI-LED 4 LED dimmer 960 W 20 A 12 - 48 V adjustable, 3-in-1 dimmer, dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Deco-light, low-voltage DMX dimmer (CV, DC), MULTI-LED dimmer 4, DMX/Auto/manual, voltage constant,
- 12 - 48 V
- 20 A
Technical specifications
- Product type
LED dimmer
- Operating current
20 A
- Dim

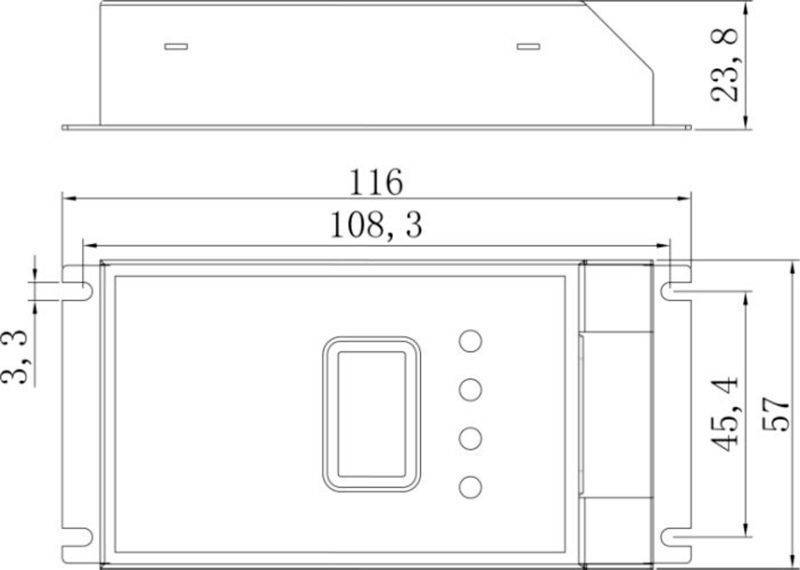

(L x W x H) 116 x 57 x 27 mm
- Factory colour
Black
- Output voltage (max.)
48 V
- Output voltage (min.)
12 V
- Max. output current
20 A
- Output current (max.) - rounded
20 A
- Protection class
III
- LED driver features
adjustable
3-in-1 dimmer
dimmable
IP20
- Connection
Clamp
- Max. power
960 W
- No. of outputs
4 x
- Input voltage (max.)
48 V
- Min. input voltage
12 V
- Weight
230 g
- Power range
960 W (max)
- Width
57 mm
- Height
27 mm
- Length
116 mm
- Max. temperature
+30 °C
- Min. temperature
-5 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2998380 Deko Light MULTI-LED 4 LED dimmer 960 W 20 A 12 - 48 V adjustable, 3-in-1 dimmer, dimmable 1 pc(s)
Description
Max. 20 A [4x 5A per channel] Power: 4 x 60 W [240 W] at 12 V, 4 x 120 W [480 W] at 24 V, 4 x 240 W [960 W] at 48 V
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x 2.0 m CAT5 cable
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
