Highlights & Details
Decorative Light LED power supply, OCTO, CV, Mini 24V/12W
- Constant voltage
- 24 V
- 0 - 500 mA
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Operating current
500 mA
- Dim

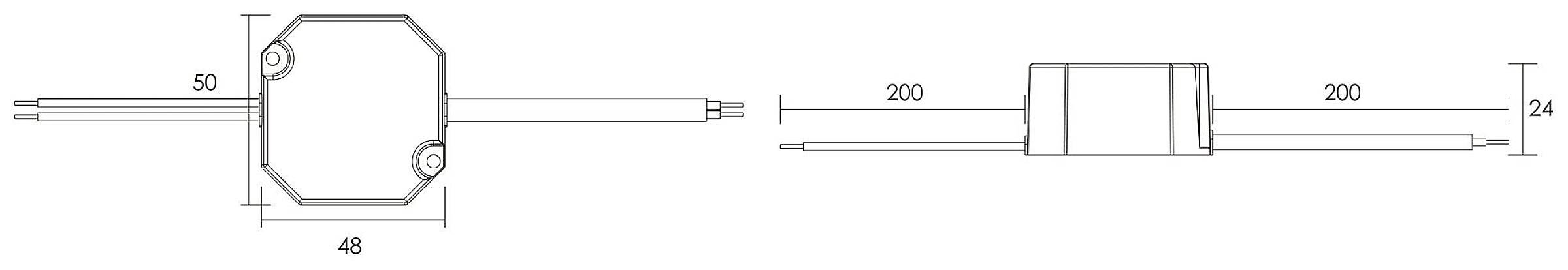

(L x W x H) 50 x 48 x 24 mm
- Factory colour
Black
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
- Protection class
II
- LED driver features
Surge protection
IP65
- Connection
Open end cable
- Max. power
12 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Power range
12 W (max)
- Width
48 mm
- Height
24 mm
- Length
50 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2618216 Deko Light OCTO, CV, Mini 24V/12W LED driver Constant voltage 12 W 0 - 500 mA 24 V Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618216 Deko Light OCTO, CV, Mini 24V/12W LED driver Constant voltage 12 W 0 - 500 mA 24 V Surge protection 1 pc(s)
Description
Features
- Ultra-compact design / flicker-free / short-circuit proof, overload protection, overheating protection
- This text is machine translated.
Scope of delivery
- LED power supply OCTO, CV, Mini 24V/12W
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
