Deko Light OCTO, DIM, CC, RSM-12-350T/12W LED driver Constant current 12 W 350 mA 6.3 - 12 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Decorative Light LED power supply, OCTO, DIM, CC, RSM-12-350T/12W
- Constant current
- 6.3 - 12 V
- 350 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim

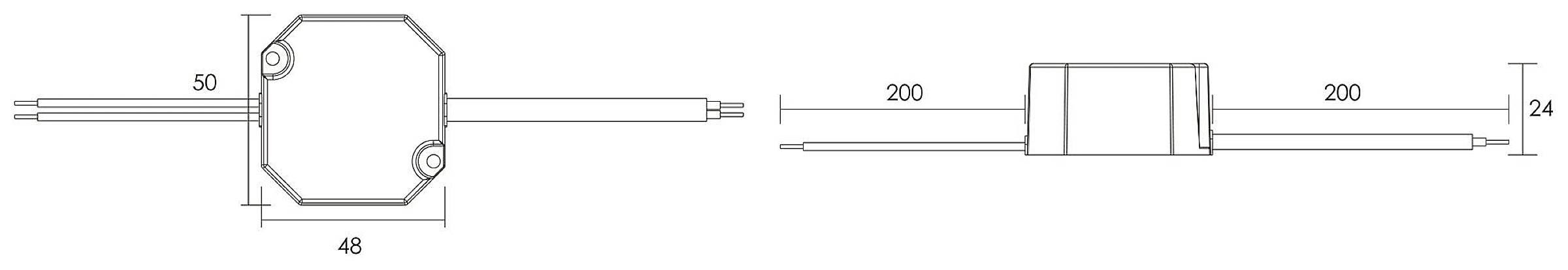

(L x W x H) 50 x 48 x 24 mm
- Factory colour
Black
- Output voltage (max.)
12 V
- Output voltage (min.)
6.3 V
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Protection class
II
IP65
- Connection
Open end cable
- Max. power
12 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
350 mA
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Power (min.)
6.3 W
- Power range
6.3 up to 12 W
- Width
48 mm
- Height
24 mm
- Length
50 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 2618222 Deko Light OCTO, DIM, CC, RSM-12-350T/12W LED driver Constant current 12 W 350 mA 6.3 - 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2618222 Deko Light OCTO, DIM, CC, RSM-12-350T/12W LED driver Constant current 12 W 350 mA 6.3 - 12 V 1 pc(s)
Description
Features
- Ultra-compact designFlicker-freeDimmable with phase on/off-cut dimmersShort-circuit proofOverload protectionOverheating protection
- This text is machine translated.
Scope of delivery
- LED power supply OCTO, DIM, CC, RSM-12-350T/12W
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
