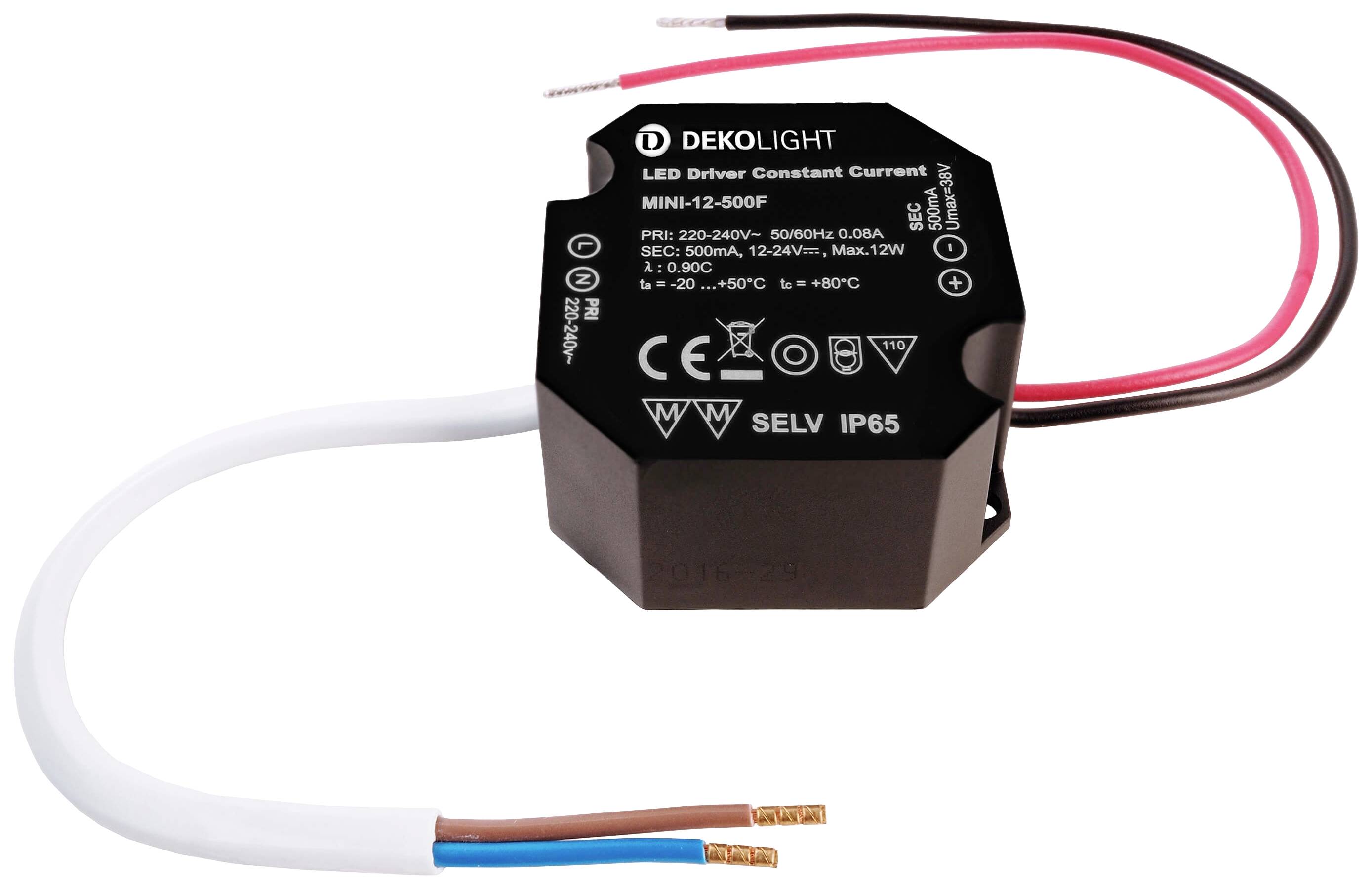

Deko Light OCTO, DIM, CC, RSM LED driver Constant current 12 W 500 mA - 0.50 A 12 - 24 V DC dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Deco-Light LED-power supply, OCTO, DIM, CC, RSM-12-500T/12W, dimmable
- Constant current
- 12 - 24 V DC
- 500 mA - 0.50 A
Technical specifications
- Output current: 500 mA
- Activation: Phase section
- Material 1: Plastic Durability: 30000 h
- max. Inrush current (A/µs): 5A/100µs
- Product type
LED driver
- Type
Constant current
- Operating current
500 mA
- Dim
(L x W x H) 50 x 48 x 24 mm
- Factory colour
Black
- Output voltage (max.)
24 V DC
- Output voltage (min.)
12 V DC
- Max. output current
0.50 A
- Output current (max.) - rounded
500 mA
- Protection class
II
- LED driver features
dimmable
IP65
- Connection
Open end cable
- Max. power
12 W
- Output current (min.)
500 mA
- Input voltage (max.)
240 V
- Min. input voltage
220
- Power (min.)
6 W
- Power range
6 up to 12 W
- Width
48 mm
- Height
24 mm
- Length
50 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795445 Deko Light OCTO, DIM, CC, RSM LED driver Constant current 12 W 500 mA - 0.50 A 12 - 24 V DC dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
