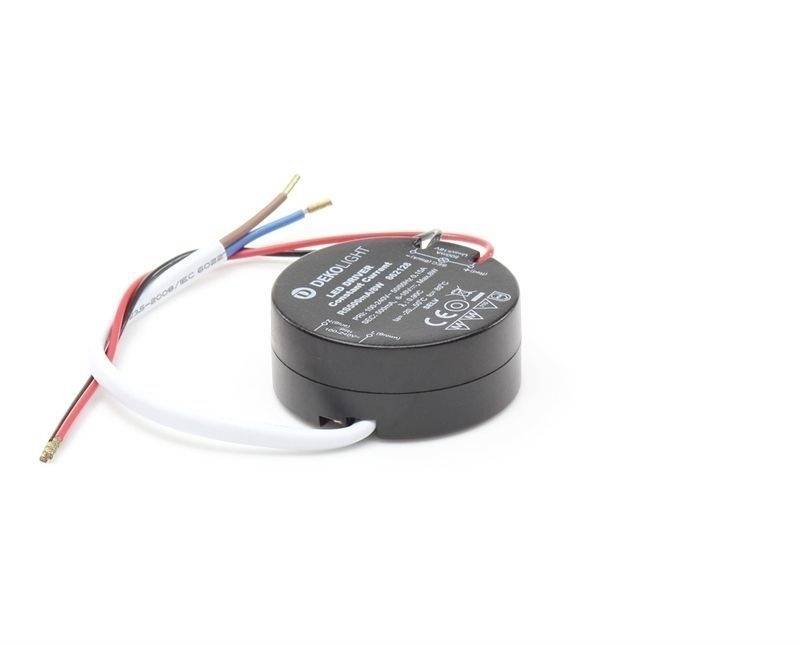

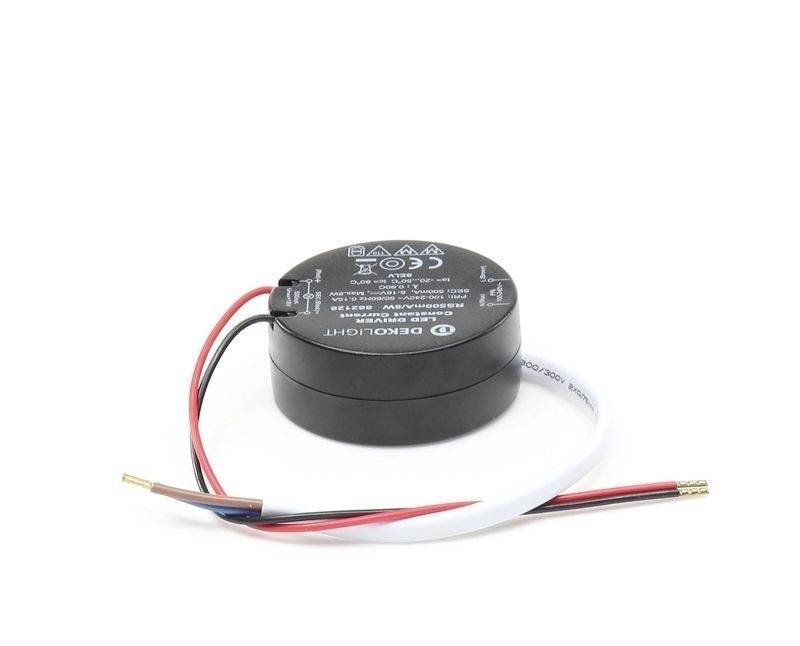

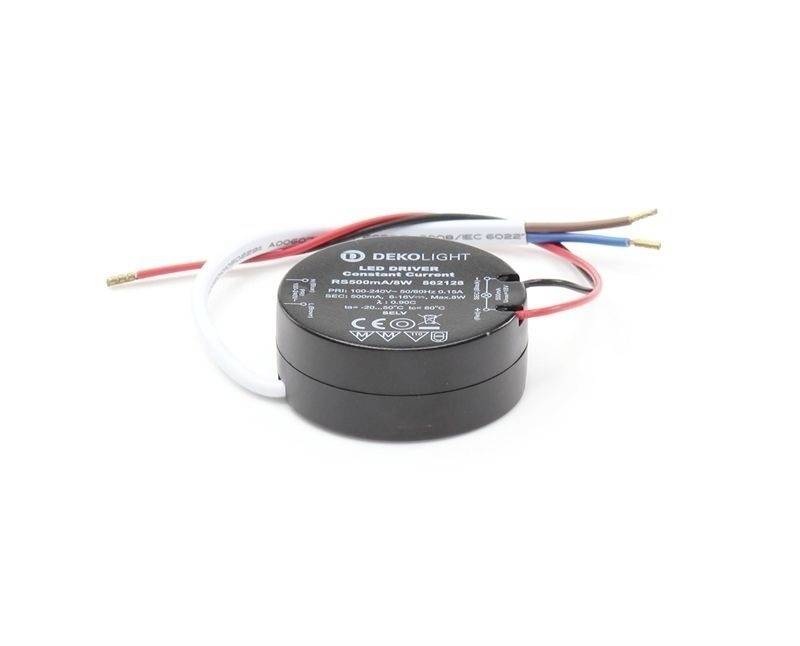

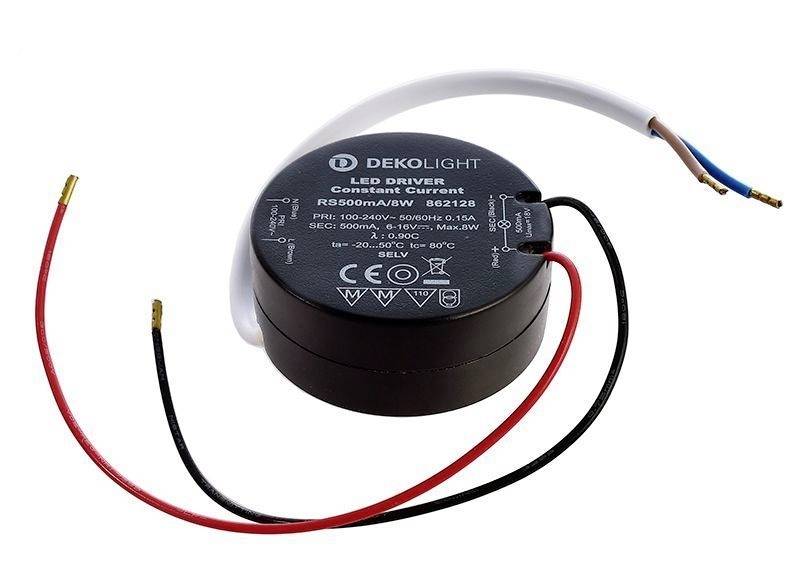

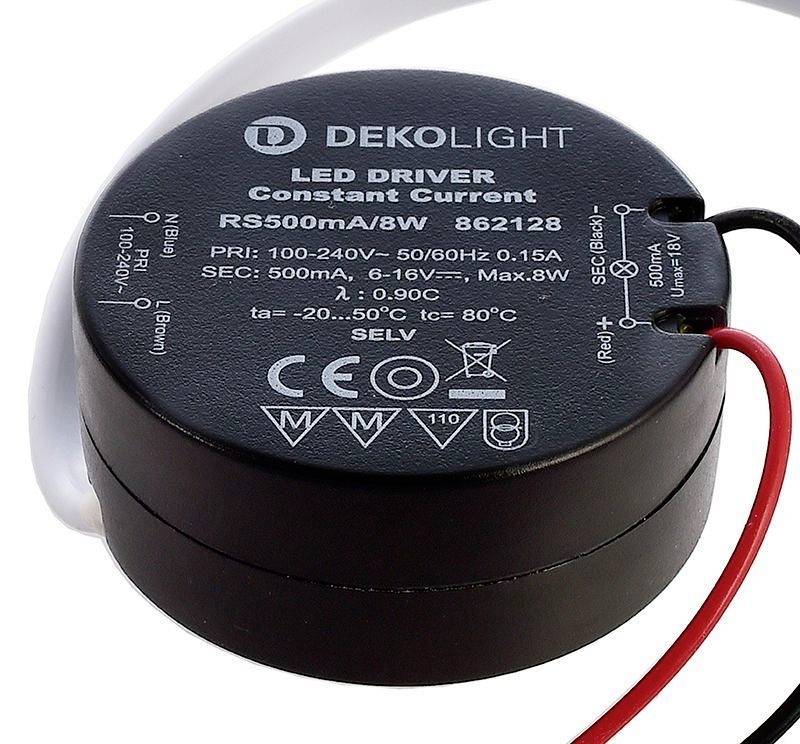

Deko Light ROUND, CC, RS500mA/8W LED driver Constant current 8 W 500 mA - 0.50 A 6 - 16 V DC 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
ROUND, CC, RS500mA/8W
- Constant current
- 6 - 16 V DC
- 500 mA - 0.50 A
Technical specifications
- Product dimension diameter (mm): 53
- Output current 500 mA
- Material 1: Plastic Durability: 30000 h
- max. Switch-on current (A/µs): 8A/300µs
- Product type
LED driver
- Type
Constant current
- Factory colour
Black
- Output voltage (max.)
16 V DC
- Output voltage (min.)
6 V DC
- Max. output current
0.50 A
- Output current (max.) - rounded
500 mA
- Protection class
II
IP20
- Connection
Open end cable
- Max. power
8 W
- Output current (min.)
500 mA
- Input voltage (max.)
240 V
- Min. input voltage
100
- Power (min.)
3 W
- Power range
3 up to 8 W
- Width
0 mm
- Height
22 mm
- Length
0 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795419 Deko Light ROUND, CC, RS500mA/8W LED driver Constant current 8 W 500 mA - 0.50 A 6 - 16 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
