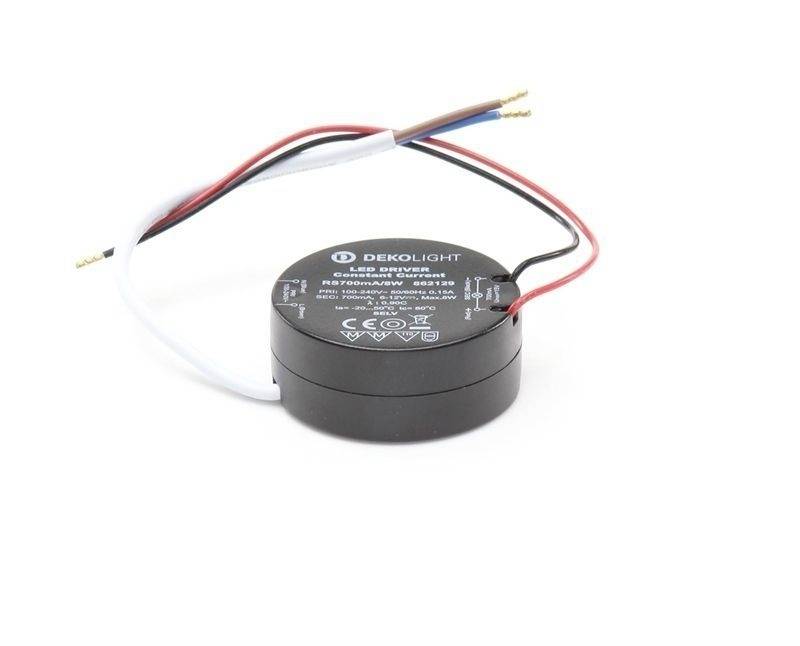

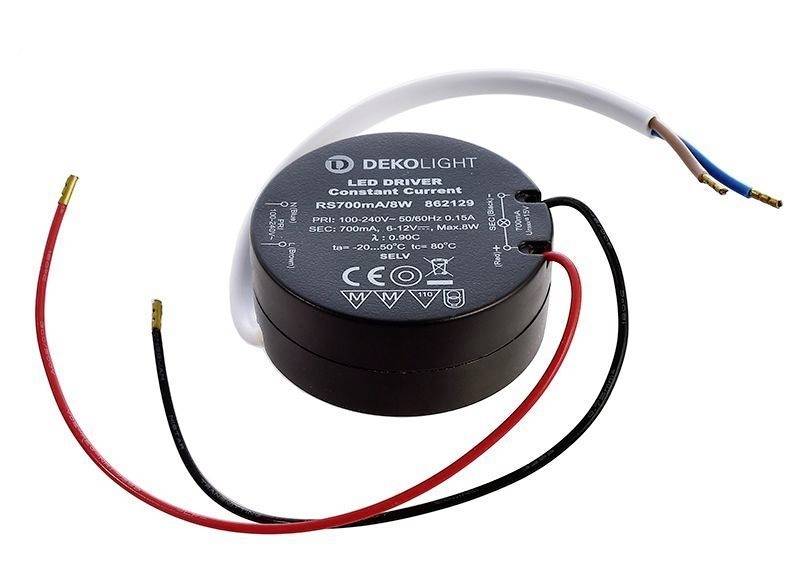

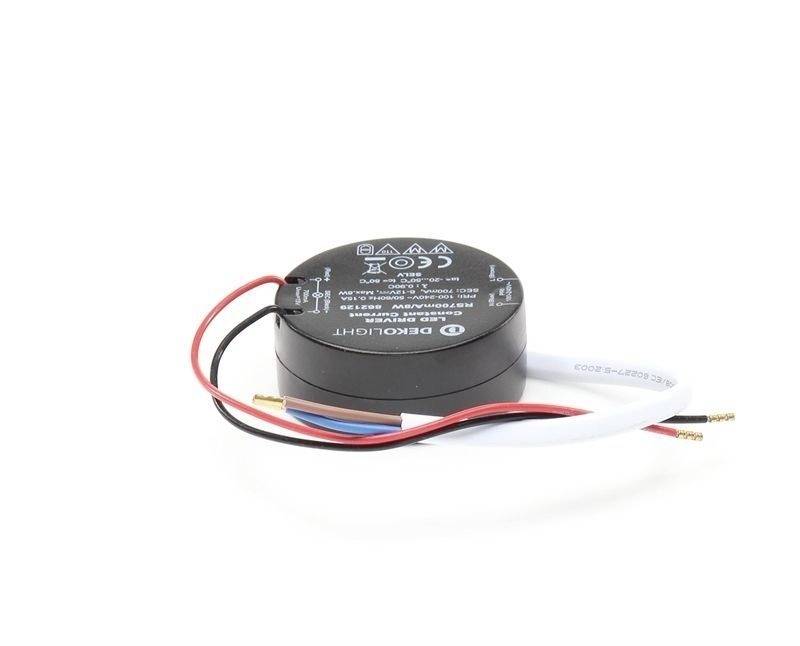

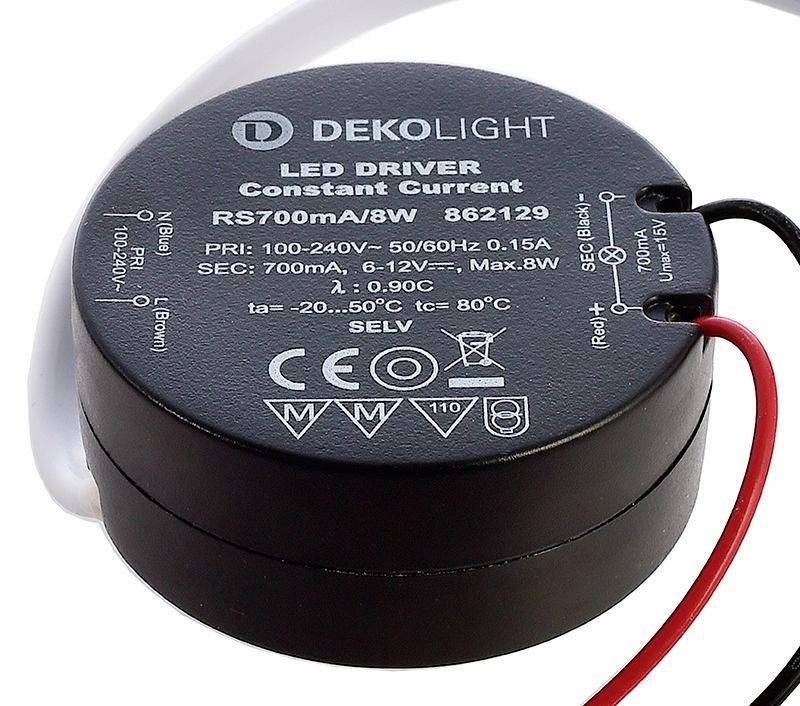

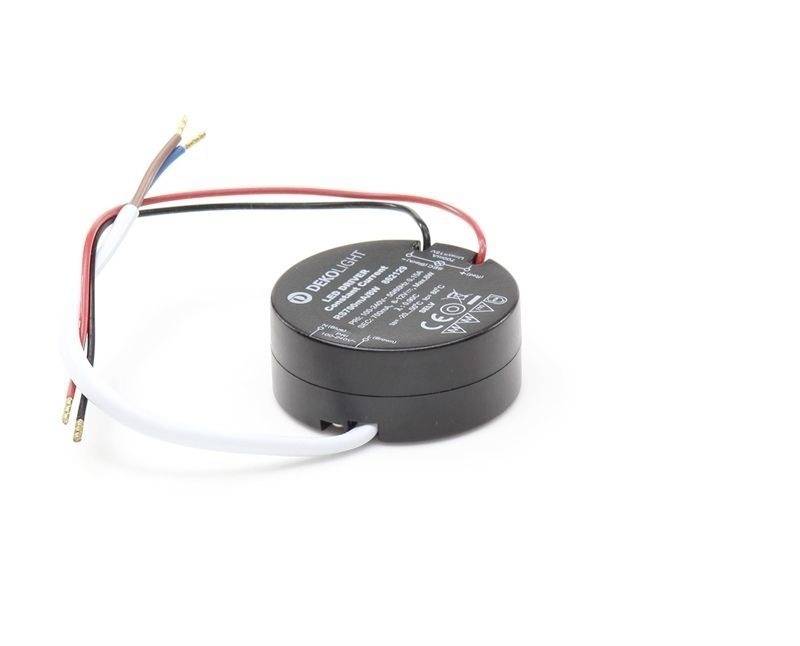

Deko Light ROUND, CC, RS700mA/8W LED driver Constant current 8 W 0.70 A 6 - 12 V DC 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
ROUND, CC, RS700mA/8W
- Constant current
- 6 - 12 V DC
- 0.70 A
Technical specifications
- Product dimension diameter (mm): 53
- Output current 700 mA
- Material 1: Plastic Durability: 30000 h
- max. Switch-on current (A/µs): 8A/300µs
- Product type
LED driver
- Type
Constant current
- Operating current
700 mA
- Factory colour
Black
- Output voltage (max.)
12 V DC
- Output voltage (min.)
6 V DC
- Max. output current
0.70 A
- Output current (max.) - rounded
700 mA
- Protection class
II
IP20
- Connection
Open end cable
- Max. power
8 W
- Input voltage (max.)
240 V
- Min. input voltage
100
- Power (min.)
4.20 W
- Power range
4.20 up to 8 W
- Width
0 mm
- Height
22 mm
- Length
0 mm
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2795420 Deko Light ROUND, CC, RS700mA/8W LED driver Constant current 8 W 0.70 A 6 - 12 V DC 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
