Deko Light Sauna 840412 LED strip EEC: G (A - G) open cable ends 24 V 5 m Warm white 1 pc(s)
EAN:
Part number:
Item no:
Product type
LED strip
Connectors (LED strips)
open cable ends
LED strip features
Extendable
Colour
Warm white
Total luminous flux
900 lm
Datasheet (PDF)
Highlights & Details
LED Strip, Sauna, COB, 24V-10W, 3000 K, 5m, silicone, voltage constant, 24 V/DC
- For sauna and steam bath
- Permanently temperature-resistant LED stripe
- Extra long supply line
- Service life 75.000h L70B50 / 50,000 L80B10
Technical specifications

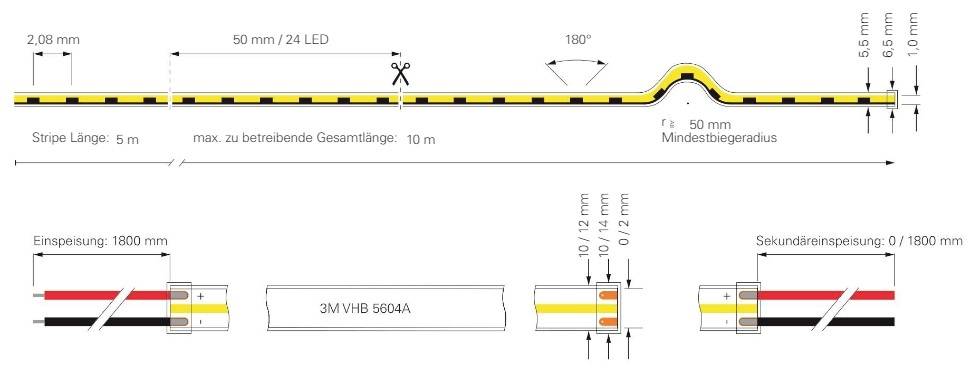

- Expandable. max. 10 m
- Minimum bend radius 50 mm
- Switching cycles 50000
- Product type
LED strip
- Connectors (LED strips)
open cable ends
- LED strip features
Extendable
- Factory colour
White
- Colour
Warm white
- Colour temperature type
3000 K
- Total luminous flux
900 lm
- Use
Inside/outside
- Radiation angle
180°
- Operating voltage
24 V
- Connection
Open cable ends
- Dim
(L x W x H) 5 m x 10 mm x 5.5 mm
- Width
10 mm
- Height
5.5 mm
- Length
5 m
IP67
- Min. temperature
-10 °C
- Max. temperature
+105 °C
G (A - G)
- Energy consumption
5 kWh/1000h
- Colour rendering index
90 Ra
- Weight
400 g
- Protection class
III
Documents & Downloads
Datasheet
Datasheet 2998378 Deko Light Sauna 840412 LED strip EEC: G (A - G) open cable ends 24 V 5 m Warm white 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2998378 Deko Light Sauna 840412 LED strip EEC: G (A - G) open cable ends 24 V 5 m Warm white 1 pc(s)
Description

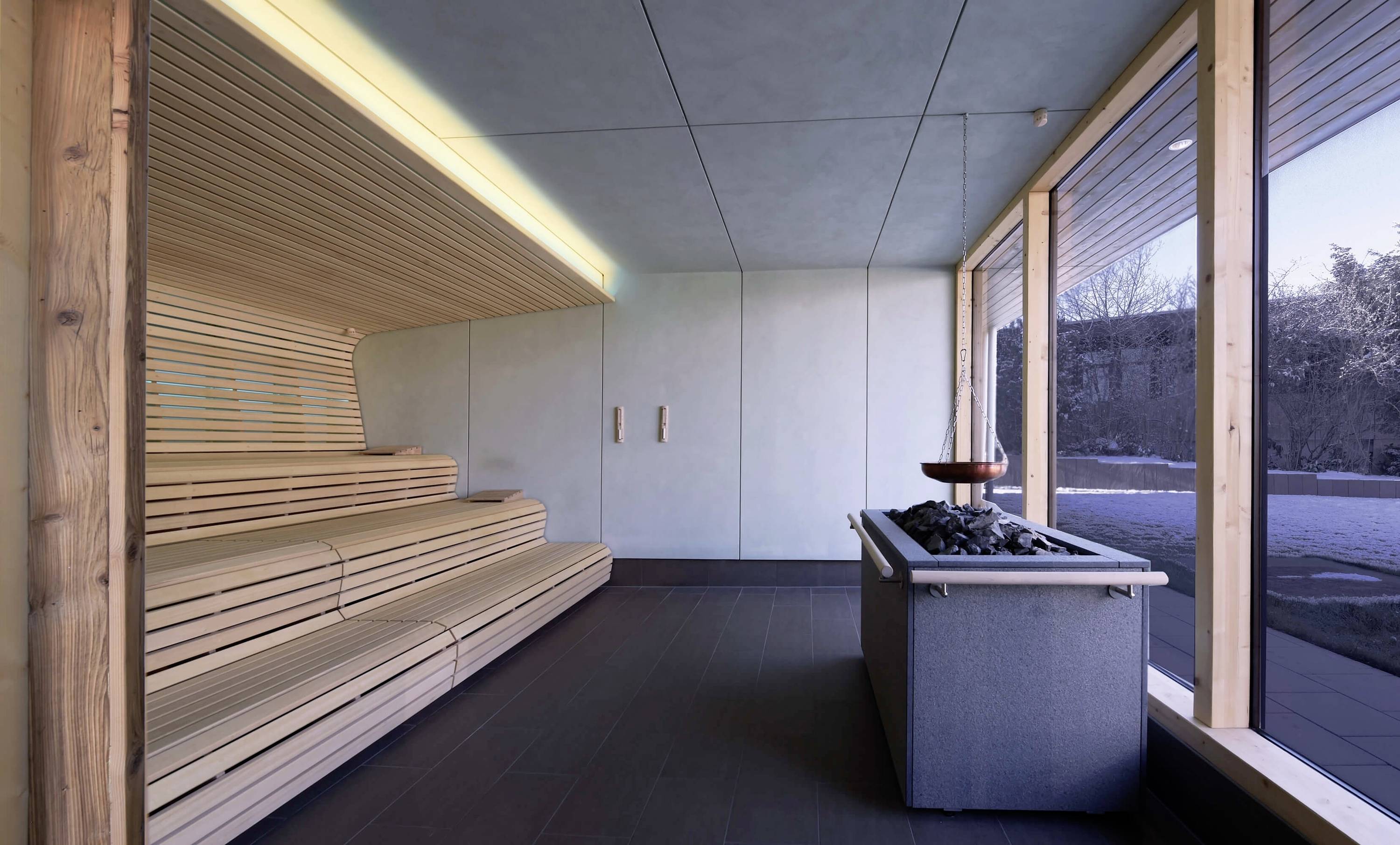

Our SAUNA-COB-24V LED strips are the ideal lighting solution for saunas and steam baths, etc. With an impressive life of up to 75,000 hours at L70B50 and 50,000 hours at L80B10, these LED stripes provide a long-term lighting solution for your needs. The LED strips also have an extra long lead to provide maximum installation flexibility. Items 840409 and 840411 offer a 1.8-meter primary feed, while items 840410 and 840412 offer both a 1.8-meter primary and secondary feed. The LED strips are durable up to 105 °C temperature resistant and designed especially for use in saunas and steam rooms. Enjoy reliable lighting, which can withstand the extreme temperatures and at the same time create a pleasant atmosphere. As we have set ourselves the goal of becoming climate-neutral, the COB Sauna LED-Stripes are packaged in an environmentally friendly manner on paper basis. Important note on installation: The COB Sauna LEDTRIPES should not be mounted on aluminum or metal sections! The device must only be installed with the plastic profiles and silicone clamps mentioned in the accessories!
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10 silicone retaining brackets + 20 screws + 2 end caps
