Dell Laptop docking station D6000S Compatible with (brand): Dell USB-C® powered
EAN:
Part number:
Item no:
Highlights & Details
Dell DELL-D6000S Laptop docking station
- Connection A (or inputs): USB
- Connecton B (or outputs): USB
- No. of supported monitors: 3
- Maximum resolution: 3840 x 2160 p
- Key features: USB-C® powered
Technical specifications
- Product type
Laptop docking station
- Type A
USB
- Type B
USB

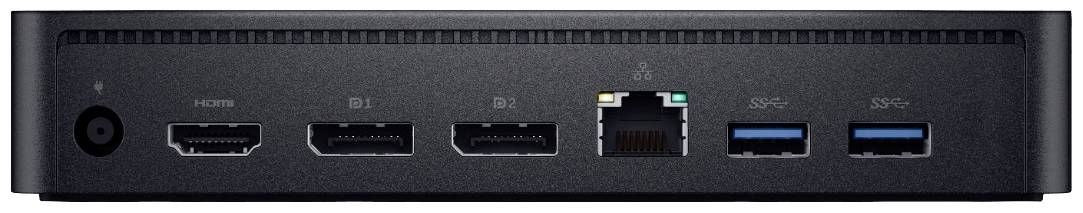

- Interfaces
4x USB 3.2 2nd Gen (USB 3.1)
1x USB-C®
1x HDMI
2x DisplayPort
- Suitable for
Notebook
- Supported monitors
3
- Resolution (max.)
3840 x 2160 p
- Factory colour
Black
- Features
USB-C® powered
- Width
168 mm
- Height
30 mm
- Depth
78 mm
- Weight
380 g
- Dim
(W x H x D) 168 x 30 x 78 mm
- Compatible with (brand)
Dell
- No. of DisplayPort
2 x
- No. of HDMI ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
4 x
- Max. output current
6.7 A
- Output voltage
19.5 V
- 10/100/1000 Mbps ports
1 x
- PSU power
130 W
- Transfer type
Corded
- Compatible with
Dell
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2528833 Dell Laptop docking station D6000S Compatible with (brand): Dell USB-C® powered
Description
UNIVERSAL DOCKING SOLUTIONWhether in the home office or in the office – you can connect any laptop equipped with USB-C® or USB-A as well as screens, keyboard, mouse and audio devices comfortably to the docking station.HIGH RESOLUTION DISPLAYEnjoy Ultra HD 5K on a single screen or up to three 4K displays via USB-C1.2 thanks to DisplayLink® technology.*INCREASED PRODUCTIVITYYou can move faster when you connect a USB-C cable to transfer audio, video, and data, or power the device without the need for an additional power supply.
This text is machine translated.
This text is machine translated.
Features
- Transmission technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type A, USB connector: USB Type A, USB Type C
- Ethernet LAN data transfer rates: 10.100.1000 Mbit/s.
- Product color: Black
- Resolution (maximum, digital): 3840 x 2160 pixels
- Slot-type cable lock: Kensington
- Power source: Direct current, AC Input voltage 100 - 240 V.
- AC input frequency 50 - 60 Hz
- Width 78 mm, Depth 168 mm, Height 30 mm.
Hints
* Supported by the DisplayLink compression technology, which requires driver installation. Download the DisplayLink driver here.A maximum of 3 display outputs can be supported simultaneously via the USB-C connection. Maximum two display outputs with USB 3.0 (type A).5120 x 2880 (5K) @ 60Hz can be supported with dual DP1.2 connector; 3840 x 2160 (4K) @ 60Hz can be supported with simple DP/HDMI cable connector.
