Dell Mini PC Pro Micro QCM1250 2.5 cm (1 inch) Intel® Core™ i5 i5-14500T 4.8 GHz 16 GB RAM 512 GB SSD Intel Intel UHD gr
EAN:
Part number:
Item no:
Datasheet (PDF)

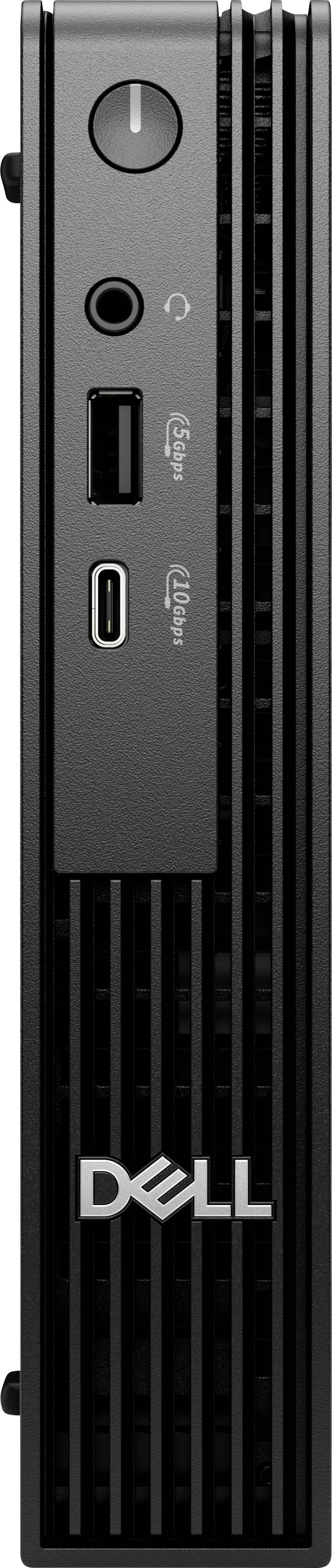

Dell Pro Micro QCM1250 2.5 cm (1 inch) Mini PC
Highlights & Details
- Display: 2.5 cm (1 inch)
- Intel® Core™ i5 i5-14500T 14 core(s) / max. 4.8 GHz
- RAM: 16 GB DDR5 RAM
- 512 GB SSD
- Intel Intel UHD graphics 770
- Windows® 11 Pro
Technical specifications
- HDMI version 2.1
- Audio system: High-definition audio
- Ethernet LAN data transfer rates of 10,100,1000 Mbit/s.
- Intel Wi-Fi 6E AX211 wireless controller model
- 35 W basic processor power
- Maximum turbo power: 92 W.
- Storage layout 1 x 16 GB
- Without ECC: Yes
- Usage: Business
- Micro PC casing type
- DisplayPort version: 1.4a
- DC connection (DC): Yes
- Supported positioning: Horizontal/vertical
- Intel® vPro™ Platform Eligibility: Yes
- Power supply - input voltage 100 - 240 V
- Intel Q870 motherboard chipset
- Audio chip: Realtek ALC3204
- Memory channels: Single channel
- Antenna type 2 x 2
- Intel WGI219LM LAN controller
- Processor threads: 20
- Processor cache type: Smart cache
- Operating system architecture: 64-bit
- Memory card slots: 2x SO-DIMM
- Product type
Mini PC
- Model
QCM1250
- Display (cm)
2.5 cm
- Screen size diagonal (inches)
1 inch
- CPU series
Intel® Core™ i5
- CPU
Intel® Core™ i5 i5-14500T
- Processor/type
i5-14500T
- Processor cores (No.)
14 x
- CPU turbo clock speed (max.)
4.8 GHz
- No. of processor E cores
8
- No. of processor P cores
6
- CPU efficiency core base clock speed
1.2 GHz
- CPU efficiency core boost clock
3.4 GHz
- CPU performance core base clock speed
1.7 GHz
- CPU performance core boost clock
4.8 GHz
- CPU cache
24 MB
16 GB
- RAM type
DDR5 RAM
- No. of memory slots
2
- RAM / Max. upgrade
64 GB
- Onboard graphics card
Yes
- Onboard graphics card (GPU manufacturer)
Intel
- Onboard graphics card (version)
Intel UHD graphics 770
- Dedicated graphics card
No
- SSD size (total)
512 GB
- SSD 1 type
SSD
- SSD
512 GB
- SSD connection
M.2 PCIe NVMe 4.0 x4
- HDD capacity (total)
0 GB
- Hard drive
0 GB
- HDD 1 type
Flash
- Drive
w/o hard drive
- Keyboard layout
German, QWERTZ
- No. of DisplayPort
1 x
- No. of Gigabit LANs
1 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
2 x
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- No. of USB 3.0 ports
1 x
- Interfaces
HDMI™
DisplayPort
USB C®
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
RJ45
Headphone/mic combo jack (3.5 mm)
Wi-Fi
Wi-Fi 6E (IEEE 802.11ax)
Bluetooth
- Factory colour
Black
- Width
36 mm
- Height
182 mm
- Depth
178 mm
- Weight
1.16 kg
- PSU power
90 W
- Software included
Activate Your Microsoft 365 For A 30 Day Trial
- Features
Kensington lock
TPM2.0 module
- Operating system (Version)
Windows® 11 Pro
- Display size
- 23 inch
- Charging capacity (min.)
1 W
- Charging capacity (max.)
1 W
- Display
2.5 cm (1 inch)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3443523 Dell Mini PC Pro Micro QCM1250 2.5 cm (1 inch) Intel® Core™ i5 i5-14500T 4.8 GHz 16 GB RAM 512 GB SSD Intel Intel UHD gr
User & Safety Instructions
User & Safety Instructions 3443523 Dell Mini PC Pro Micro QCM1250 2.5 cm (1 inch) Intel® Core™ i5 i5-14500T 4.8 GHz 16 GB RAM 512 GB SSD Intel Intel UHD gr
Description
Hints
HDMI® is a registered trademark of HDMI Licensing LLC
Image may differ from actual product.
