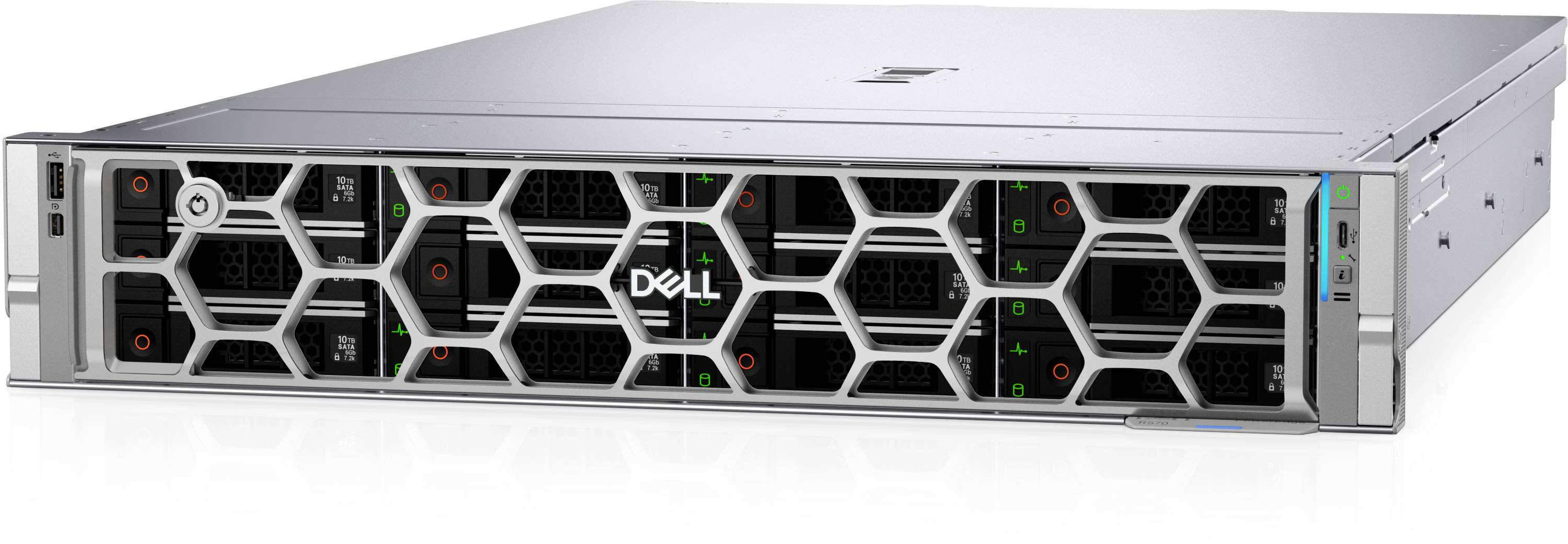

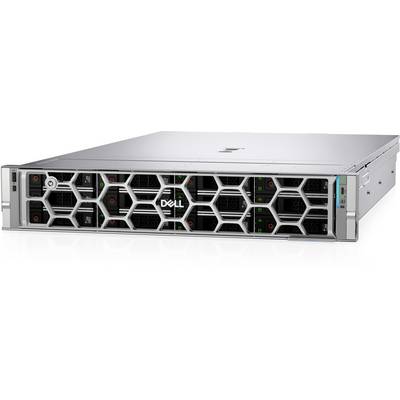

Front view of a Dell rack server with a honeycomb grille and status lights, shown in a silver chassis on a white background

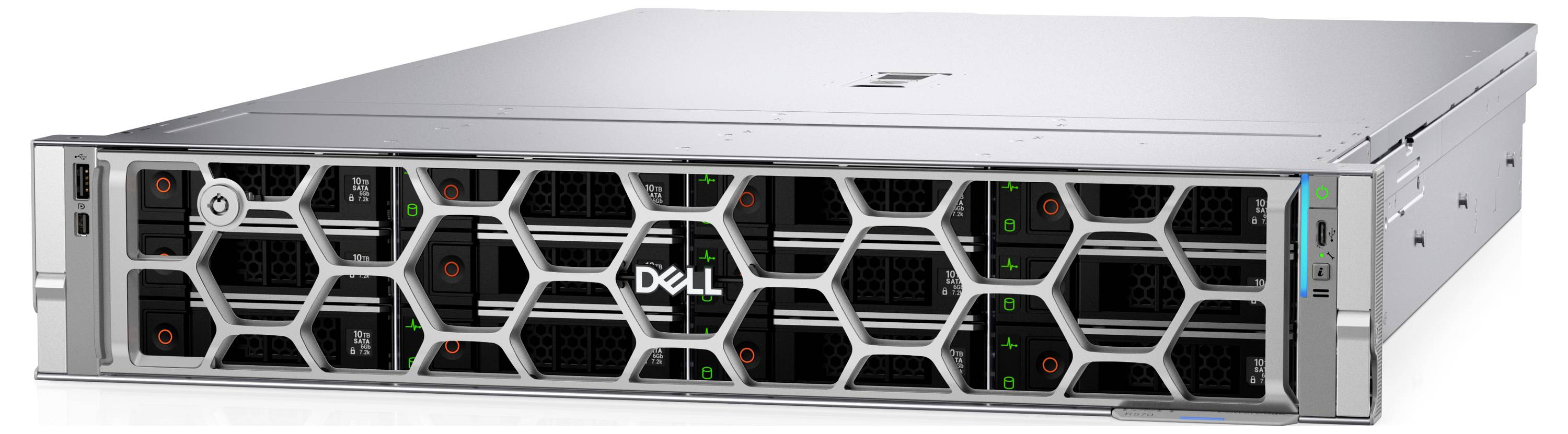

Dell PowerEdge server with a metallic front grille and LED indicators, designed for data center use.

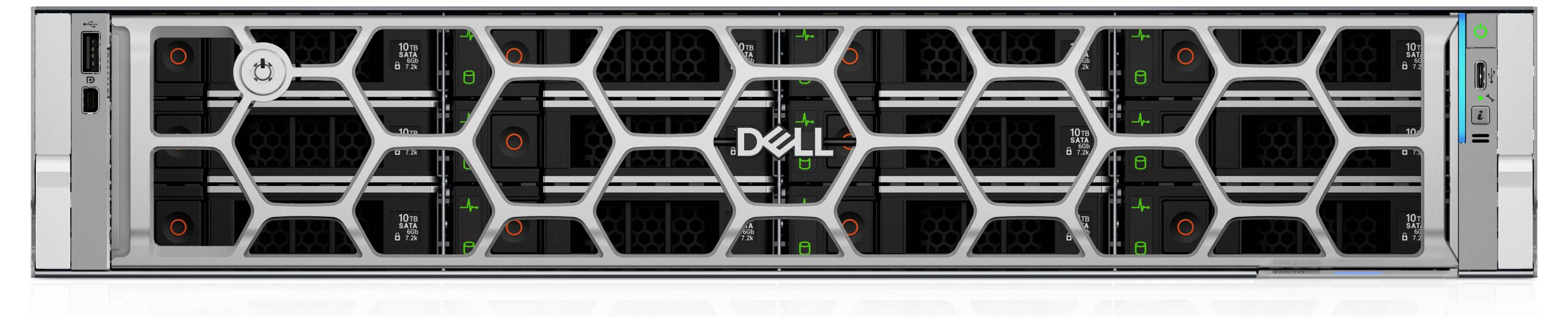

'Dell server front view showing grid pattern, power button, and ventilation, indicating a high-performance, enterprise-level hardware component.'

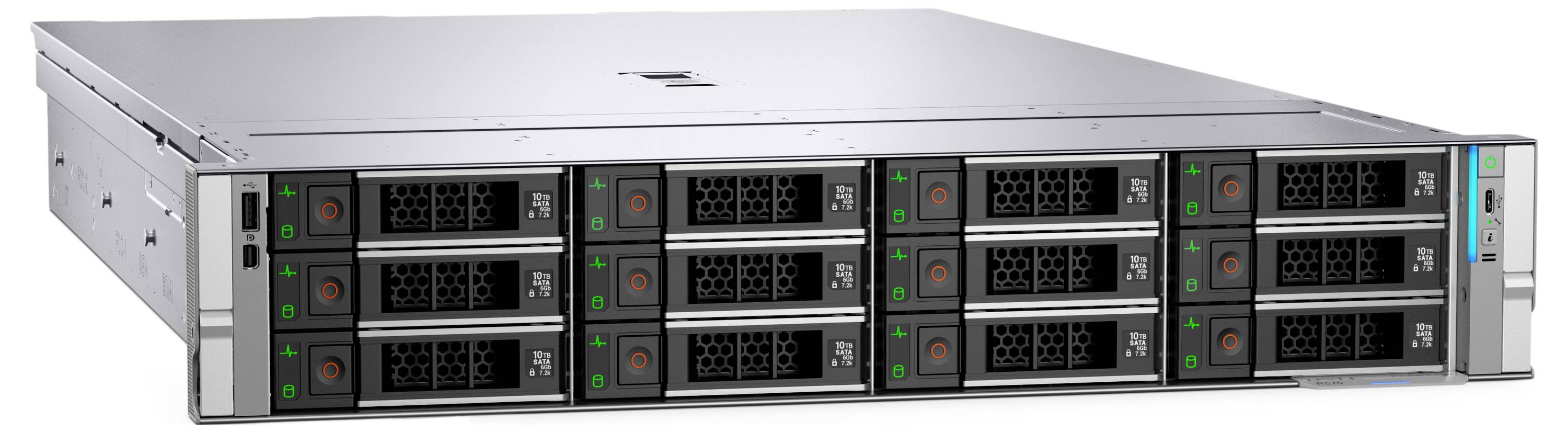

'A silver rack-mounted server with sixteen front-facing drive bays, featuring status lights and a power button on the right side.'

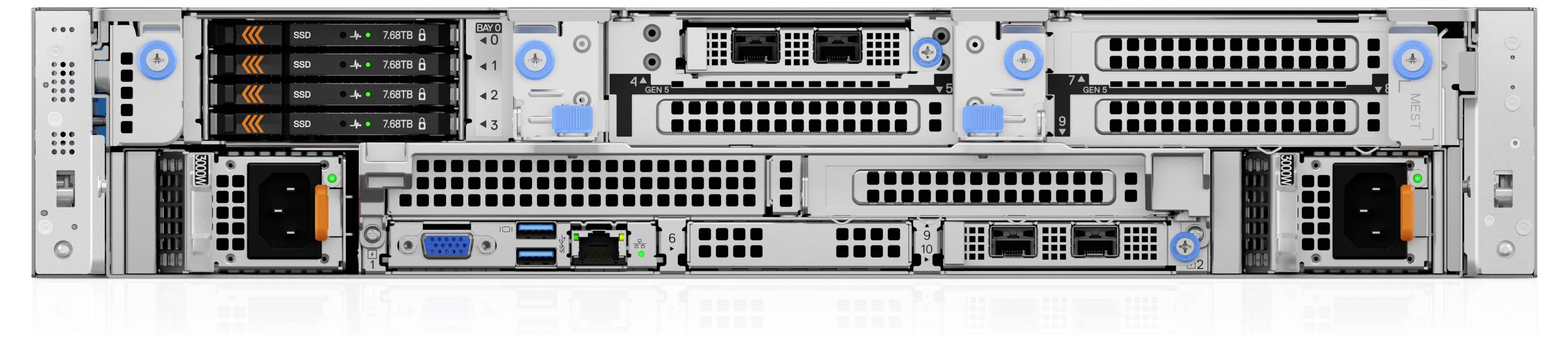

The image shows the rear view of a network server rack with multiple ports, cooling fans, and storage drives visible.

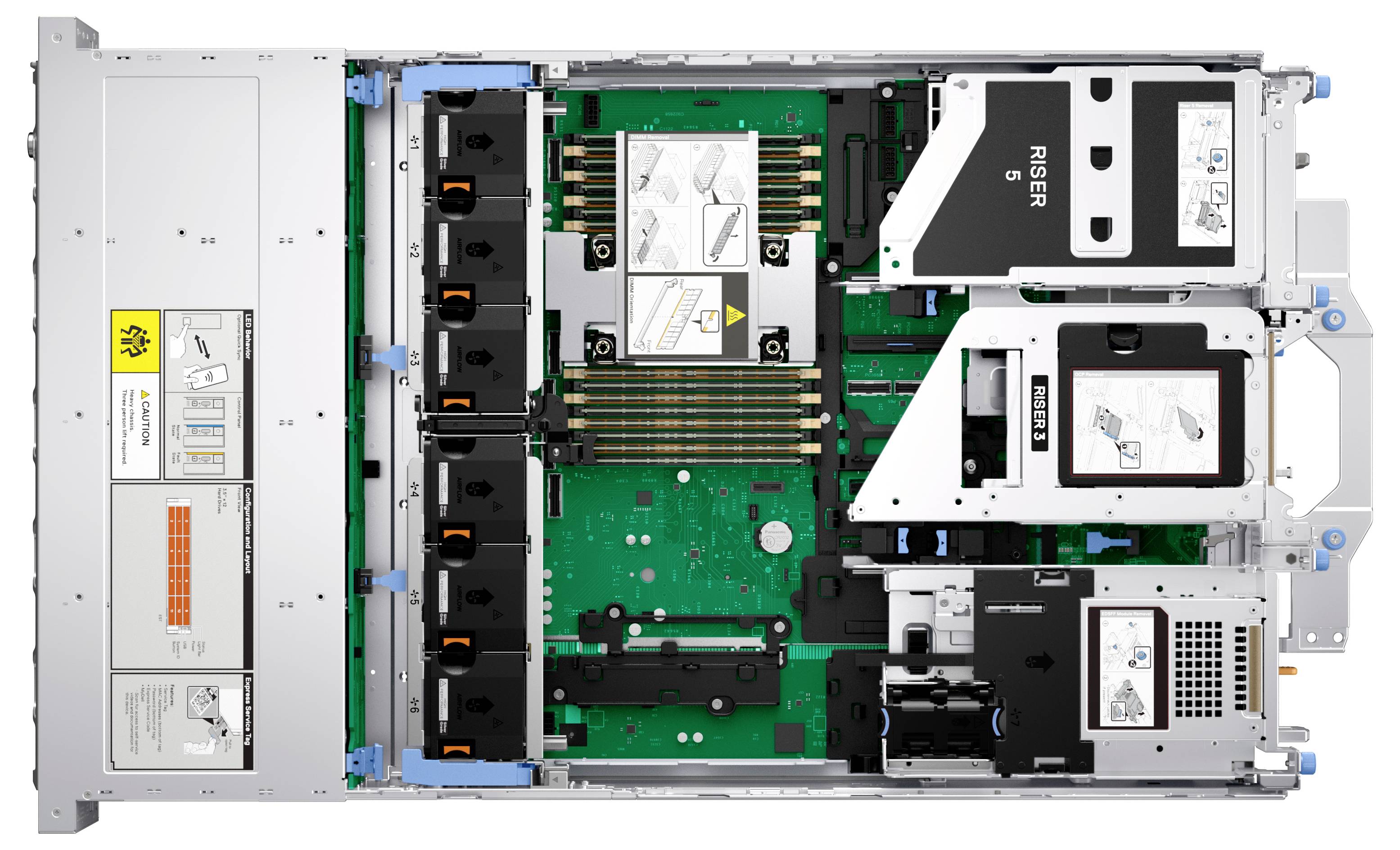

'Top view of computer server interior showing various components including CPU sockets, RAM slots, cooling units, and expansion slots.'

1/6

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Dell PowerEdge R570 Xeon 6517P Server

Highlights & Details

6517P 16 core(s) / max. 4.2 GHz
RAM: 32 GB

Technical specifications

Intel Xeon 6 processor family
Memory types supported by the processor: DDR5 SDRAM
Internal memory type DDR5 SDRAM
Memory card slots: 16x DIMM
SSD INTERFACE SATA III.
Optical Drive Type: No.
Installed operating system: No.
80 Plus certification: 80 PLUS Titanium
Data transfer rate 6 Gbps

Product type: Server

CPU: 6517P

Processor/type: 6517P

Processor cores (No.): 16 x

CPU speed: 3.2 GHz

CPU turbo clock speed (max.): 4.2 GHz

CPU cache: 72 MB

: 32 GB

RAM / Max. upgrade: 1 TB

HDD capacity (total): 0 GB

Hard drive: 0 GB

Keyboard layout: None (PC-controlled)

No. of USB A 2.0 ports: 1 x

No. of USB type A 3.1 / 3.2 1st Gen: 3 x

No. of VGA ports: 1 x

Factory colour: Black

Width: 482 mm

Height: 86.8 mm

Weight: 0

PSU power: 1100 W

Charging capacity (min.): 90 W

Charging capacity (max.): 1100 W

No. of PCIe 3.0 x16: 2 x

Memory capacity: 960 GB

Power consumption (max.): 190 W

10/100/1000 Mbps ports: 2 x

UKCA: yes

Number of redundant power supplies installed: 2

Number of SSDs supported: 16

Bezel: yes

Hot-Plug support: yes

Redundant power supply (RPS) support: yes

Memory data transfer rate: 6400 MT/s

Drive writes per day (DWPD): 1

Number of processors installed: 1

System bus rate: 24 GT/s

RAID support: yes

Number of SSDs installed: 2

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3720921 Dell Server PowerEdge R570 Xeon 6517P 6517P 4.2 GHz 32 GB RAM RCYKN

Description

The Dell PowerEdge R570 is a versatile, rackmountable server designed to provide greater performance and efficiency in a variety of IT environments. Thanks to its compact 2U form factor, it can be seamlessly integrated into existing infrastructures and makes optimal use of the available space. Equipped with a powerful Intel Xeon processor and robust storage solutions, it is Ideal for organizations that want to scale their operations and optimize their workloads.
With hot-swap drive bays and a remarkable SSD capacity of 960 GB, the PowerEdge R570 ensures high availability and minimal downtime. The server supports advanced networking with multiple connectivity options, including USB and VGA interfaces, to meet a variety of connectivity requirements. With its 80 PLUS Titanium certification, it is the first choice for companies that want to reduce operating costs while maintaining performance.
