Delock 11484 DisplayPort switch HDMI, DisplayPort Gesture control, Mouse, Keyboard, Remote control 3840 x 2160 Pixel
EAN:
Part number:
Item no:
Highlights & Details

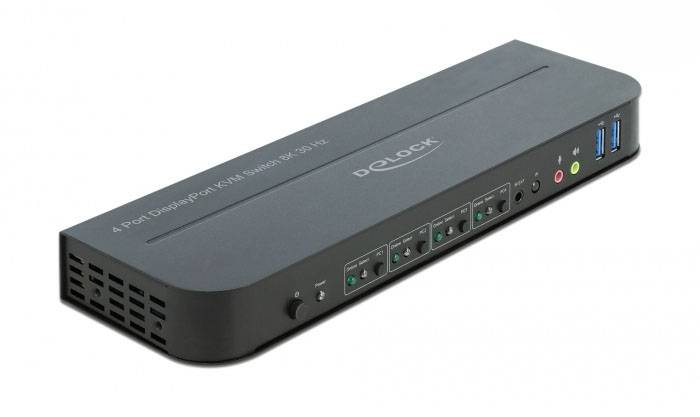

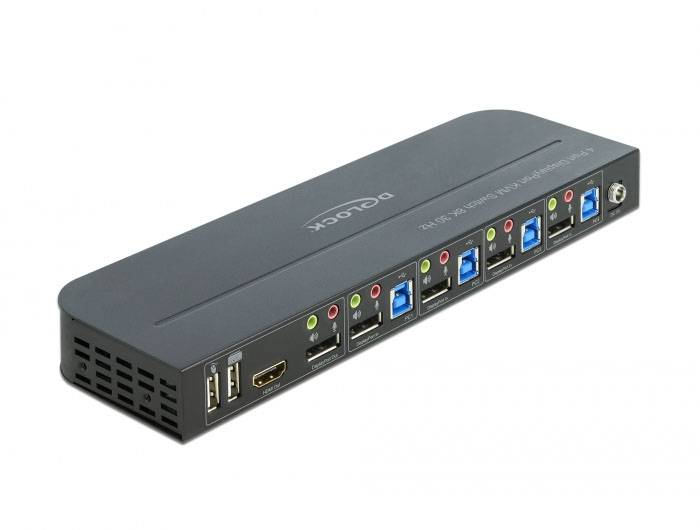

Delock 11484 DisplayPort switch
- Black
- Number of computers: 4
- Keyboard Port type: USB Mouse port type: USB Video Port type: HDMI/DisplayPort
- 8K Ultra HD 7680 x 4320 pixels
- Case material: metal
- AC
Technical specifications
- HD type 8K Ultra HD
- Energy source: AC
- Product type
DisplayPort switch
- Video via
HDMI
DisplayPort
- Video resolution
3840 x 2160 Pixel
- Controller
Gesture control
Mouse
Keyboard
Remote control
- Factory colour
Black
- Weight
1.09
- Width
75 mm
- Height
26 mm
- Dim
(W x H x D) 75 x 26 x 243 mm
- Cable design
Round
- Cable length
1 m
- Version
Cable
- Depth
243 mm
- Display resolution
7680 x 4320 Pixel
- No. of DisplayPort
5 x
- No. of HDMI ports
1 x
- Cable use
C13/C14 appliances
- Max. output current
3 A
- Output voltage
5 V
- Input voltage
100-240 V
- UKCA
yes
- AC adapter included
yes
- Number of microphone inputs
8
- Headphone outputs
4
- DC-in jack
yes
- Number of computers controlled
4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4
- Video bandwidth
30 Hz
- Manual
yes
- Audio connections
yes
- Rack mounting
no
- HDCP
yes
- Built-in display
no
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381601 Delock 11484 DisplayPort switch HDMI, DisplayPort Gesture control, Mouse, Keyboard, Remote control 3840 x 2160 Pixel
Description
This KVM switch by Delock is a practical solution for operating four computers with DisplayPort output on a display port monitor.
In addition, an HDMI output is present, through which two monitors can be connected, of which only one can be active.
Peripherals
In addition, the mouse and keyboard can be connected via two USB 2.0 ports and hard disks or USB memory via two USB 3.0 ports
Flexible control

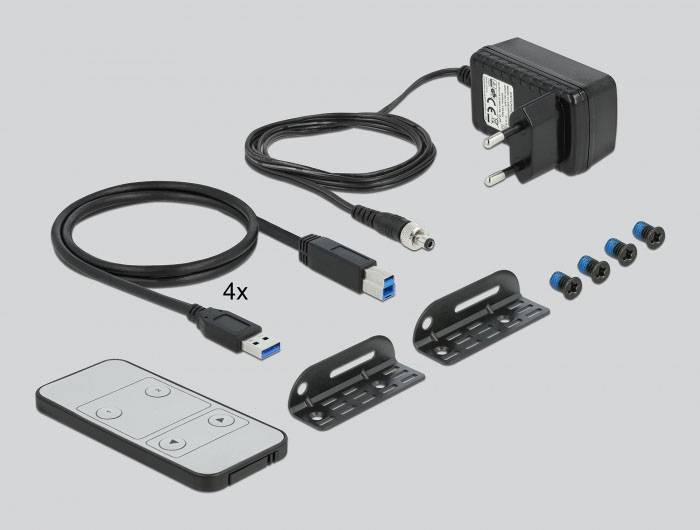

The active computer can be selected by mouse, keyboard hotkey, the key on the device or the infrared remote control.
Multi-stream Transport (MST)
With the support of MST (Multi-Stream Transport), several monitors can also be used at the DisplayPort output with an optional MST-hub.
This text is machine translated.
In addition, an HDMI output is present, through which two monitors can be connected, of which only one can be active.
Peripherals
In addition, the mouse and keyboard can be connected via two USB 2.0 ports and hard disks or USB memory via two USB 3.0 ports
Flexible control
The active computer can be selected by mouse, keyboard hotkey, the key on the device or the infrared remote control.
Multi-stream Transport (MST)
With the support of MST (Multi-Stream Transport), several monitors can also be used at the DisplayPort output with an optional MST-hub.
This text is machine translated.
