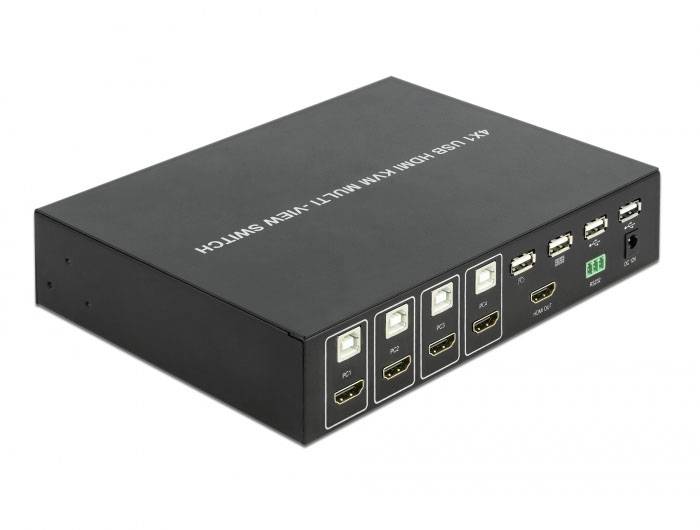

Delock 11488 KVM matrix switcher HDMI Keyboard, Mouse, Remote control 1920 x 1080 Pixel
EAN:
Part number:
Item no:
Delock KVM 4 in 1 multi-view switch 4 x HDMI with USB 2.0
Highlights & Details
- HDMI video port type
- 1,920 x 1,080 pixels
- Black
- 1 pieces(s)
Technical specifications
- Product type
KVM matrix switcher
- No. of switchable PCs
4 pc(s)
- Video via
HDMI
- Video resolution
1920 x 1080 Pixel
- Controller
Keyboard
Mouse
Remote control
- No. of USB 2.0 ports
4 x
- Switch function
Hot key
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
1.50
- Length
21 cm
- Width
160 mm
- Height
44 mm
- Dim
(L x W x H) 21 cm x 160 mm x 44 mm
- Cable design
Round
- Version
Cable
- Depth
210 mm
- Display resolution
1920 x 1080 Pixel
- Frame rate
60 Hz
- No. of HDMI ports
5 x
- Cable use
C13/C14 appliances
- Material
Metal
- Power supply (details)
100-240 V
- UKCA
yes
- AC adapter included
yes
- Remote control included
yes
- AC adapter input current
0.8 A
- Quantity per pack
1 Stück(e)
- DC-in jack
yes
- Bandwidth
2.25 Gbit/s
- Manual
yes
- HDCP
yes
- HDMI in
4
- Number of HDMI outputs
1
- Mounting kit
yes
- AC adapter output current
2 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381656 Delock 11488 KVM matrix switcher HDMI Keyboard, Mouse, Remote control 1920 x 1080 Pixel
Description
Quick guide
This KVM switch by Delock is a practical solution for operating four computers with HDMI output on one HDMI monitor. In addition, via four USB 2.0 Type-A connections mouse, keyboard, printer or USB drive can be connected.
4-in-1 Multiview mode
In the multi-view mode all 4 PCs are shown simultaneously on the screen. It is also possible to use the keyboard and mouse without switching over. When the mouse is moved over one of the desktops, it is activated for input. Alternatively, the sync mode can be switched on, in which all the connected PCs receive the same signals from the input devices.
Flexible control
The active computer can be selected by mouse button, keyboard hotkey, the key on the device or infrared remote control.
Note
KVMs emulates a standard wired keyboard with 104 buttons and a wired generic scroll wheel mouse with 2 or 3 buttons on the respective console ports. Whether a wireless or gaming mouse and keyboard works with KVM switches depends on several factors; in general, most wireless mice and keyboards do not support KVM switches. We recommend using a standard wired mouse and keyboard with our KVM switches.
