Delock 11494 USB 2.0 changeover switch Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

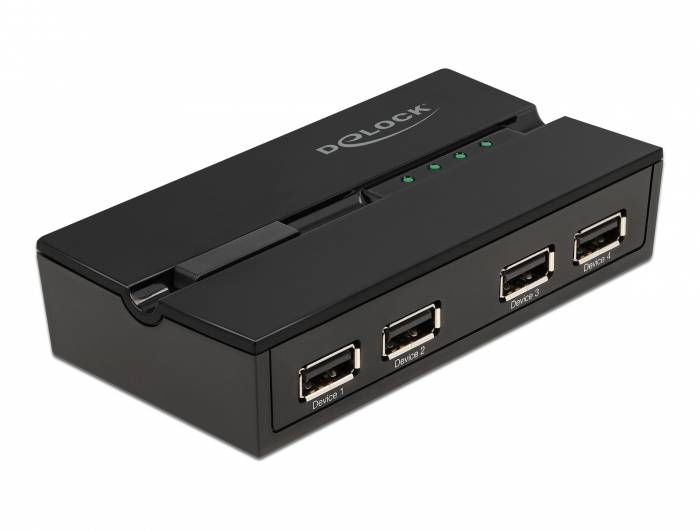

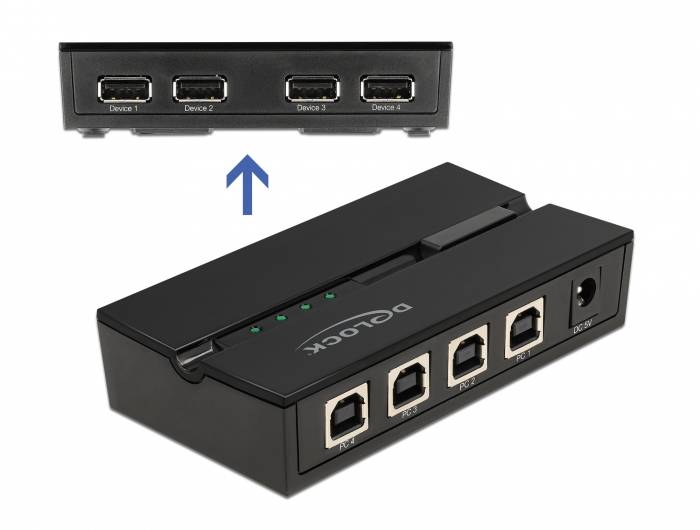

Delock USB 2.0 switch for 4 PC to 4 devices
- 0.48 Gbit/s
- Housing material: Plastic
- Number of USB 2.0 connections 4
- Direct current connection (DC)
- Black
Technical specifications
- Product type
USB 2.0 changeover switch
- No. of switchable PCs
4
- No. of inputs
5 x
- Interfaces (input)
DC jack 3.5 mm
USB
- No. of outputs
4 x
- Interfaces (output)
USB
- Switch function
Key
- Power supply (LOV)
via PSU
- Distributor/switch features
wall mount option
- Factory colour
Black
- Weight
510 g
- Width
106 mm
- Height
25 mm
- Depth
56 mm
- Cable design
Round
- Version
Cable
- Type A
USB
- Type B
USB
- Screen size diagonal (inches)
1 inch
- Keyboard layout
German, QWERTZ
- Cable use
C13/C14 appliances
- Connection type
USB 2.0
- UKCA
yes
- USB 2.0 ports quantity
4
- DC-in jack
yes
- Maximum data transfer rate
0.48 Gbit/s
Documents & Downloads
Datasheet
Datasheet 3382167 Delock 11494 USB 2.0 changeover switch Black
User & Safety Instructions
User & Safety Instructions 3382167 Delock 11494 USB 2.0 changeover switch Black
Description
This USB switch by Delock enables the joint use of four USB 2.0 peripherals with four different computer systems. This avoids the cost of purchasing multiple peripherals or inconvenient exchanging of cables from one system to another.
Memory Function
Port selection works via a button, regardless of whether one of the computer systems is disconnected. The last setting is saved even when the device is shut down and restarted.
Secure attachment.

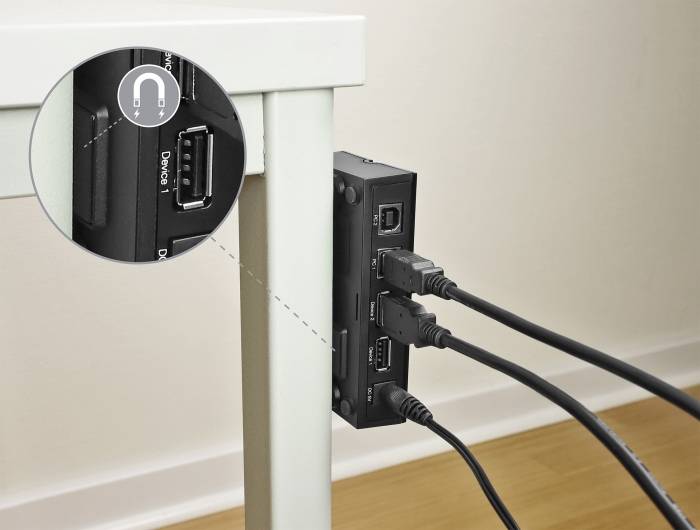

A built-in magnet allows the change-over switch to be fixed to suitable metal surfaces; alternatively, the housing has an option to be wall-mounted using screws.
This text is machine translated.
Memory Function
Port selection works via a button, regardless of whether one of the computer systems is disconnected. The last setting is saved even when the device is shut down and restarted.
Secure attachment.
A built-in magnet allows the change-over switch to be fixed to suitable metal surfaces; alternatively, the housing has an option to be wall-mounted using screws.
This text is machine translated.
