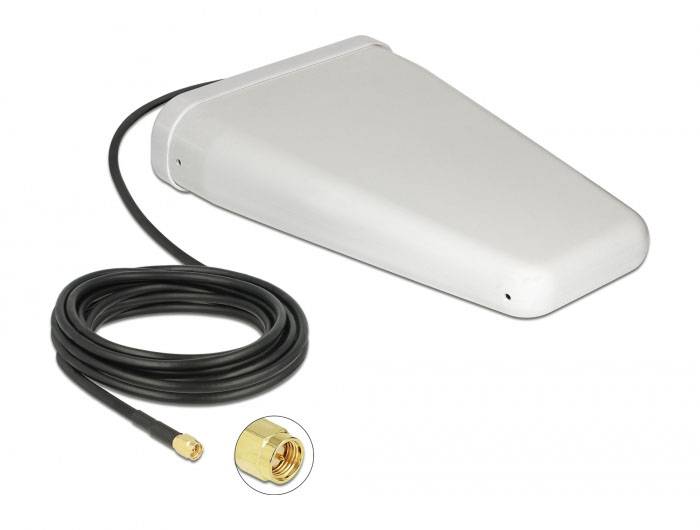

Delock 12001 12001 LTE antenna 9 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
LTE antenna
- Gain
9 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
SMA plug
- Weight
880 g
- No. of ports
1
- Polarisation
Vertical
- Width
100 mm
- Height
50 mm
- Length
250 cm
- Cable design
Round
- Cable length
0 cm
- Version
Cable
- Factory colour
White
- Keyboard layout
German, QWERTZ
- Cable use
C13/C14 appliances
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- UKCA
yes
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3382092 Delock 12001 12001 LTE antenna 9 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382092 Delock 12001 12001 LTE antenna 9 dBi 2.4 GHz
Description

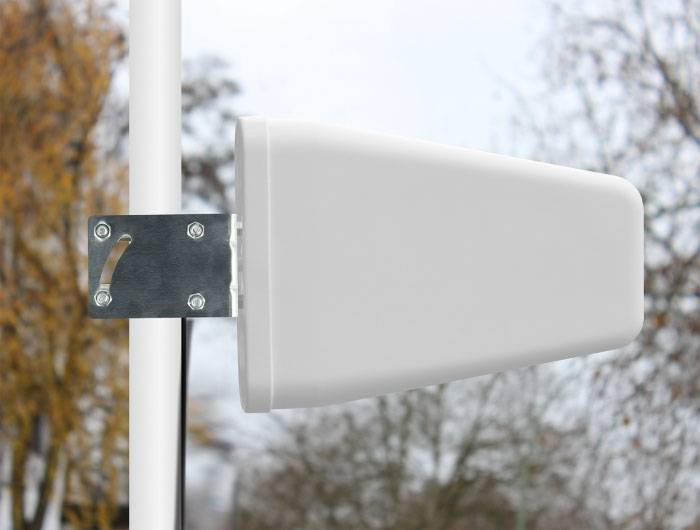

This Delock LTE antenna allows multiple LTE tapes to be used indoors and outdoors. It is completely GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave compatibility.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range 698 - 960 MHz, 1710 - 2700 MHz
- GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
- Antenna gain 7 - 9 dBi
- Polarisation: Vertical
- 90° horizontal angle of radiation
- Vertical angle of radiation 60°
- Impedance: 50 ohm
- VSWR: ≤2.0
- Operating temperature: -40 °C ~ 60 °C
- Case material: ABS UV-protected
- Colour: white
- Dim. (LxWxH): Approx. 290 x 210 x 65 mm
- Cable type: Coaxial
- Cable type: RG-58
- Cable color: Black
- Cable attenuation: 0.5 dB @ 800 MHz per meter
- Cable diameter: Approx. 5 mm
- Cable length incl. connections: Approx. 5 m.
System requirements
- Device with a free SMA socket
